Names of Parts
10 SmartLab: Automated Multipurpose X-ray Diffractometer
1. Main panel Panel used to start and stop SmartLab.
2. Operating panel Panel used to turn the internal light on/off.
3. Door
This door is opened to change samples and
optical devices.
4. X-ray warning lamp Lights when x-rays are generated.
5. Door-lock button Lock/Unlock the door.

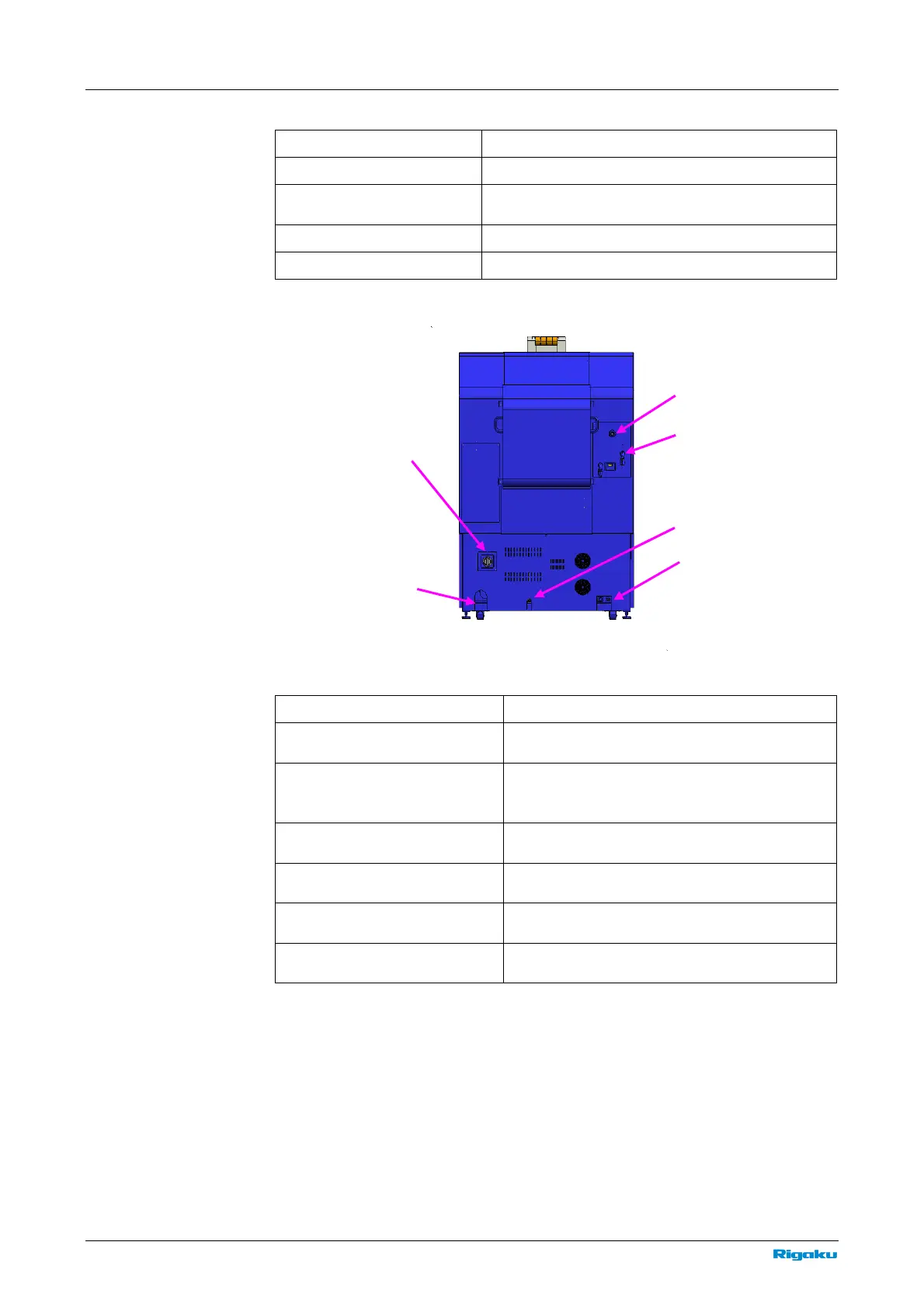

Rear view of SmartLab
6. Power input connector External power supply connects here.
7. Connector for control PC
The LAN cables used to control SmartLab
connect here.
8. Connectors for rotary pump
The power supply for the rotary pump
connects here.
(2080A211/2080A411)
9. Connectors for water
circulation pump
The water circulation pump (short-cut valve)
control connects here.
10. Pipes for cooling water
The cooling water pipe of the x-ray generator
connects here.
11. Pipes for rotary pump
The rotary pump pipe connect here.
(2080A211/2080A411)
12. Circuit breaker
Circuit breaker for the power supply to the
main unit.
8. 9.
10.
6.
12.
7.
11.
