Goniometer
SmartLab: Automated Multipurpose X-ray Diffractometer 11

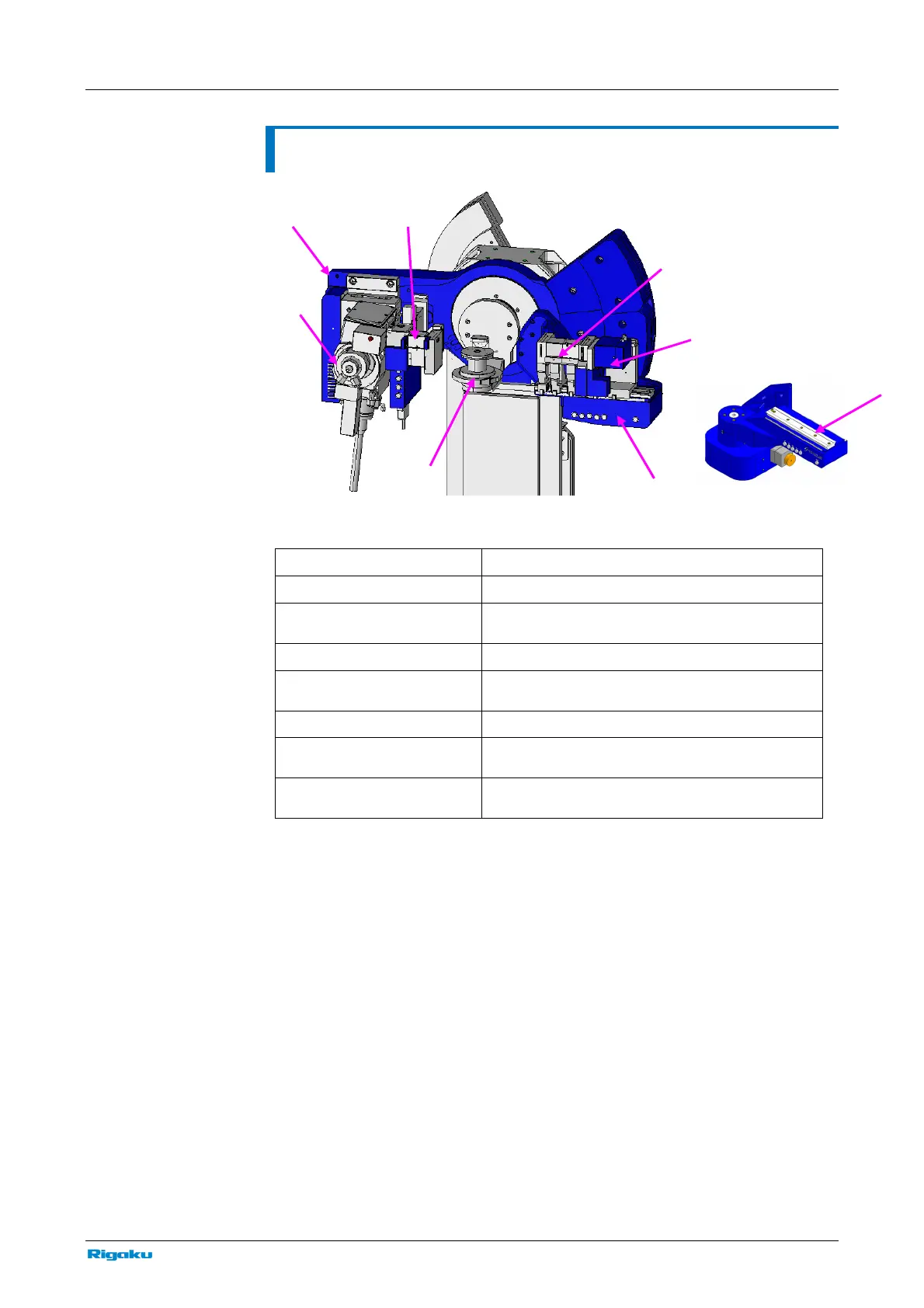

Goniometer
Goniometer
1. Theta_s arm Arm for controlling x-ray beam incident angle.
2. X-ray tube
X-ray generating device.
3. Incident optics
Optical device for achieving desired incident
x-ray conditions.
4. Theta_d arm Arm for controlling the x-ray detector angle.
5. Receiving optics
Optical device for achieving desired x-ray
receiving conditions.
6. Detector X-ray detector.
7. Sample stage
Adjusts the position and orientation of the
sample to be measured.
8. In-plane arm
Theta_d arm used for in-plane measurements.
(2080B212)
1.
2.
3.
4.
5.
6.
7.
8
