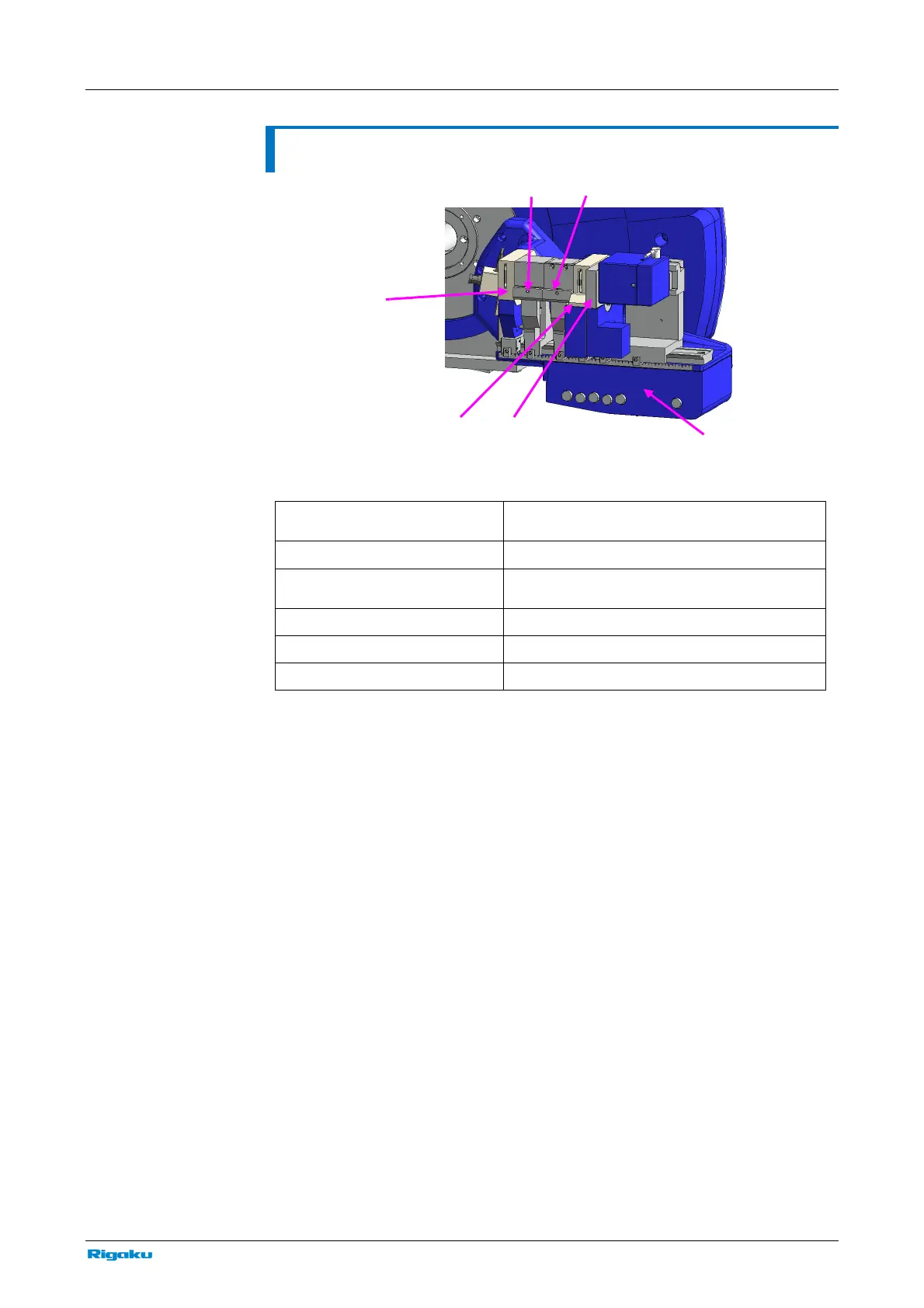

Theta_d arm
SmartLab: Automated Multipurpose X-ray Diffractometer 15
Theta_d arm
Theta_d arm
1. Receiving connector box
The control cables for the optical devices
connect here.
2. Receiving slit box # 1 Variable slit on receiving side.
3. Receiving optics unit # 1
Receiving optical devices (analyzer) are
installed here.
4. Receiving optics unit # 2 Soller slits, etc. are installed here
5. Receiving slit box # 2 Variable slit on receiving side.
6. Attenuator Adjusts x-ray intensity.
