Incident optics unit (standard incident optics unit)
SmartLab: Automated Multipurpose X-ray Diffractometer 33
2-bounce monochromator (option)
This optical device produces a monochromatized x-ray beam using a 2-bounce
channel cut crystal.
Fine alignment of the channel cut crystal are performed from SmartLab
Guidance.
A dedicated parallel slit can be installed after the channel cut crystal.
2-bounce monochromator

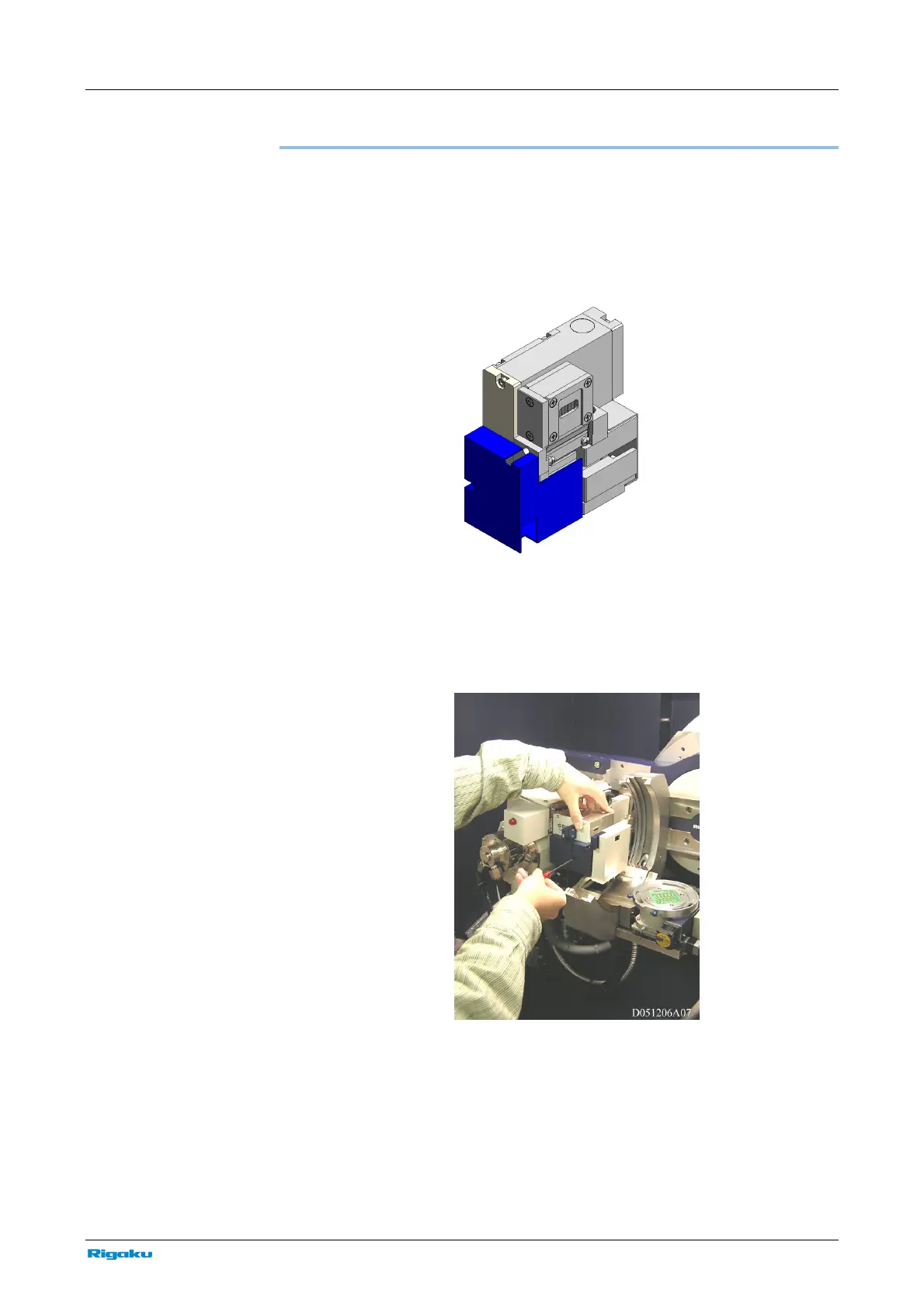

1 Attach the 2-bounce monochromator to the CBO unit by sliding it
down from the top section of the CBO unit. Secure it in place with the
Allen wrench provided.
