Optics
46 SmartLab: Automated Multipurpose X-ray Diffractometer
Receiving slit box # 1
This slit box is installed on the sample side of the theta_d arm.

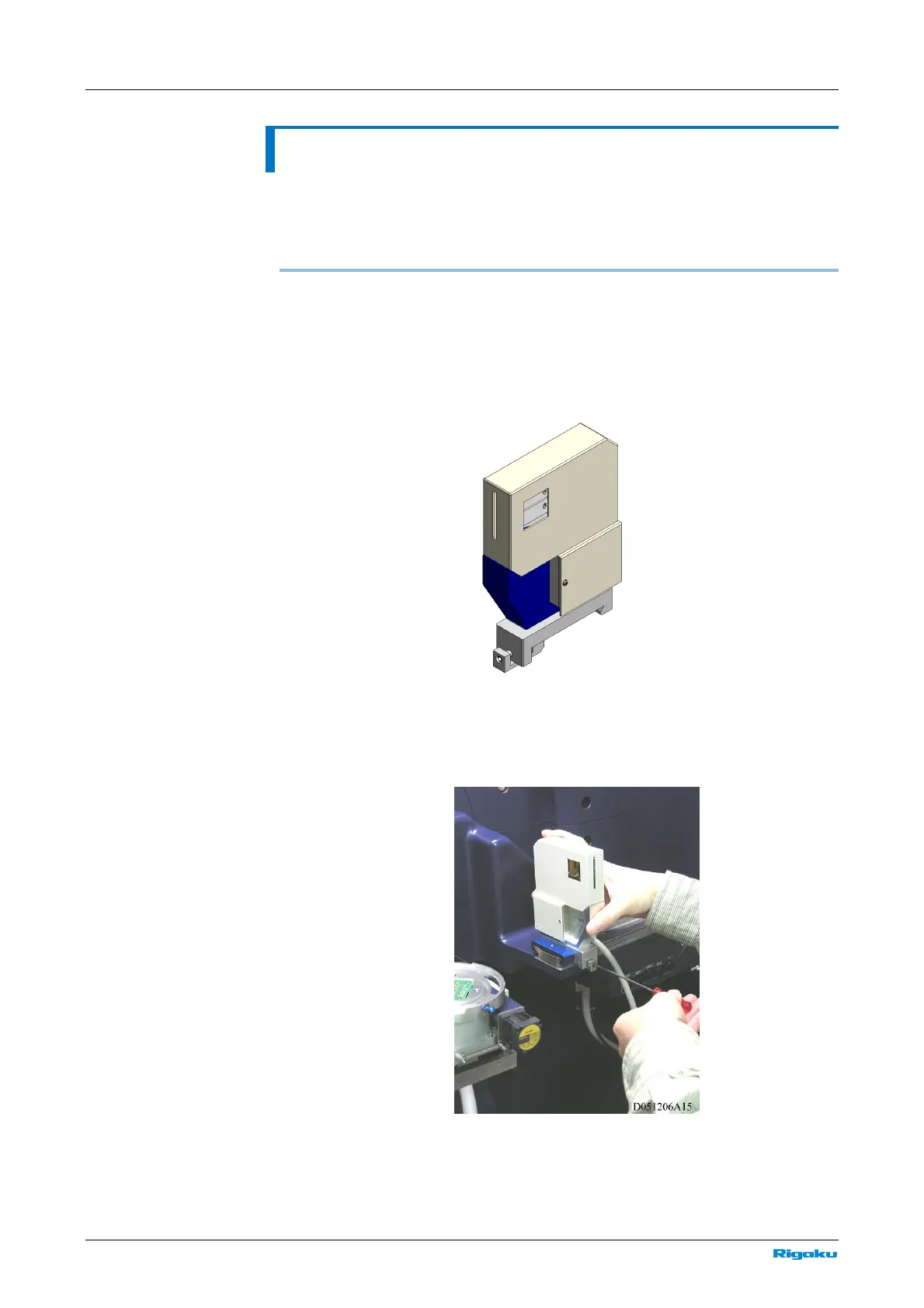

Standard receiving slit box # 1
For para-focusing optics, this slit box controls the anti-scatter slit width to
reduce the level of background scatter from the sample. For parallel beam optics,
it functions as the first slit in a double-slit receiving system.
The slit width can be controlled from SmartLab Guidance. A Kβ filter can be
inserted to remove Kβ x-rays from characteristic x-rays.
Standard receiving slit box # 1
1 Attach the standard receiving slit box # 1 to the rail of the theta_d arm.
Secure it in place with the Allen wrench provided.
