Sample Stage
82 SmartLab: Automated Multipurpose X-ray Diffractometer
For vertical transmission geometry (option: 2455H105)
Measurements in the vertical transmission geometry can be performed when the
convergent beam optics using the CBO-E unit is available. The transmission film
sample holder (2455E463) is also necessary for this measurement.
Loosen the left lever and rotate the turntable 180 degrees clockwise for the
vertical transmission geometry.
Switch to the vertical transmission geometry

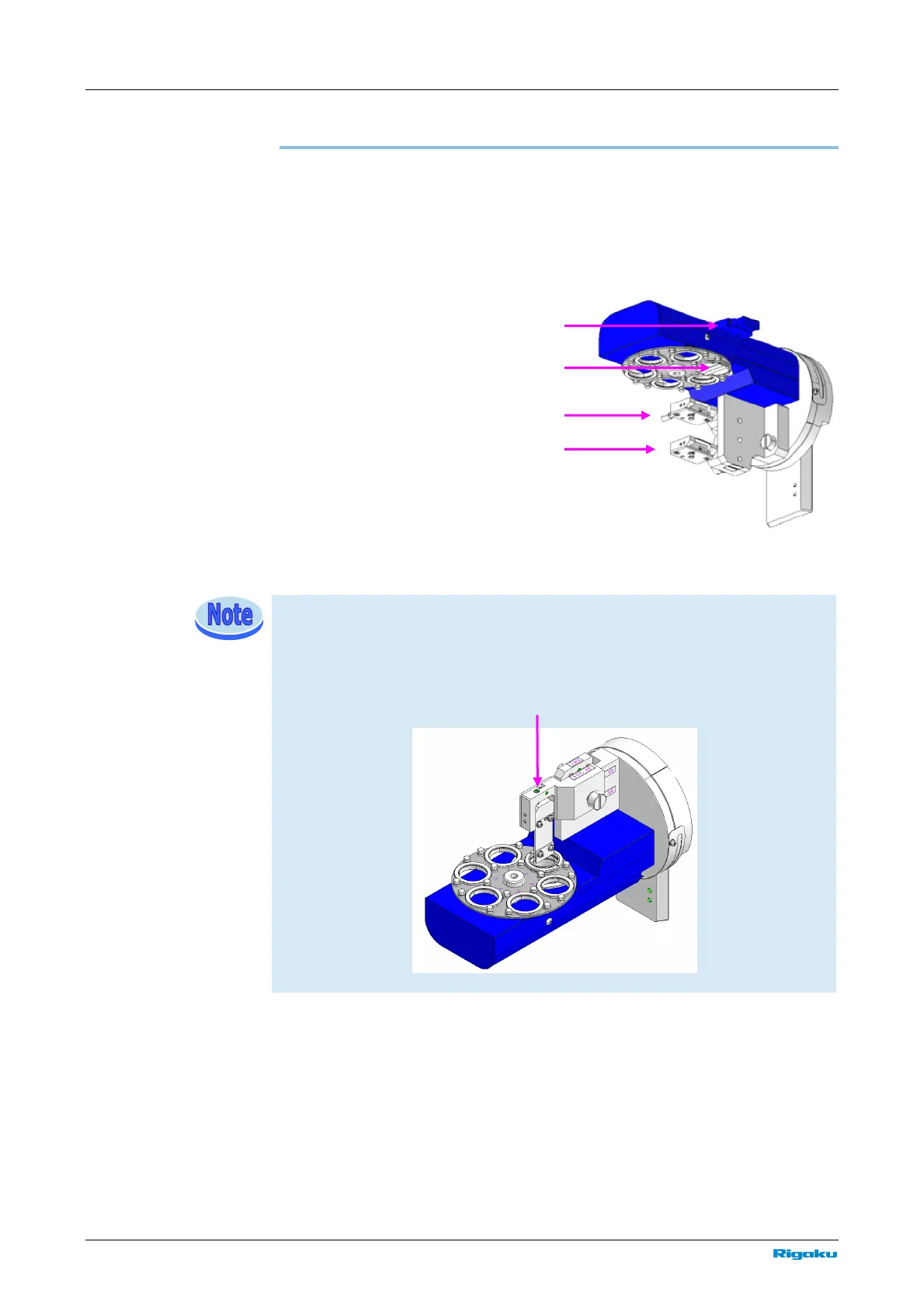

When measurements are performed in the reflection geometry using a knife edge,
install the reflection knife edge (REF. KE) to the extended base for ASC as shown
below.
Reflection knife edge (REF. KE)
Incident knife edge (INC. KE）
Receiving knife edge (REC. KE)
Direct beam stopper (DBS)
Center slit for ASC
