Names of Parts
14 SmartLab: Automated Multipurpose X-ray Diffractometer

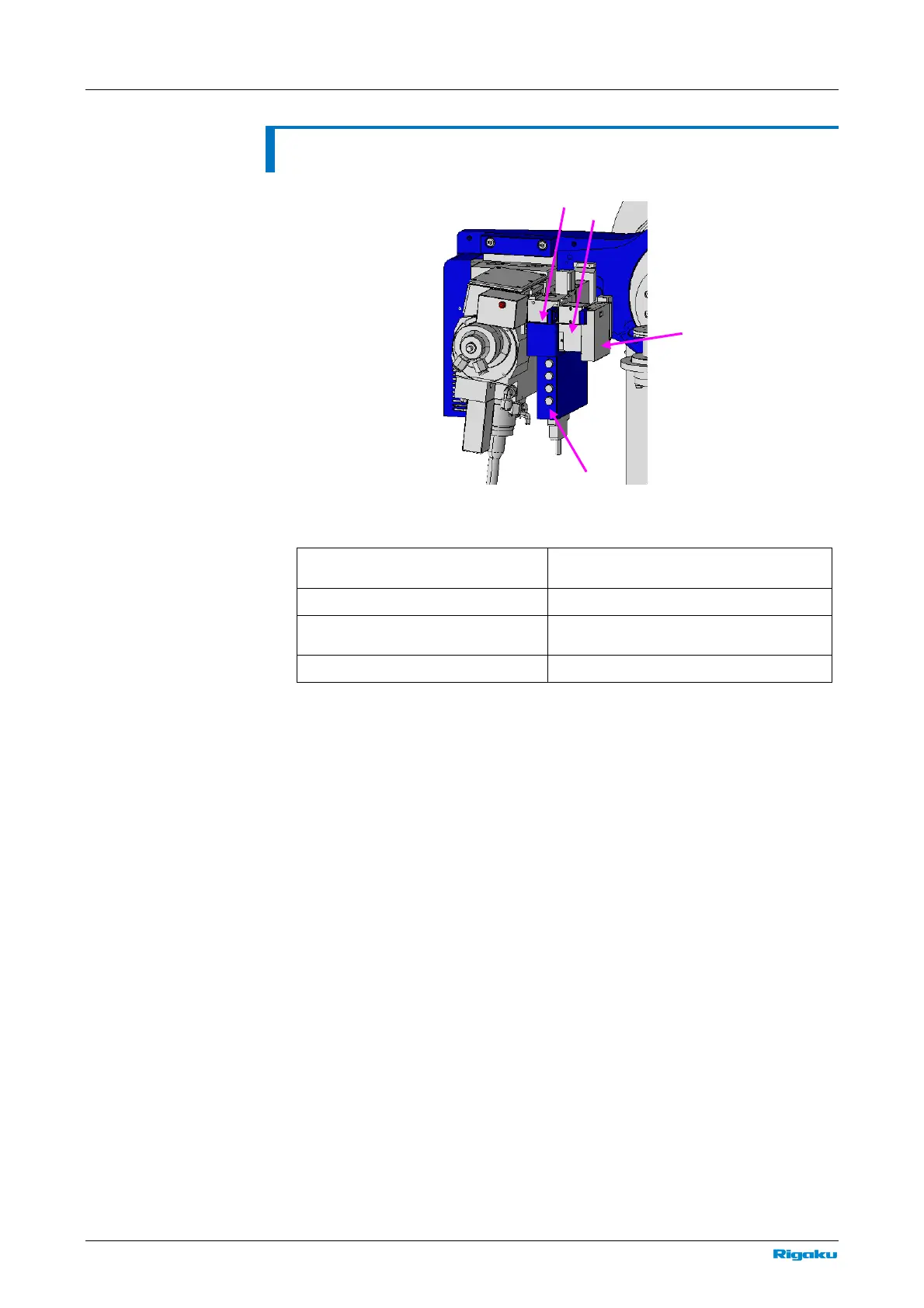

Theta_s arm
Theta_s arm
1. Incident connector box
The control cable of the optical device
connects here.
2. Cross beam optics (CBO) unit Optics unit for switching optics.
3. Incident optics unit
Soller units, monochromators, etc. are
installed here
4. Incident slit box Variable slit on the incident side.
1.
2.
3.
4.
To Next Page
