2-bounce analyzer (option)
The 2-bounce channel cut analyzer provides increased resolution on the 2-theta
axis by only allowing diffracted x-rays that satisfy the diffraction condition for
the analyzer crystal to enter the detector.
Fine alignment of the channel cut crystal can be performed from SmartLab
Guidance.

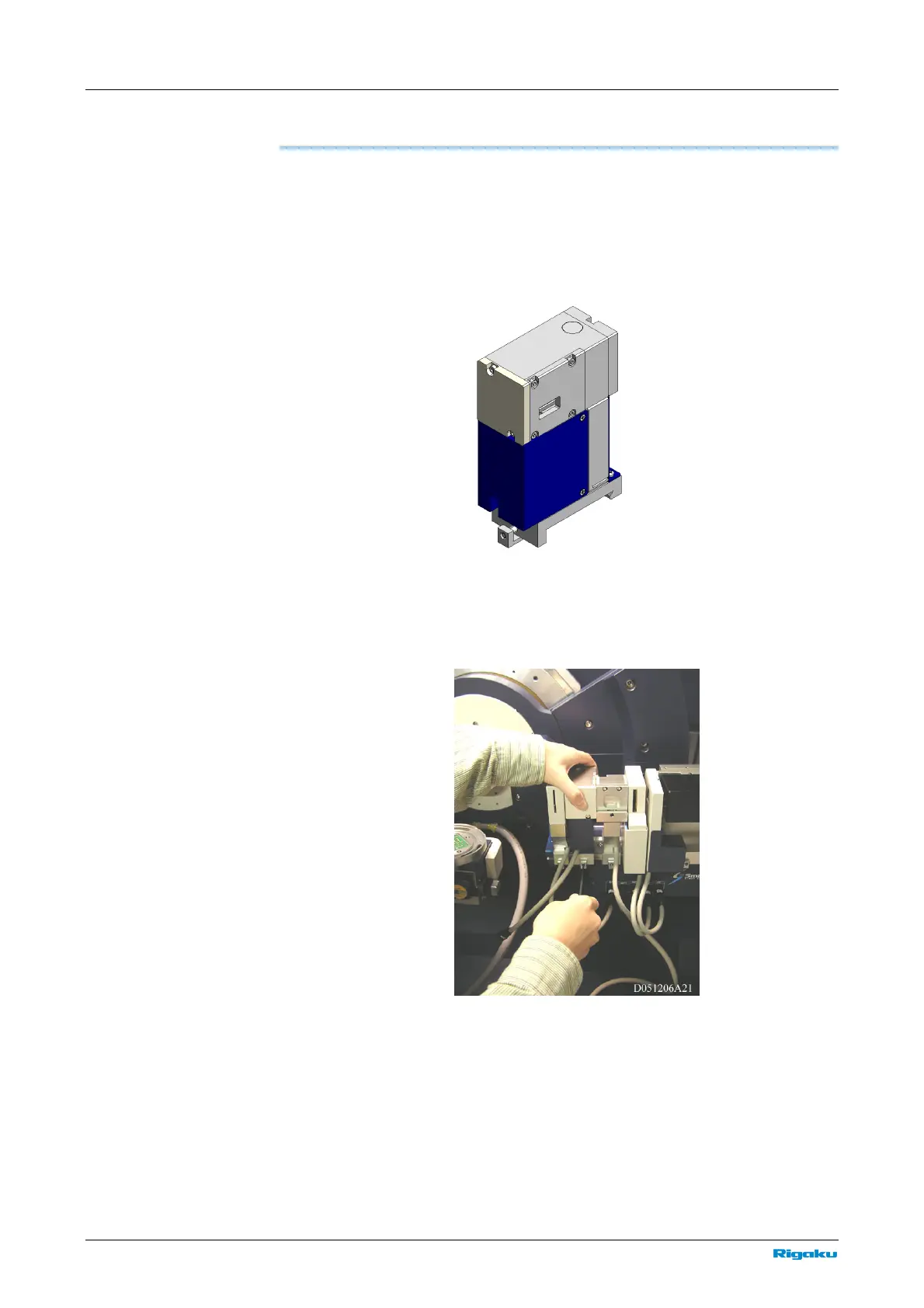

2-bounce analyzer
1 Attach the 2-bounce analyzer to the theta_d arm. Secure it in place
with the Allen wrench provided.
