Receiving optics unit # 1
SmartLab: Automated Multipurpose X-ray Diffractometer 49
Receiving optics unit # 1
This unit attaches after receiving slit box # 1. A parallel slit analyzer or 2-bounce
crystal analyzer can be installed on receiving optics unit # 1.

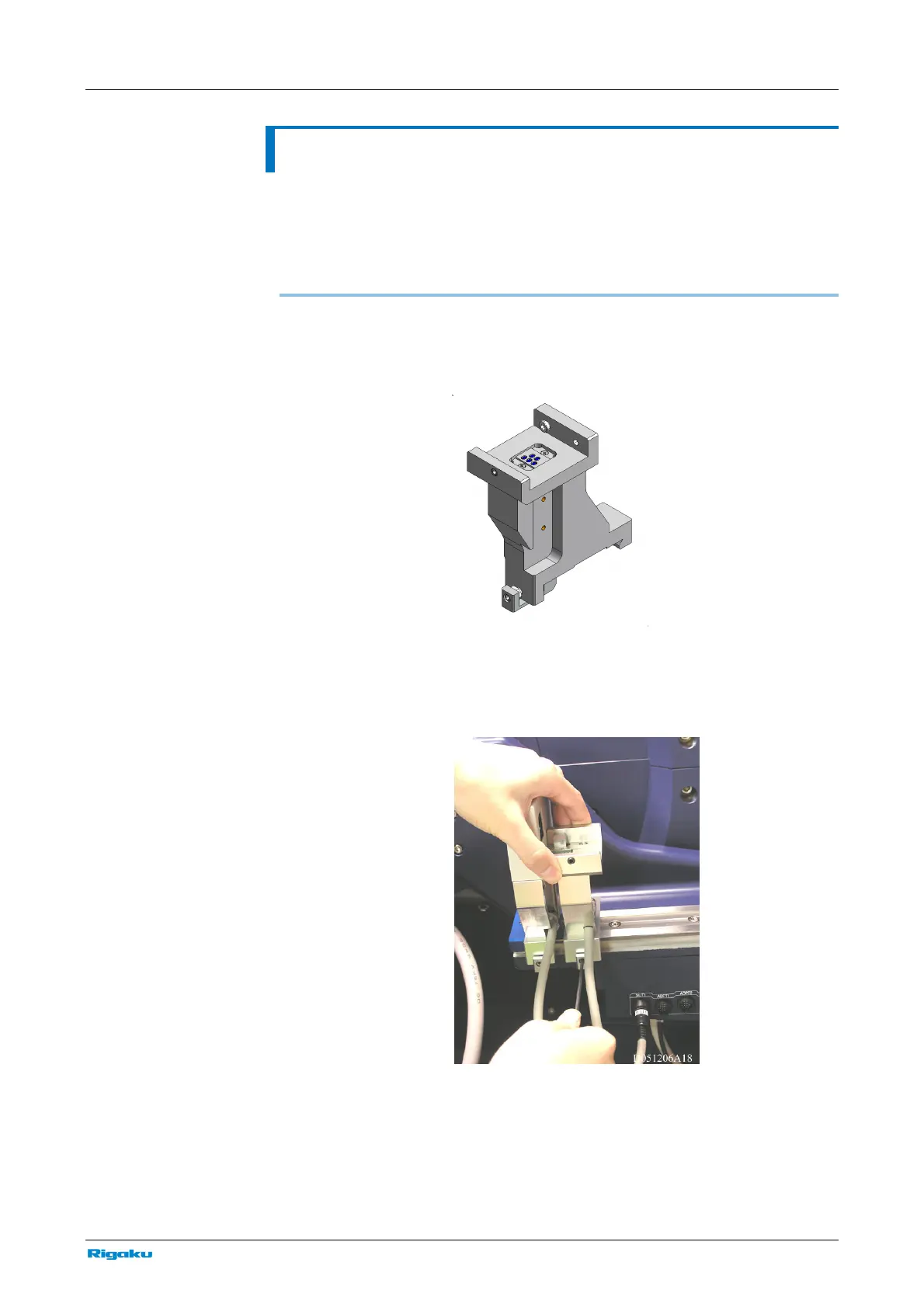

Receiving optical device adaptor (ROD adaptor)
This adaptor is used to install a parallel slit analyzer (PSA). A parallel slit
analyzer is installed so that the plates inside are mounted horizontally thereby
providing angular resolution for the theta_d axis.
Receiving optical device adaptor
1 Attach the receiving optical device adaptor to the rail of the theta_d
arm. Secure it in place with the Allen wrench provided.
