X-ray tube
SmartLab: Automated Multipurpose X-ray Diffractometer 13
X-ray tube

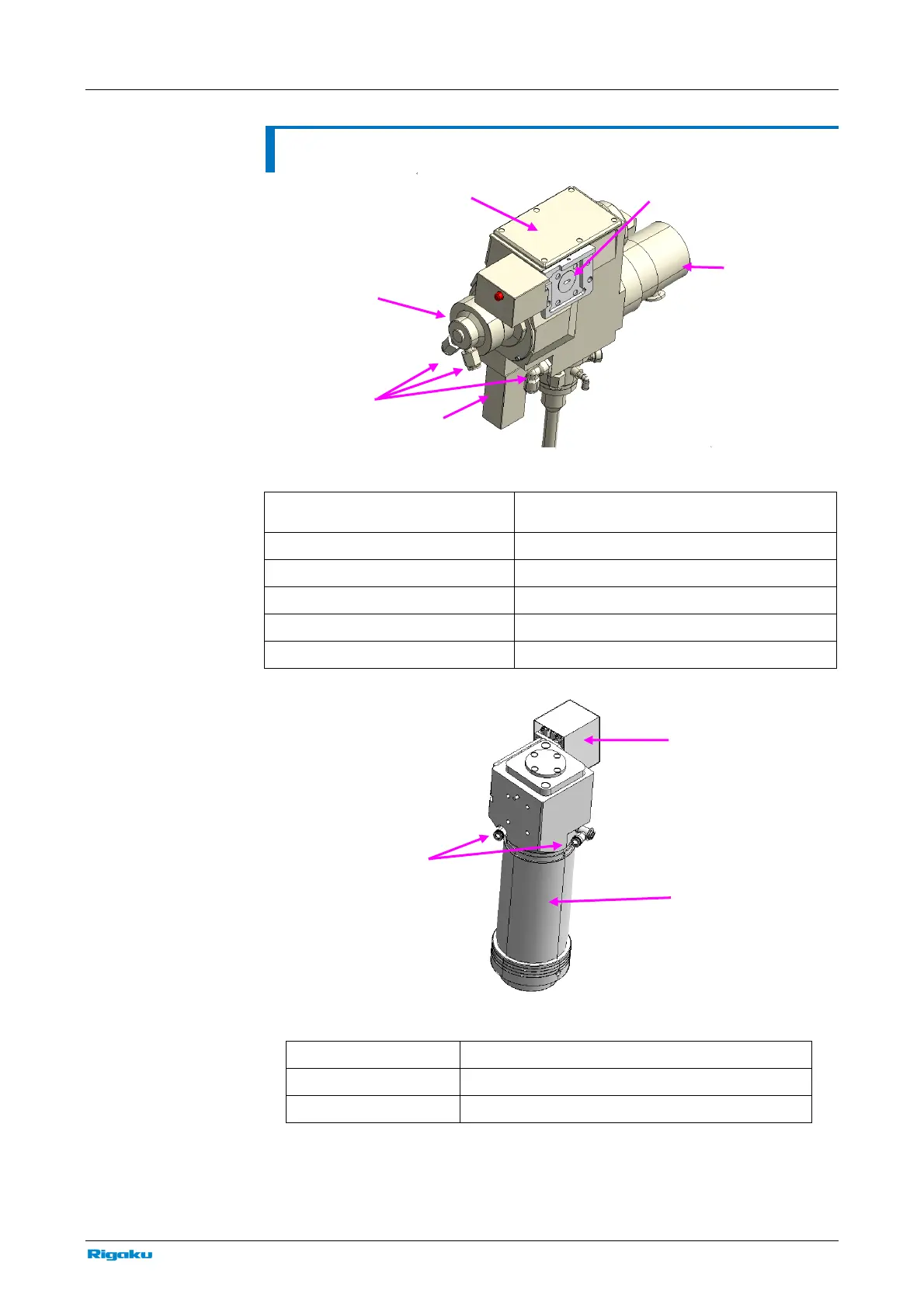

Rotating anode x-ray tube (2080A211/2080A411)
1. Cooling water pipe
Connect the x-ray generator cooling water
pipe.
2. Rotary target X-ray generating source.
3. Shutter Controls x-ray emissions.
4. Filament replacement window Window for replacing the filament.
5. Ion gauge Measures the vacuum in the x-ray generator.
6. Turbo molecular pump (TMP) Vacuates the x-ray generator.
Sealed x-ray tube (2080B211/2080B212/2080B411)
1. Cooling water pipe Connect the x-ray generator cooling water pipe.
2. X-ray tube X-ray generating source.
3. Shutter Controls x-ray emissions.
1.
2.
3.
5.
1.
2.
4. 3.
6.
