Sample Plates
88 SmartLab: Automated Multipurpose X-ray Diffractometer

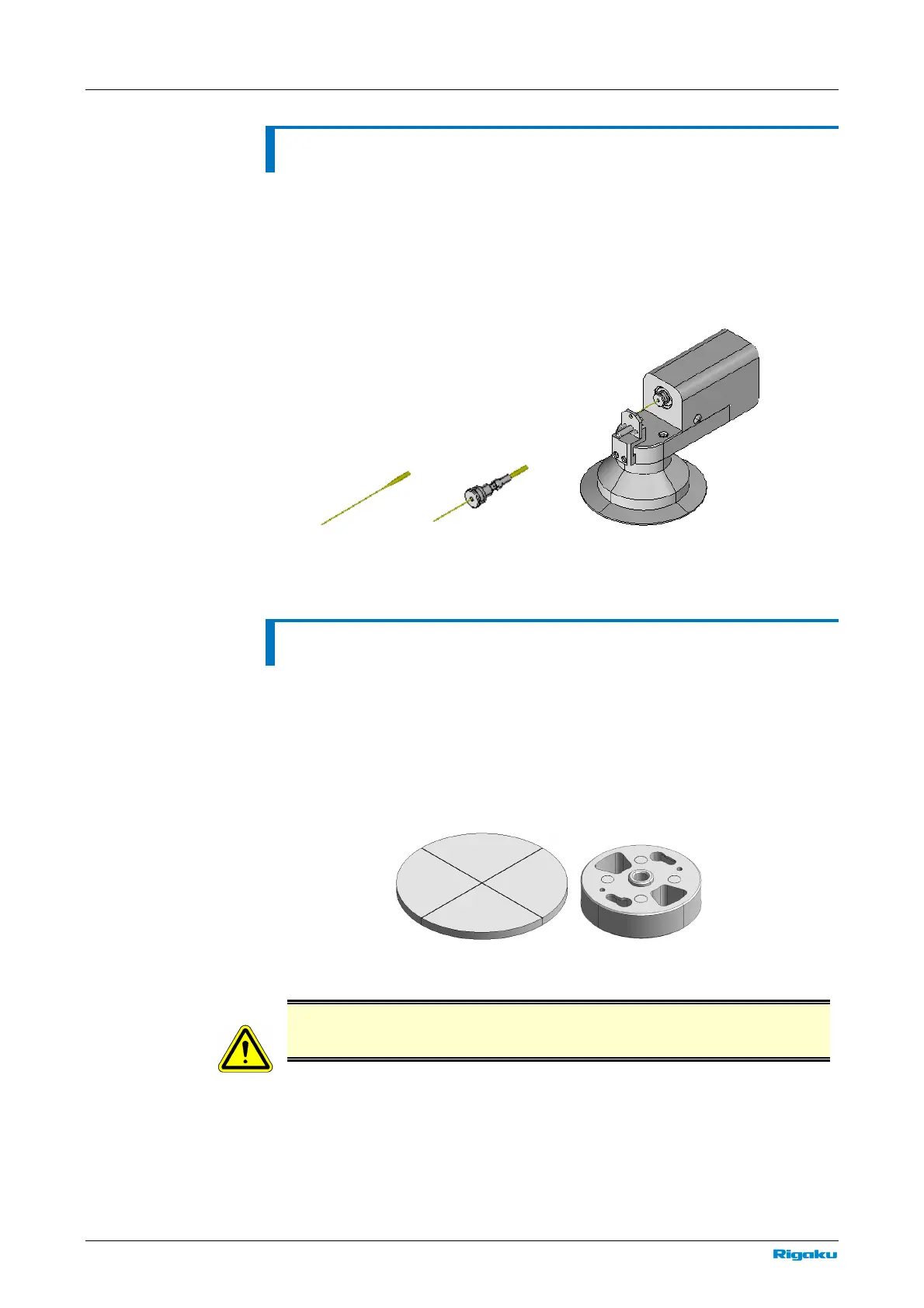

Capillary holder (option: 2430C101)
The capillary holder is used to mount the capillary sample onto the capillary spin
attachment. The capillary sample is spanned with the rotation (ω
c
) axis during
measurements. Attach the capillary sample to the capillary holder and mount the
holder to the capillary spin attachment. The prepared sizes of the holder are φ1.0
mm, φ0.7 mm, etc. Use the appropriate size for the capillary to be used.
Capillary spin attachment and capillary holder
Wafer sample plates and sample spacers
A wafer sample plate is used in measurements of wafer-shaped samples. A
sample spacer is placed on the attachment. The wafer sample plate is placed on
the sample spacer. A sample is placed on top of the wafer sample plate. Wafer
sample plates and sample spacers are available for 4-inch, 6-inch, and 8-inch
samples.
Wafer sample plate and sample spacer
CAUTION
Placing a sample larger than the sample plate may damage the sample during
measurement.
