Optics
42 SmartLab: Automated Multipurpose X-ray Diffractometer

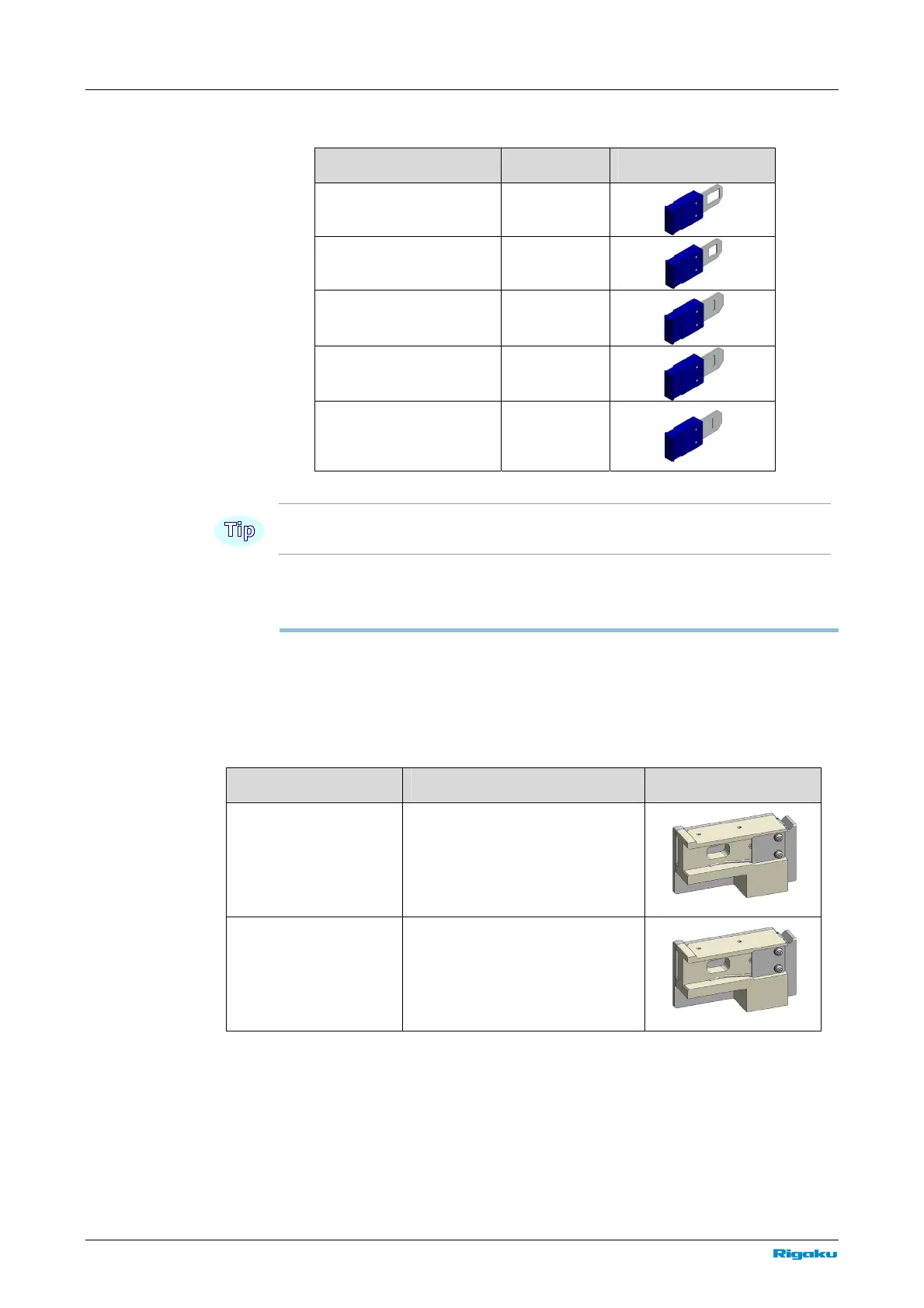

Table Length-limiting slits
Length of limiting slit Abbreviation Illustration
15 mm 15
10 mm 10
5 mm 5
2 mm 2
0.5 mm
micro area optics
(option: 2680G111)
0.5
The type of inserted length-limiting slit can be identified from SmartLab Guidance.
Collimator holder (option)
Some types of pinhole collimators can be installed for micro area measurements.
Kβ filter for Cu can also be installed (optional).
Table Collimator holder
Name Usage Illustration
PB collimator holder
(2431D201)
Used in combination with
multilayer mirror or CBO-f unit.
BB collimator holder
(2431D101)
Used in point focus optics.
To Next Page
