Incident slit box
This variable slit box is installed on the Zs axis on the theta_s arm.
Standard incident slit box
This slit box adjusts the slit width to control the beam divergence angle (for the
para-focusing method) or the beam width (for the parallel beam method). For
small-angle scattering measurements, this slit guards against parasitic scattering.
A length-limiting slit can also be inserted to limit the beam length along the
longitudinal axis.

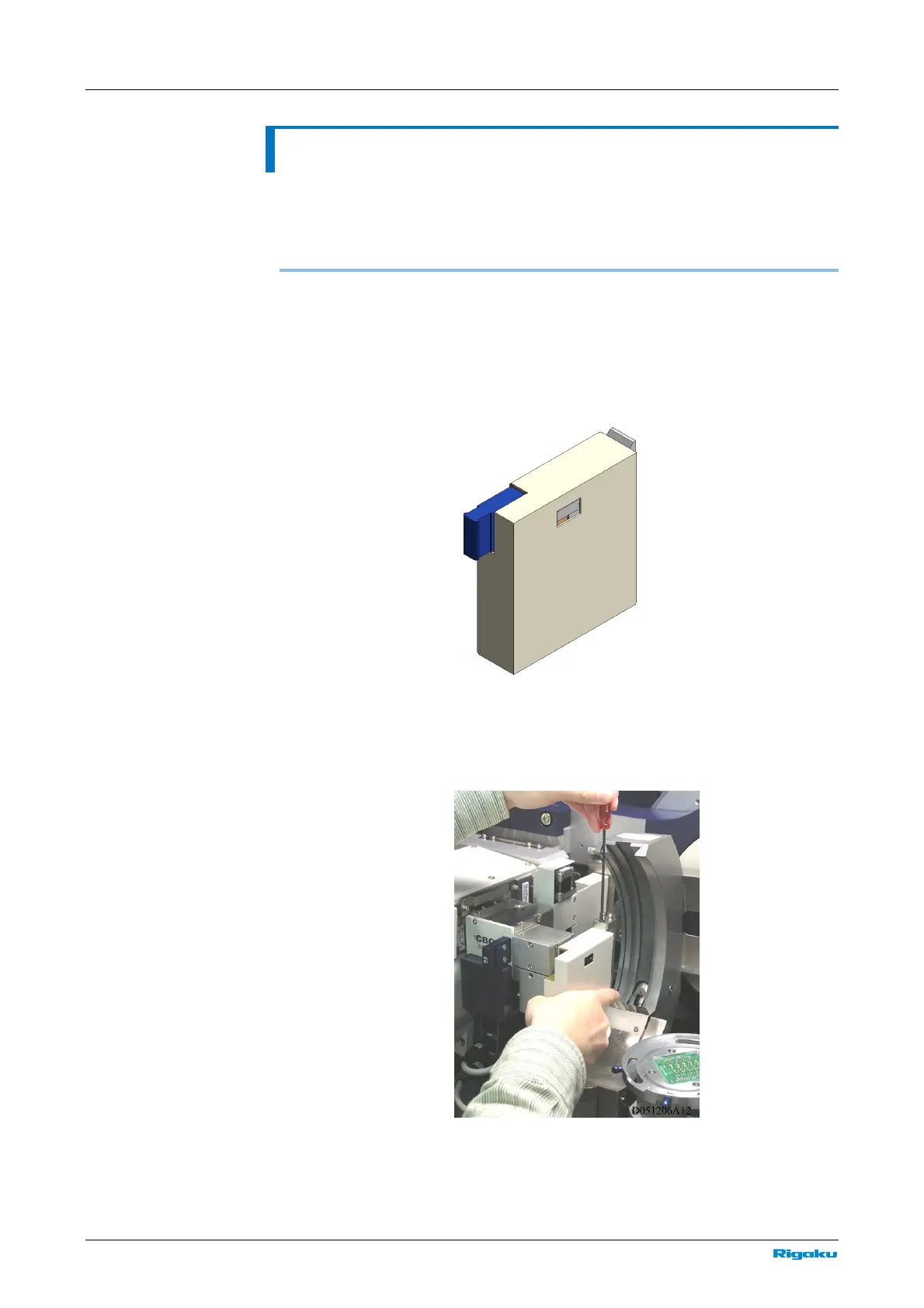

Standard incident slit box
1 Attach the standard incident slit box to the Zs axis. Secure it in place
with the Allen wrench provided.
