Receiving slit box # 2
SmartLab: Automated Multipurpose X-ray Diffractometer 57
Receiving slit box # 2

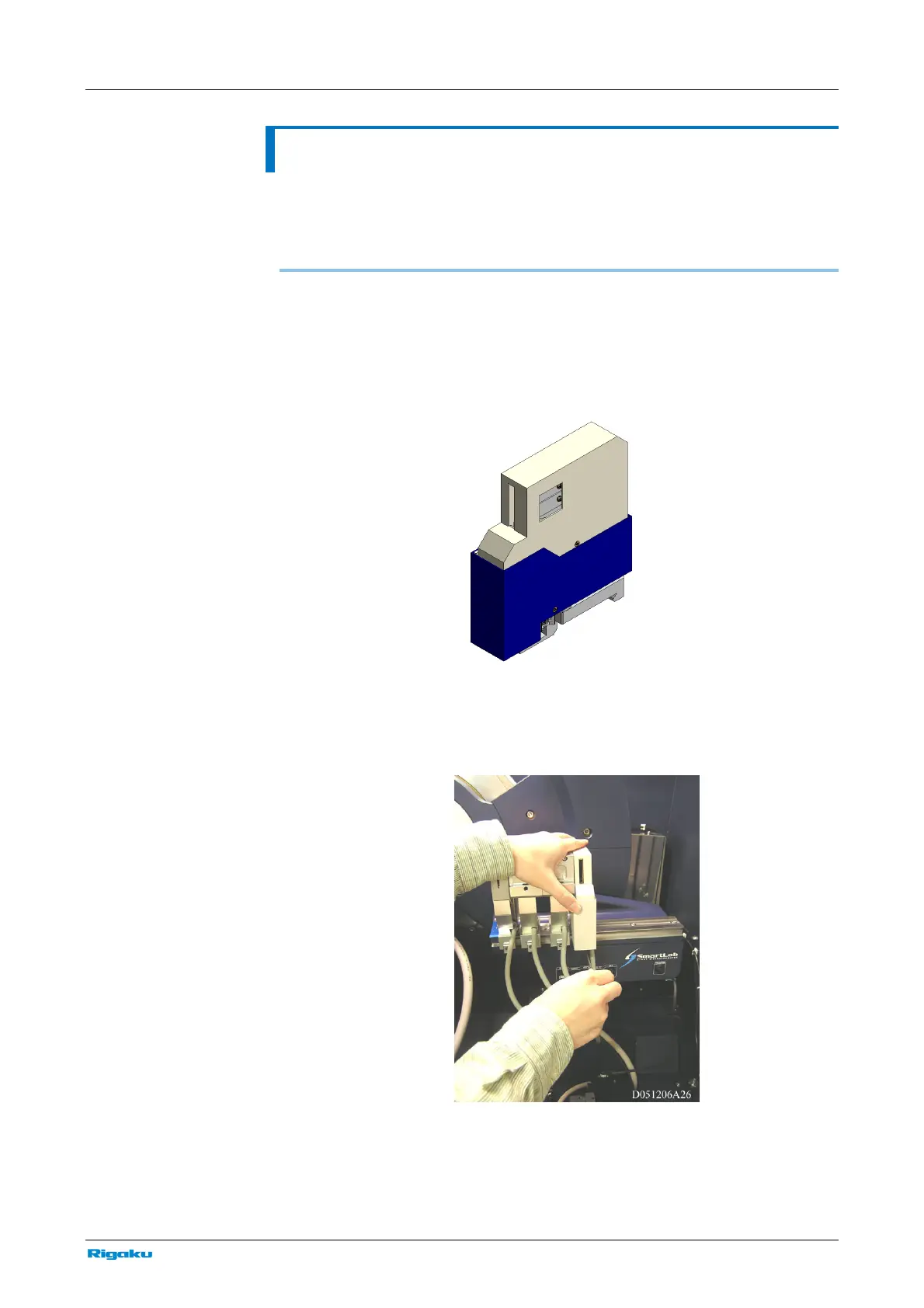

This slit box is installed in from of the detector on the theta_d arm.
Standard receiving slit box # 2
The standard receiving slit box # 2 contains the variable receiving slit and
controls measurement resolution in the para-focusing and double-slit receiving
configurations.
If a double-slit receiving system is used, it will function as the second slit.
Slit width and vertical position can be controlled from SmartLab Guidance.
Standard receiving slit box # 2
1 Attach the standard receiving slit box # 2 to the rail of the theta_d arm.
Secure it in place with the Allen wrench provided.
