Rigaku SmartLab - Optics; CBO Unit (for Cu Target)

SmartLab: Automated Multipurpose X-ray Diffractometer 25
Optics
This section introduces the names of parts and describes how they are installed. For
information on how to use the Kα
1
unit, refer to the instruction manual of the Kα
1
unit.
CBO unit (for Cu target)
The CBO unit is designed for characteristic x-rays (Kα x-rays) generated by the
standard Cu target. Changing selection slits allows switching between divergent
and parallel/convergent beams using a multilayer mirror. A parallel beam can
also be converted into a narrow beam for small-angle scattering measurements
or a small beam for micro area measurements.
Fine adjustments of the multilayer mirror can be performed from SmartLab
Guidance.

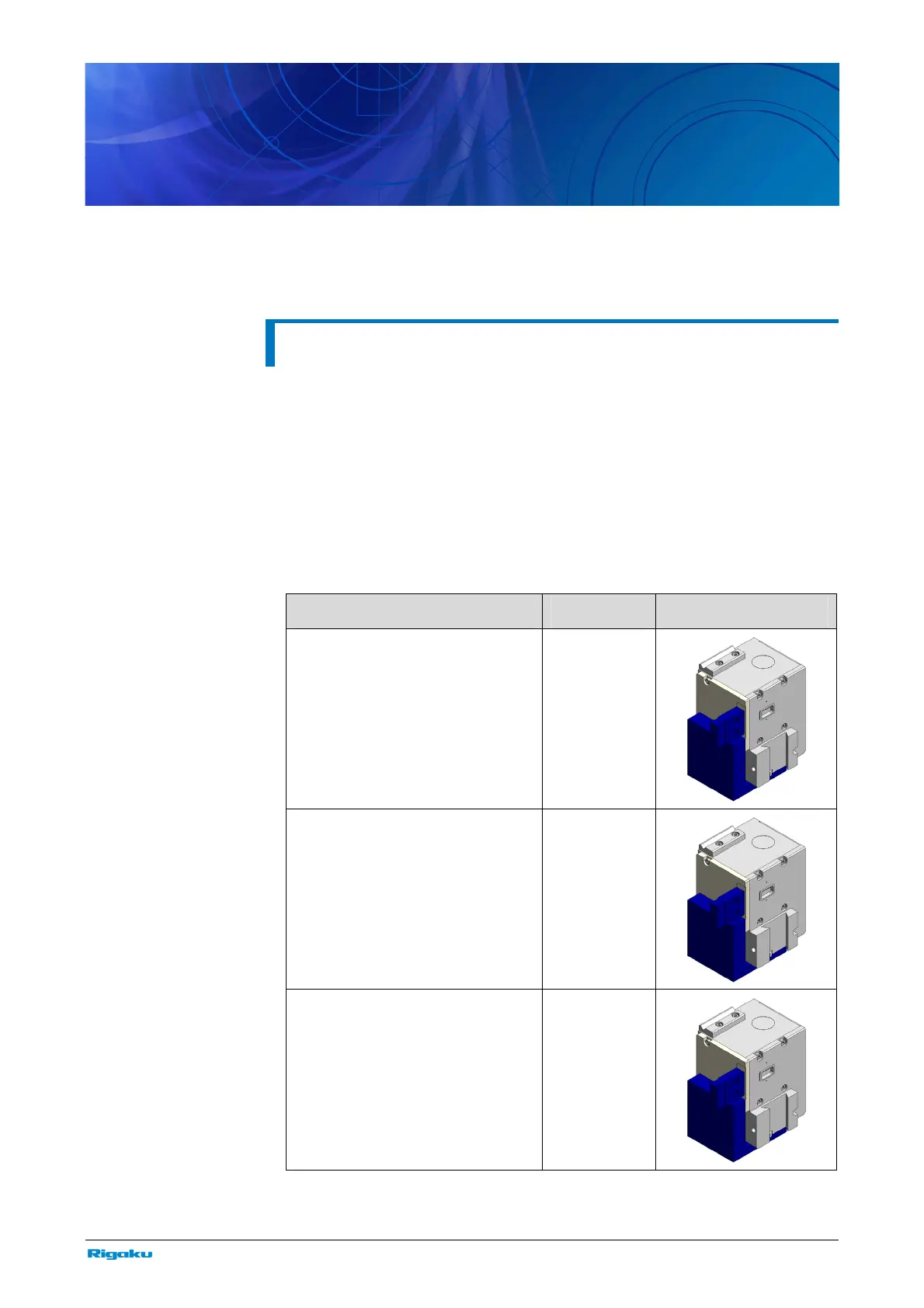

Table CBO unit
Unit name Abbreviation Illustration
CBO unit (for Cu target only)
Applicable to Cu wavelength, and
enables the switching between
divergent and parallel beams.
CBO（Cu）
CBO unit (for Cu and Co targets)
(optional: 9999)
Applicable to both Cu and Co
wavelengths, and enables the
switching between divergent and
parallel beams.
CBO(Cu/Co)
CBO-E unit (for Cu target only)
(optional: 9999)
Applicable to Cu wavelength, and
enables the switching between
divergent and convergent beams.
CBO-E
