Optics

26 SmartLab: Automated Multipurpose X-ray Diffractometer

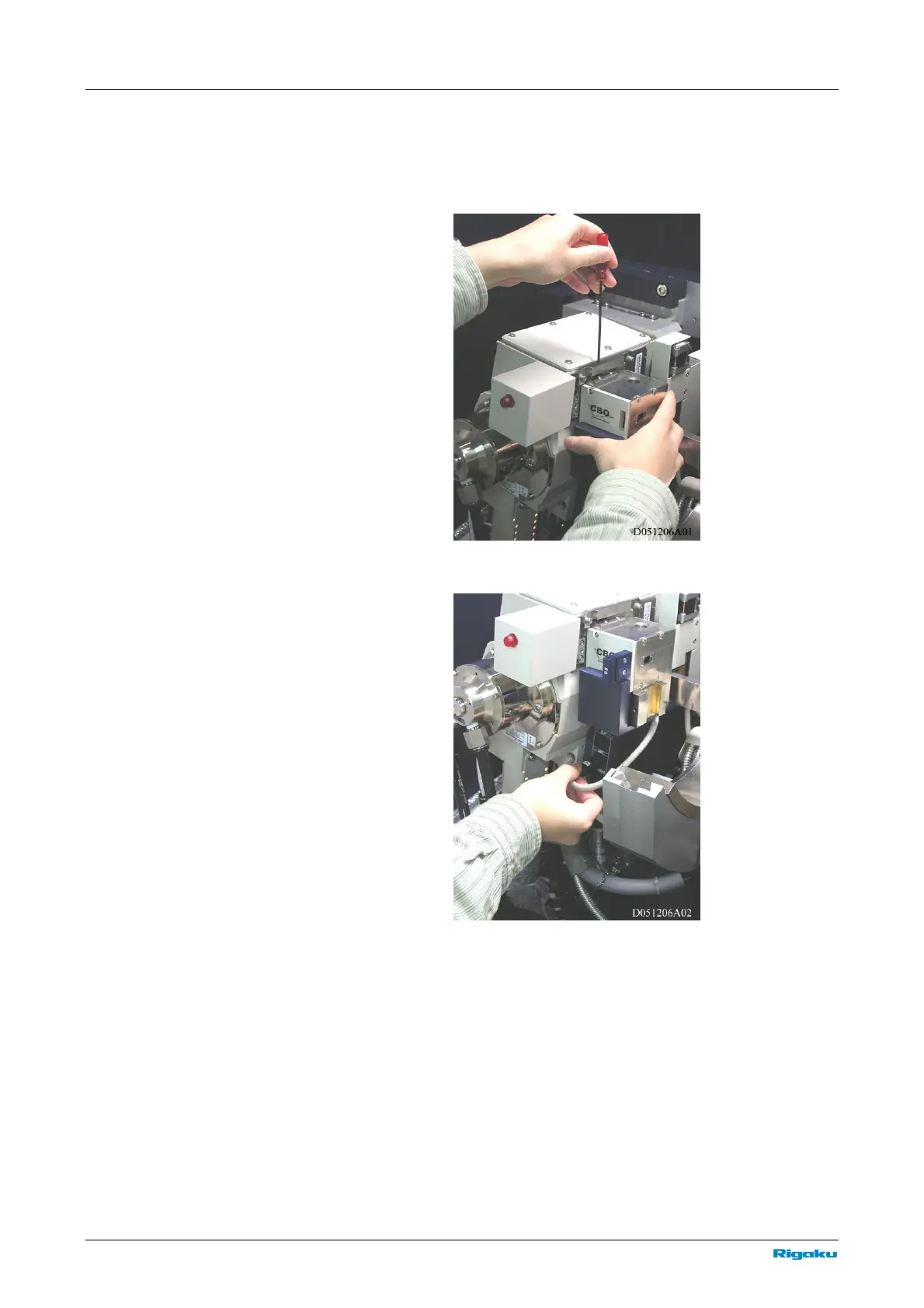

1 Attach the CBO unit to the shutter. Press the CBO unit against the

surface in the back and secure the unit in place with the Allen wrench

provided.

2 Insert the cable into the CBO connector of the incident connector box.
