Incident slit box
SmartLab: Automated Multipurpose X-ray Diffractometer 45

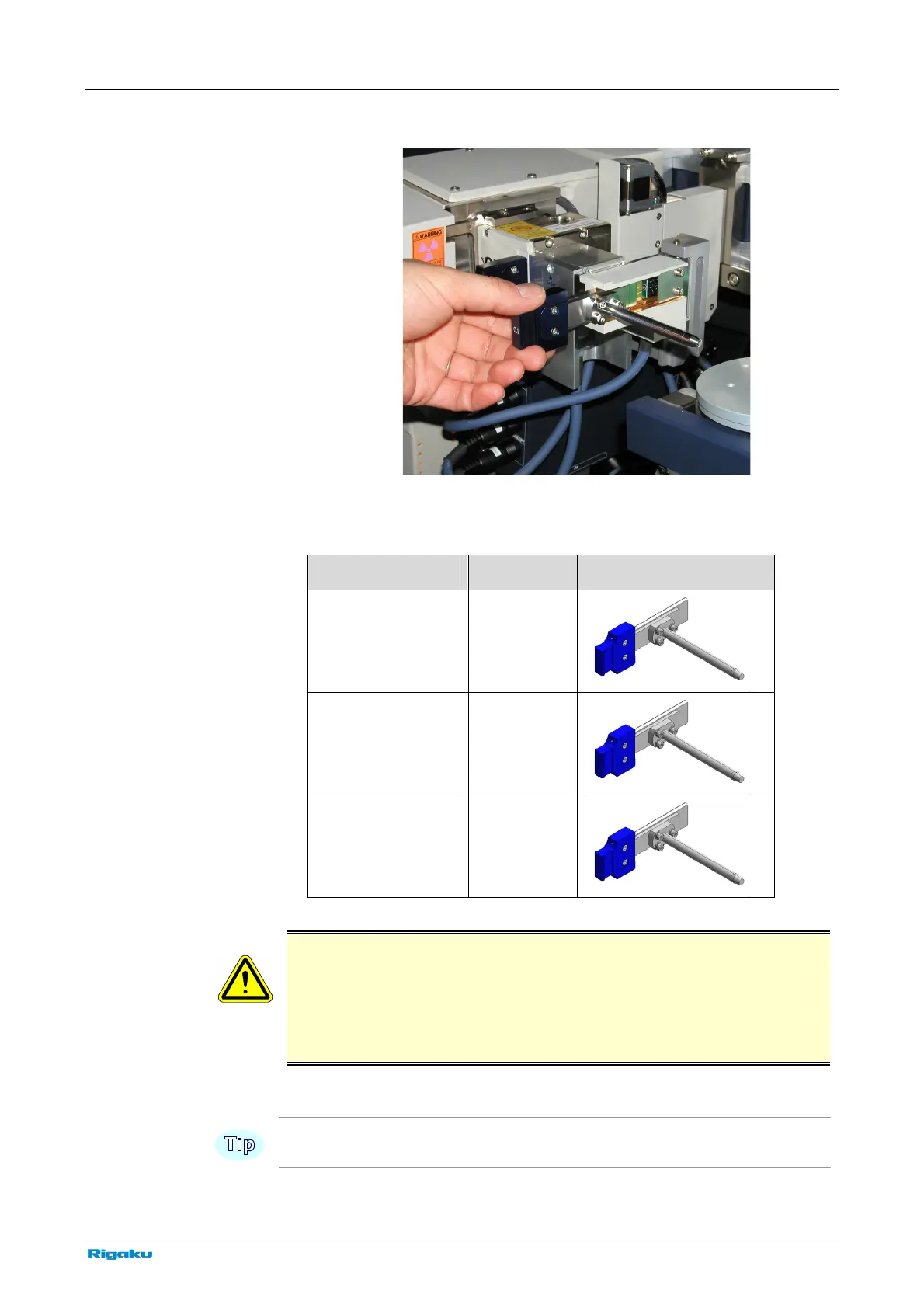

3 Insert the pinhole collimator into the collimator holder.
Table Pinhole collimators (option)
Pinhole diameter Abbreviation Illustration
φ
0.2 mm
(2431E103)
0.2
φ
0.1 mm
(2431E102)
0.1
φ
0.05 mm
(2431E101)
0.05
CAUTION
Do not use the pinhole collimator (option) with the XY-4” phi attachment.
When using the pinhole collimator with the XY-4” phi attachment, the end of
the pinhole collimator collides with the sample and/or the sample plate from
the translation of X and Y axes, and thus the pinhole collimator, the sample,
and the sample stage may become damaged.
The type of inserted pinhole collimator can be identified from SmartLab Guidance.
