Incident optics unit (standard incident optics unit)
SmartLab: Automated Multipurpose X-ray Diffractometer 35

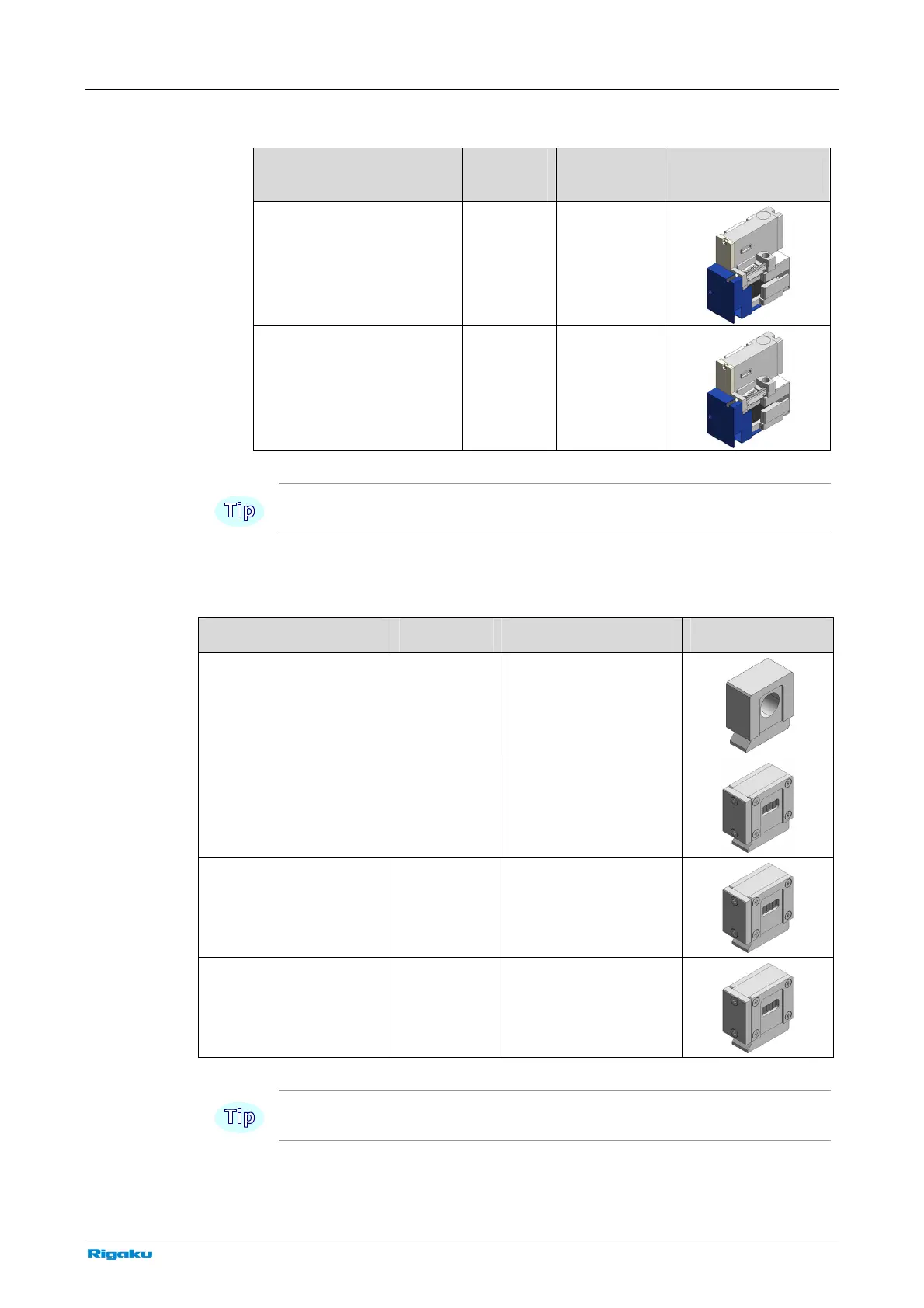

Table 2-bounce monochromators
Crystal
Diffraction
plane
Abbreviation Illustration
Ge
(option: 2680B111)
220 Ge(220)x2
Ge
(option: 2680B112)
400 Ge(400)x2
The type of installed crystal can be identified from SmartLab Guidance.
Table Parallel slits for 2-bounce monochromator
Type Divergence Abbreviation Illustration
Open
(provided with the unit)
None Soller_slit_open
Soller slit
(option: 2680D213)
5.0º Soller_slit_5.0 deg
Soller slit
(option: 2680D212)
2.5º Soller_slit_2.5 deg
In-plane PSC
(option: 2680D211)
0.5º In-plane_PSC_0.5 deg
The type of parallel slit installed on the adaptor can be identified from SmartLab Guidance.
