Rigol DS1074Z Plus Programming Guide

Chapter 3 Programming Demos RIGOL
MSO1000Z/DS1000Z Programming Guide 3-3
Excel Programming Demo
The program used in this demo: Microsoft Excel 2010
The function realized in this demo: send the *IDN? Command to read the device information.
1. Create a new Excel file that enables the Macros. In this demo, the file is named as IDN.xlsm.

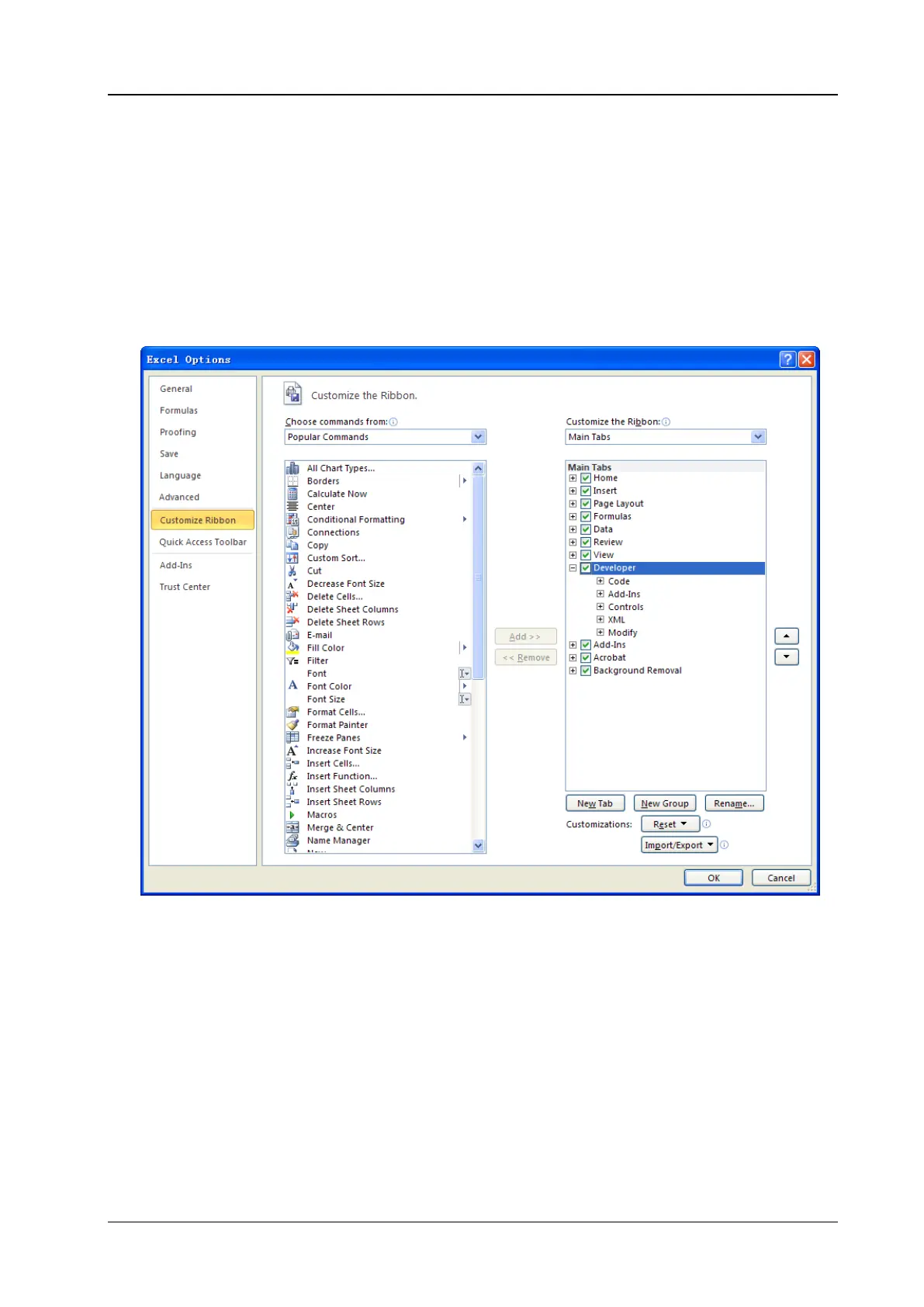

2. Run the IDN.xlsm file. Click FileOptions at the upper-left corner of the Excel file to open the
interface as shown in the figure below. Click Customize Ribbon at the right, check Developer and
click OK. At this point, the Excel menu bar displays the Developer menu.

Rigol DS1074Z Plus Specifications

General

Type	Tabletop
Product type	-
Certification	UL 61010-1:2004; CAN/CSA-C22.2 NO. 61010-1-2004; EN 61010-1:2001; IEC 61010-1:2001
Bandwidth	70 MHz
Sampling rate	- MS/s
Channels quantity	4 channels
Minimum time base setting (per division)	5 ns
Power consumption (max)	50 W
Display diagonal	7 \
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	122.4 mm
Width	313.1 mm
Height	160.8 mm
