Visual C++ Programming Demo
The program used in this demo: Microsoft Visual C++ 6.0
The functions realized in this demo: search for the instrument address, connect the instrument, send
command and read the return value.
Enter Visual C++6.0 and operate according to the following steps:
1. Create a MFC project based on dialog box.

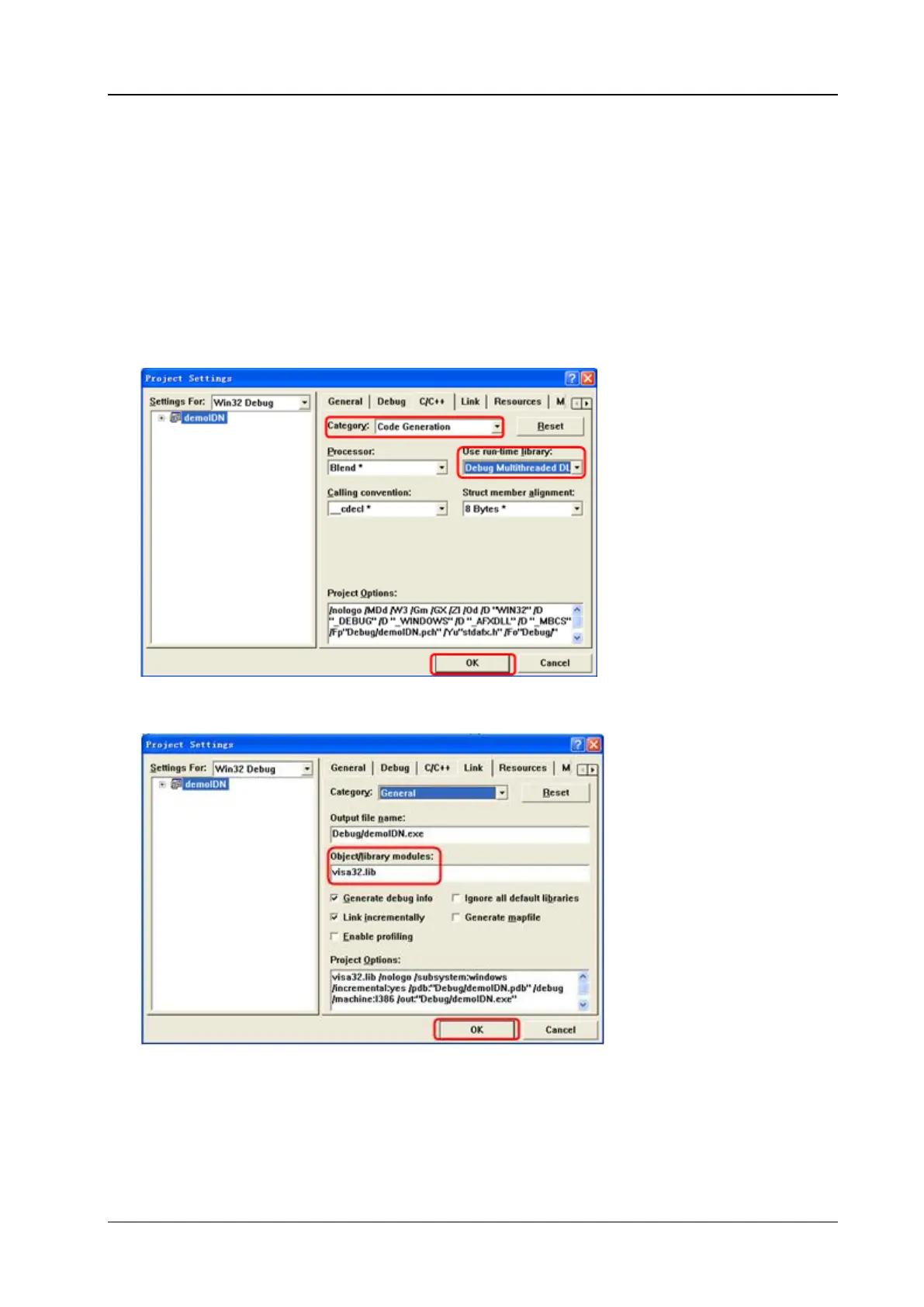

2. Open the C/C++ tab in ProjectSettings, select Code Generation in Category and Debug
Multithreaded DLL in Use run-time library. Then, click OK to close the dialog box.
3. Open the Link tab in ProjectSettings and add visa32.lib to the Object/library modules
manually.
