Rigol DS1074Z Plus Programming Guide

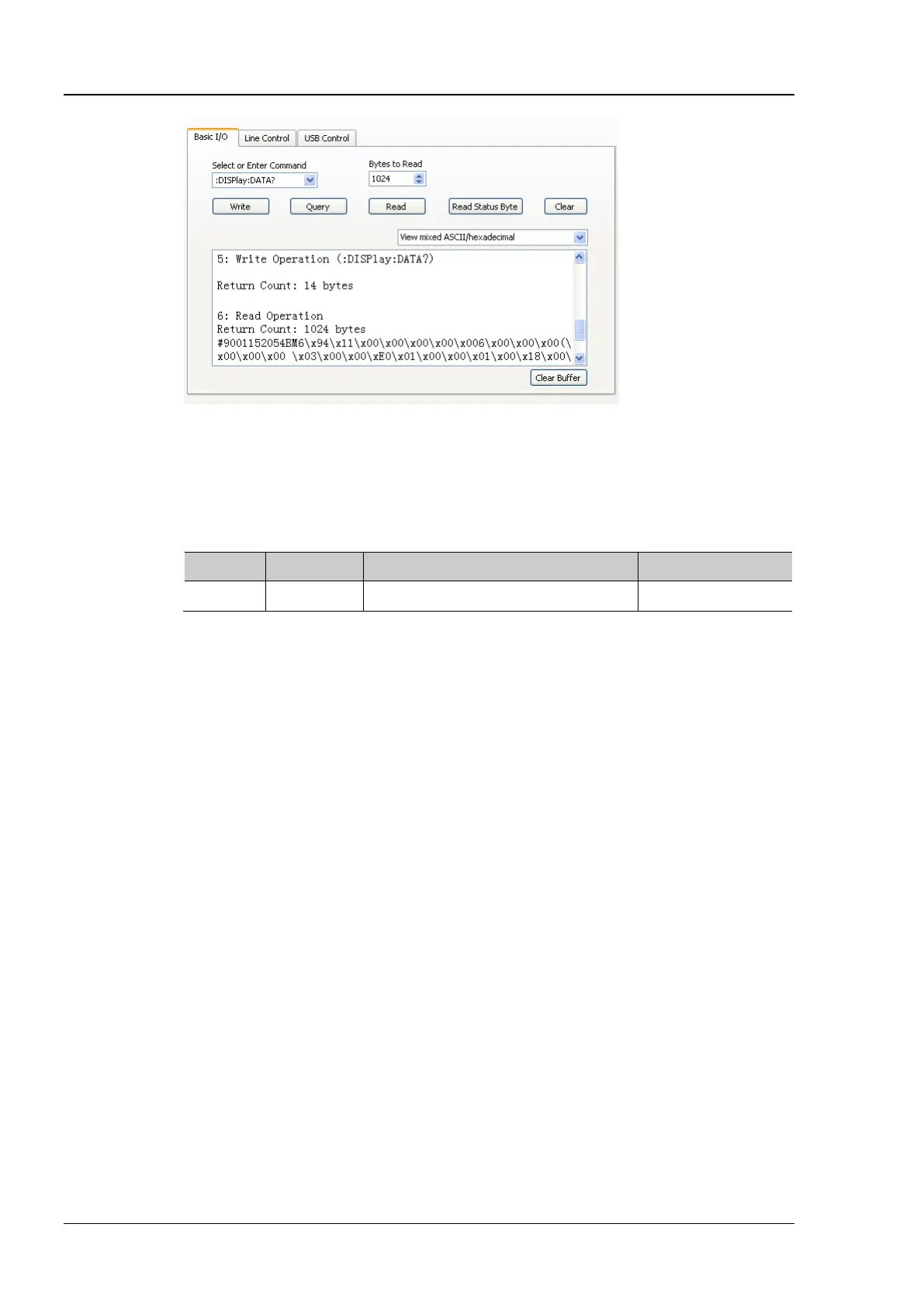

RIGOL Chapter 2 Command System
2-64 MSO1000Z/DS1000Z Programming Guide
:DISPlay:TYPE
Syntax
:DISPlay:TYPE <type>
:DISPlay:TYPE?
Description
Set or query the display mode of the waveform on the screen.
Parameter
Name
Type
Range
Default
<type>
Discrete
{VECTors|DOTS}
VECTors
Explanation
 VECTors: the sample points are connected by lines. Normally, this mode can provide
the most vivid waveform to view the steep edge of the waveform (such as square
waveform).
 DOTS: display the sample points directly. You can directly view each sample point
and use the cursor to measure the X and Y values of the sample point.
Return
Format
The query returns VECT or DOTS.
Example
:DISPlay:TYPE DOTS /*Select dots display mode*/
:DISPlay:TYPE? /*The query returns DOTS*/

Rigol DS1074Z Plus Specifications

General

Type	Tabletop
Product type	-
Certification	UL 61010-1:2004; CAN/CSA-C22.2 NO. 61010-1-2004; EN 61010-1:2001; IEC 61010-1:2001
Bandwidth	70 MHz
Sampling rate	- MS/s
Channels quantity	4 channels
Minimum time base setting (per division)	5 ns
Power consumption (max)	50 W
Display diagonal	7 \
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	122.4 mm
Width	313.1 mm
Height	160.8 mm
