Chapter 3 Programming Demos RIGOL
MSO1000Z/DS1000Z Programming Guide 3-13
Visual Basic Programming Demo
The program used in this demo: Visual Basic 6.0
The function realized in this demo: control the on/off state of any channel.
Enter Visual Basic 6.0 and operate according to the following steps:
1. Build a standard application program project (Standard EXE) and name it as Demo.

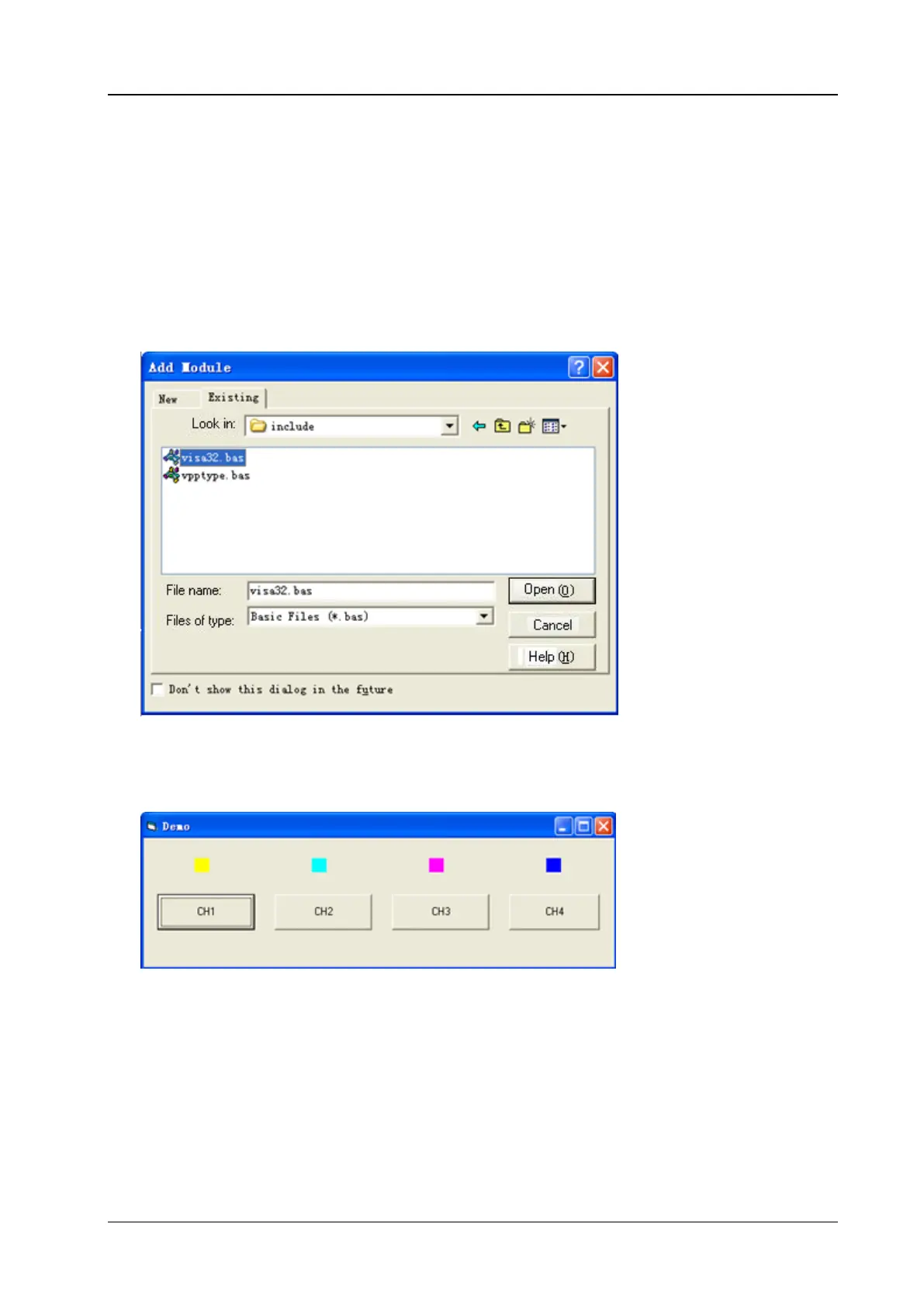

2. Click the Existing tab of ProjectAdd Module. Search for the visa32.bas file in the include folder
under the NI-VISA installation path and add the file.
3. Add four CommandButton controls to represent CH1 to CH4 respectively. Add four Label controls
(Label1(0), Label1(1), Label1(2), and Label1(3)) to represent the status of CH1 to CH4 respectively
(when the channel is enabled, it displays the color of the channel; when the channel is disabled, it
displays gray).The layout of the controls is as shown in the figure below.
4. Open the General tab in ProjectProject1 Properties and select Form1 in the Startup Object
dropdown box.
5. Double-click CH1 to enter the programming environment. Add the following codes to control CH1 to
CH4. The codes of CH1 are as shown below; the codes of other channels are similar.
Dim defrm As Long
Dim vi As Long
Dim strRes As String * 200
Dim list As Long
Dim nmatches As Long

Rigol DS1074Z Plus Specifications

General

Type	Tabletop
Product type	-
Certification	UL 61010-1:2004; CAN/CSA-C22.2 NO. 61010-1-2004; EN 61010-1:2001; IEC 61010-1:2001
Bandwidth	70 MHz
Sampling rate	- MS/s
Channels quantity	4 channels
Minimum time base setting (per division)	5 ns
Power consumption (max)	50 W
Display diagonal	7 \
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	122.4 mm
Width	313.1 mm
Height	160.8 mm
