bus. When enabled, the bus label "1553B" will be displayed at the upper-left
side of the bus (when the bus display is enabled).
âš« Event table
Press Event Table to enter the event table setting menu. The event table
displays the detailed decoding information in time order in the form of a
table, so as to better observe the long decoded data. The decoding
information includes the decoded data, word type, the corresponding line
number, time, and error information.
➢ Open or close the event table: Press Event Table continuously to
enable or disable the event table. When you enable the event table,
the following figure is displayed, as shown in Figure 11-15. You can
also enable the touch screen to tap the icon at the upper-right
corner of the table to close the event table. Besides, when the
operating status is "STOP", you can also rotate the multifunction knob
to select a specified line and view the corresponding decoding
information.

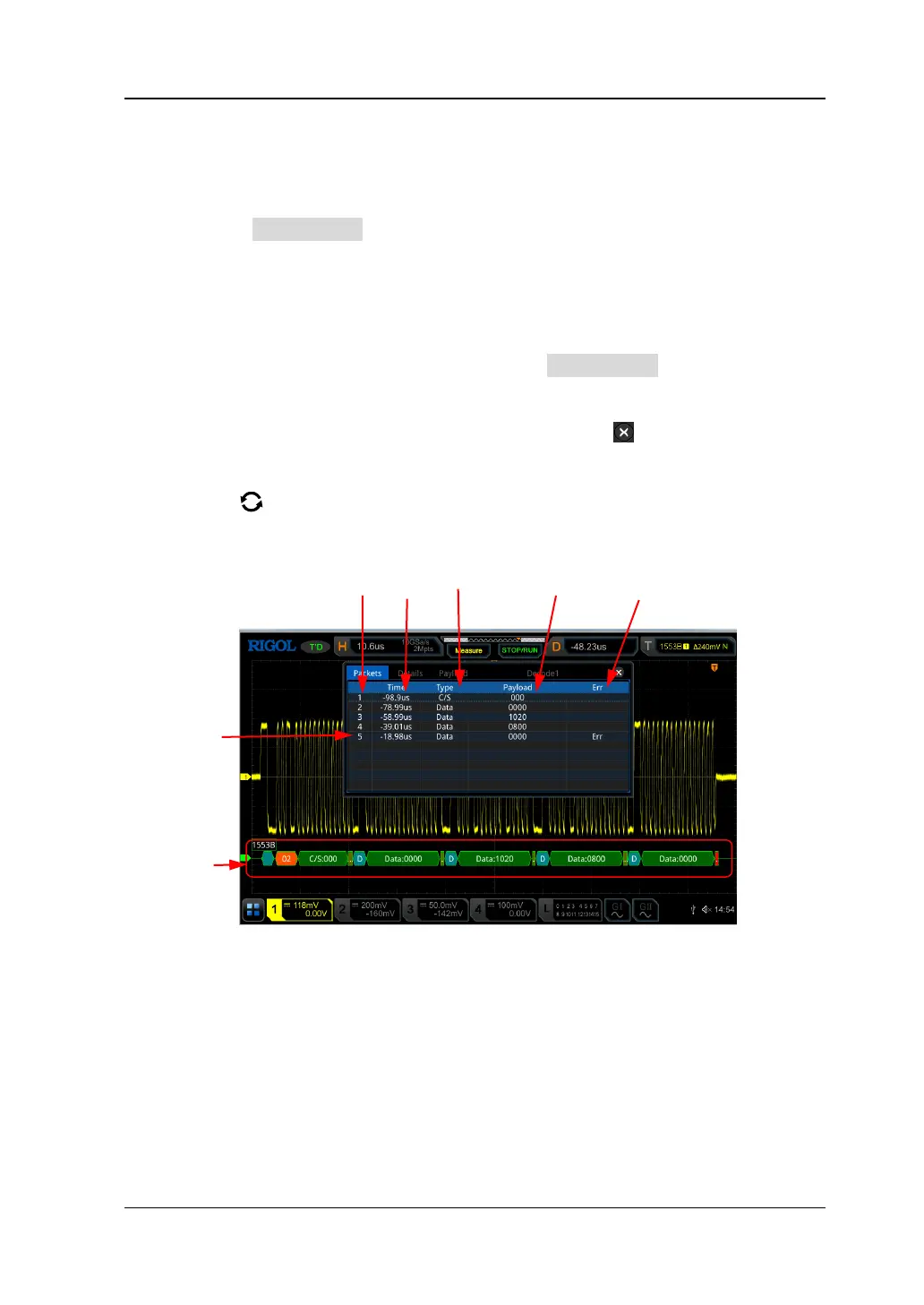

Figure 11-15 1553B Decoding Event Table
Note:
âš« When you adjust the horizontal time base, the waveform displayed
on the screen will also change, and the total number of lines
containing the decoding information in the event table will also be
changed.
âš« The displayed decoded data information in the bus is related to the
value of the horizontal time base. Reducing the horizontal time
base can help you view the detailed information.
