Items
Serial Com. Speed
(Available only for the
Remote transmission
mode)
Resolution Review
(Available only for the
Remote transmission
mode)
AT Command Output
(Available only for the
Remote transmission
mode)
Descriptions
Selects the serial communication speed between
the RISOGRAPH and the data receiving device for
the Remote transmission mode.
Selects if the resolution of the document data
received should be converted into the printing
resolution of the RISOGRAPH.
The document data resolution will be converted
only when it is different from the printing resolution
of the RISOGRAPH.
Select "ON" if you want to activate this function.
If the document data resolution is
converted, the image quality will
deteriorate, compared with the original
one.
Outputs a selected AT command to the connected
data receiving device (modem or TA).
You can check if your selected data receiving
device can properly communicate with the
RISOGRAPH by transmitting a desired AT
command.
For detailed descriptions about the AT commands,
refer to the user's guide of the selected data
receiving device.
Options
115200bps,
57600bps,
38400bps,
19200bps,
9600bps,
4800bps,
2400bps
ON,
OFF
See the list below.
NOTE
Changing the PC Data Mode Configuration
No.
001 ATB0&W
002 ATB1&W
003 ATL0&W
004 ATL1&W
005 ATL2&W
006 ATL3&W
007 ATM0&W
008 ATM1&W
009 ATM2&W
010 ATM3&W
011 ATY0
012 ATY1
013 AT&B0&W
No.
014 AT&B1&W
015 AT&B2&W
016 AT&D0&W
017 AT&D1&W
018 AT&D2&W
019 AT&D3&W
020 AT&F&W
021 AT&F0
022 AT&F1
023 AT&M0&W
024 AT&M4&W
025 AT&M5&W
026 AT&M6&W
No.
027 AT&M7&W
028 AT&W0
029 AT&W1
030 AT&Y0&W
031 AT&Y1&W
032 AT J0&W
033 AT J1&W
034 AT N0&W
035 AT N1&W
036 AT N2&W
037 AT N3&W
038 AT N4&W
039 AT N5&W
No.
040 AT%X0&W
041 AT%C0&W
042 AT%C1&W
043 AT%C2&W
044 AT%C3&W
045 AT&K0&W
046 AT&K1&W
047 AT&K2&W
048 AT&K3&W
The 0's in the No. fields are zeros.
< AT Command Selection List >
The framed option is selected as default one.
/
/
/
/
/
/
/
/
89
Changing the PC Data Mode
Configuration
You may be required to change the initial PC data mode
configuration according to your operation requirements for
printing out the document data sent from the computer.
To allow you to change the PC data mode configuration,
therefore, the following window, Mode configuration
window, is prepared.
Follow the procedures described below to change the
configuration according to your needs.

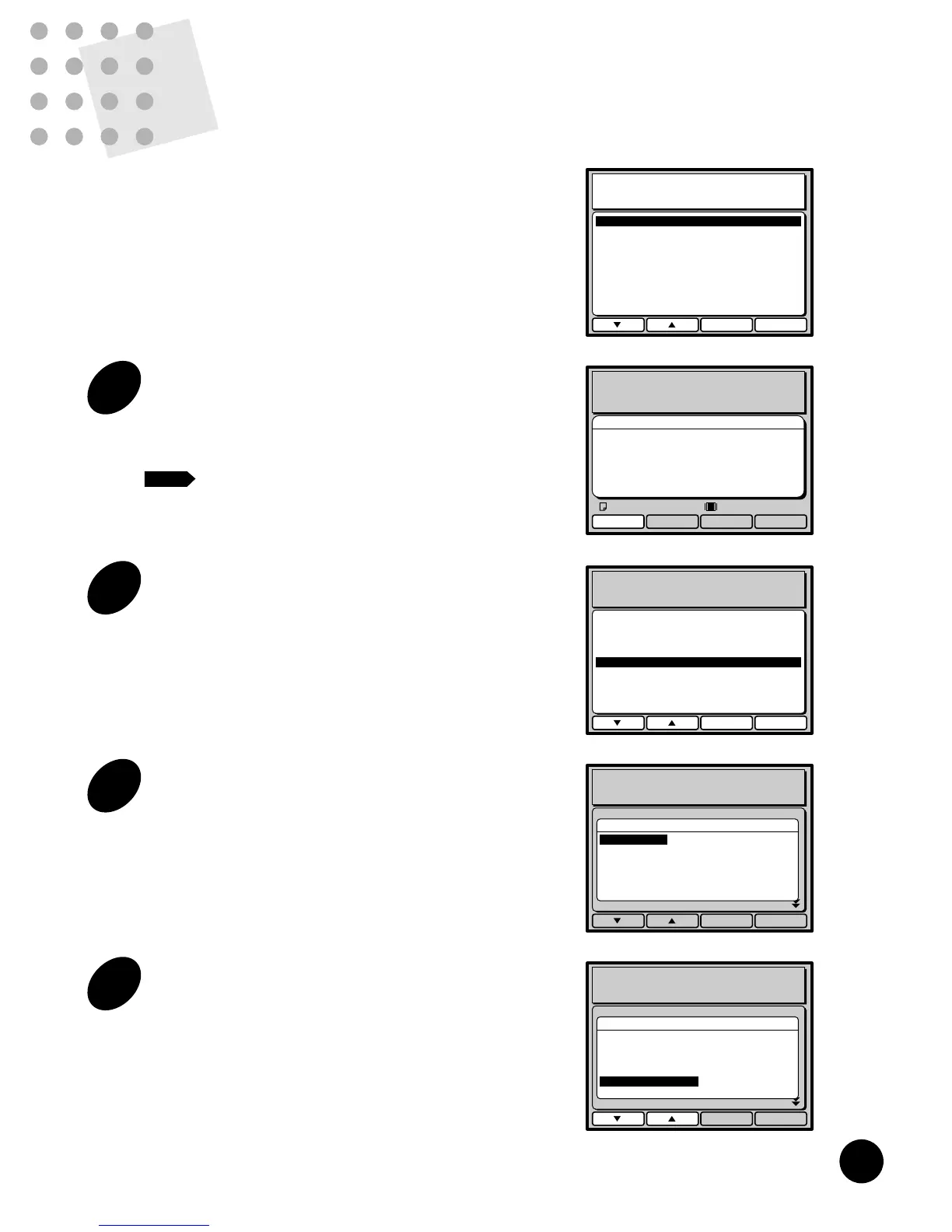

1
Press the z function key in
the PC data mode basic window.
The Mode configuration window appears.
When the PC data mode basic window
does not appear in the Main Display,
press the Data Source Selection key on
the Sub control panel.
PC Data Mode
Black
Settings
Ready to Receive Data
Communication Mode :Local Connection
Doc.Data Spooling :OFF
Data Process Step :PC Selection
180˚ Rotation :OFF
Communication :Data Receivable
Letter
Close OK
PC Data Mode Settings
Communication Mode Local Connection
Copy Count Entry Necessary
RMT Error Transact Pause
Doc.Data Spooling OFF
Data Process Step PC Selection
RMT Data Receiver Modem
Serial Com.Speed 115200bps
Resolution Review OFF
2
Press the w or q
function key and highlight a
desired item.
Close OK
PC Data Mode Settings
Communication Mode Local Connection
Copy Count Entry Necessary
RMT Error Transact Pause
Doc.Data Spooling OFF
Data Process Step PC Selection
RMT Data Receiver Modem
Serial Com.Speed 115200bps
Resolution Review OFF
3
Press the e function key.
The Configuration option window for the selected
item appears.
Close OK
PC Data Mode Settings
Data Process Step
PC Selection
Full Auto
OFF
Semi-Auto>Print
Semi-Auto>Master
NOTE
4
Press the w or q
function key and highlight a
desired option.
Close OK
PC Data Mode Settings
Data Process Step
PC Selection
Full Auto
OFF
Semi-Auto>Print
Semi-Auto>Master
To Next Page
