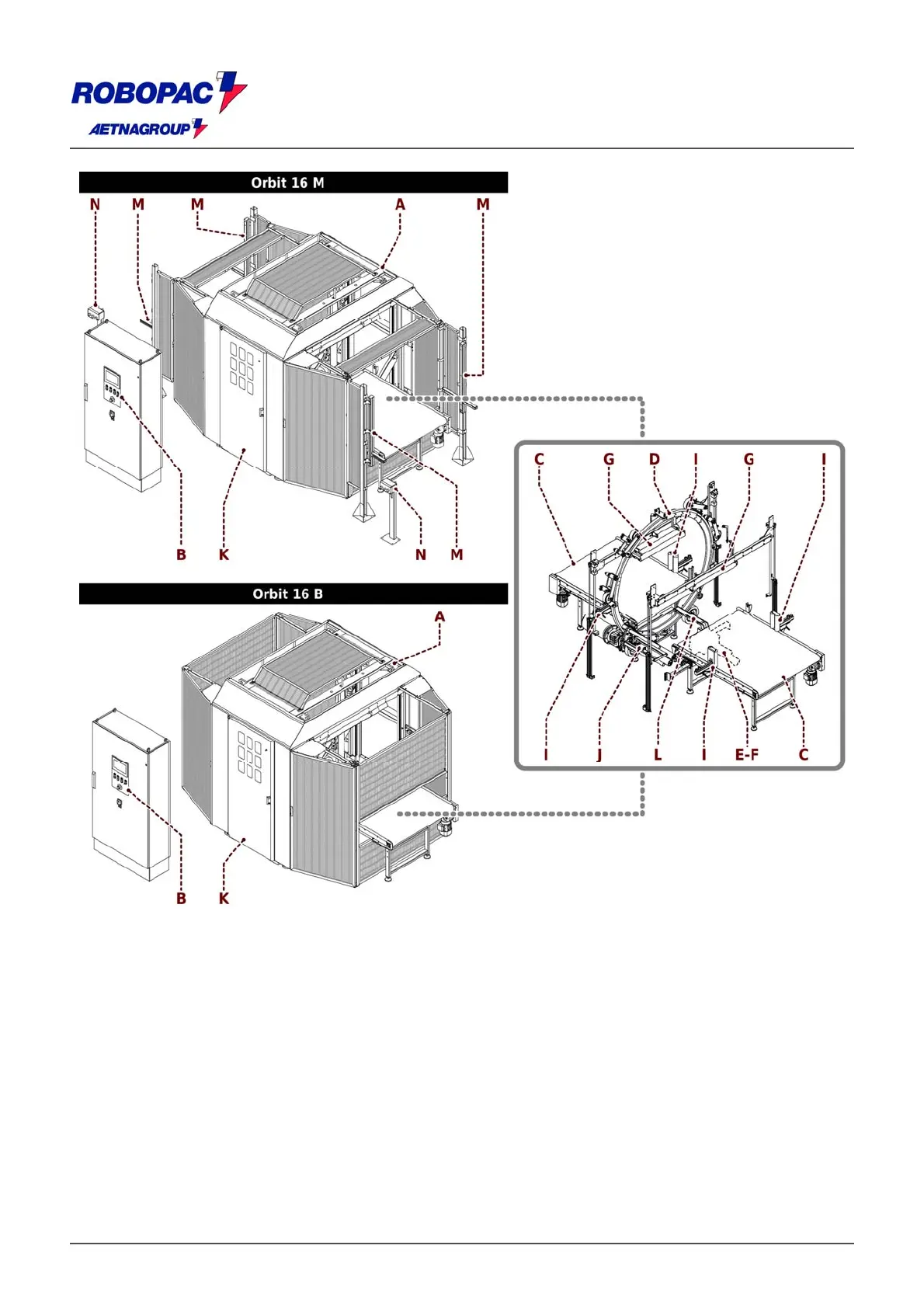

ORBIT 16
)Base
the main structure of the machine.
B) Control panel
Enables machine functions.
C) Infeed/outfeed conveyors
They allow transportation of the product to be wrapped; they are comprised of motorised rollers, with or
without conveyor.
D) Rotating ring unit
Consists of a rotating ring with friction drive, driven by an inverter-controlled electric motor.
E) Clamping and cutting unit
This allows for the film to be blocked and cut for winding.
The unit is equipped with a stopper (L) that supports the coating locking pad and the short products.
F) Gripper, cutting and sealing unit (Optional)
Allows locking, cutting and sealing the coating at the end of the wrapping.
G) Pressure units
Hold the product against the conveyors.
Manual positioning.
