3.4. DESCRIPTION OF THE ELECTRICAL DEVICES
T

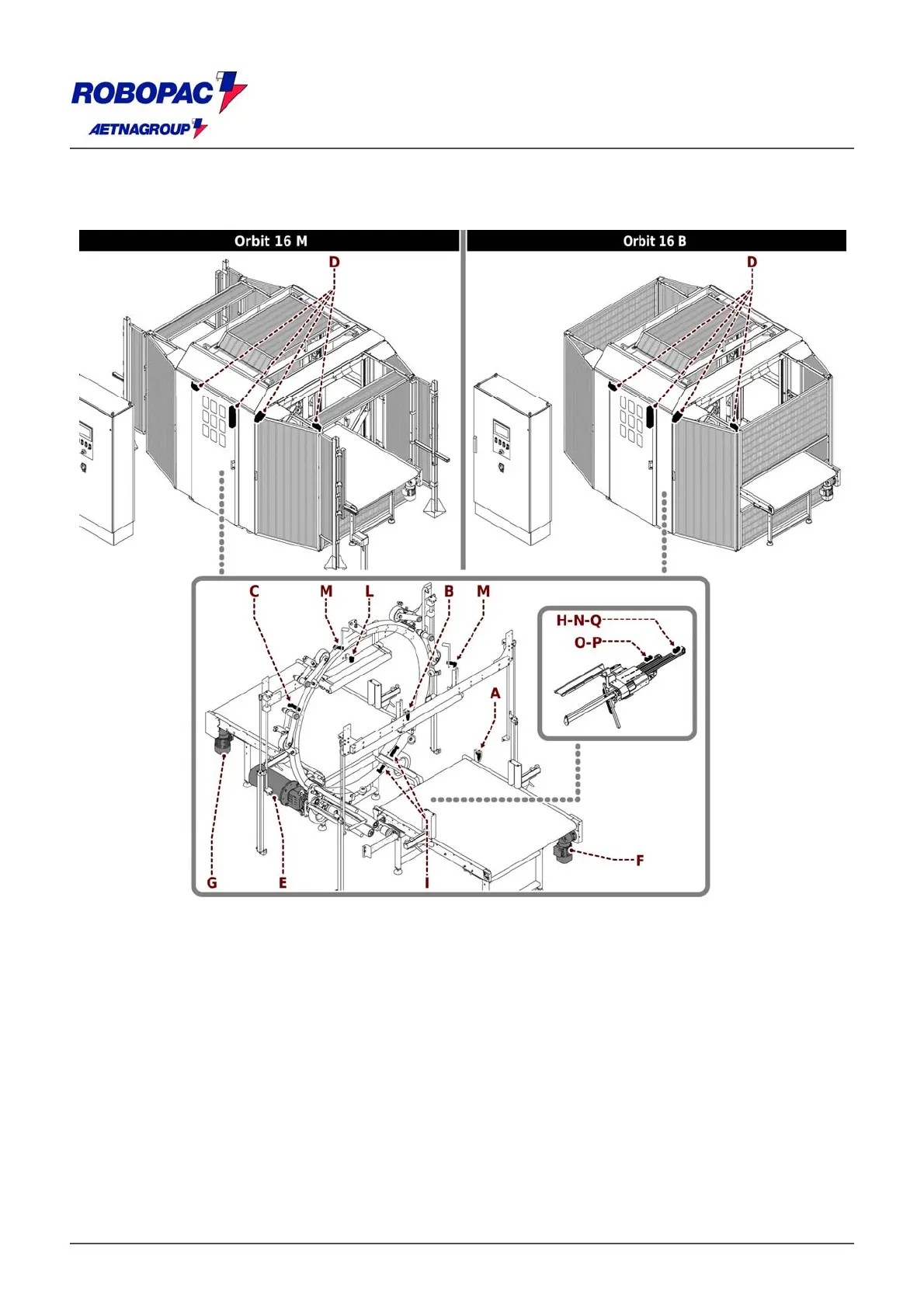

he figure shows the positioning of the devices on board of the machine.
A
)Photocell(B1)
detects product presence on the infeed conveyor.
B) Photocell (B2)
detects product presence on the outfeed conveyor.
C) Phase sensor (SQ1)
Detects the rotating ring in the start cycle position (machine in phase).
D) Microswitch
It prevents the machine from opening unless it is enabled to such operation from the “Door opening
request” key selector switch.
E) Electric motor
starts rotating ring.
F) Electric motor
starts the infeed conveyor.
G) Electric motor
starts the outfeed conveyor.
H) Sensor
Detects the clamp in the “back” position.
