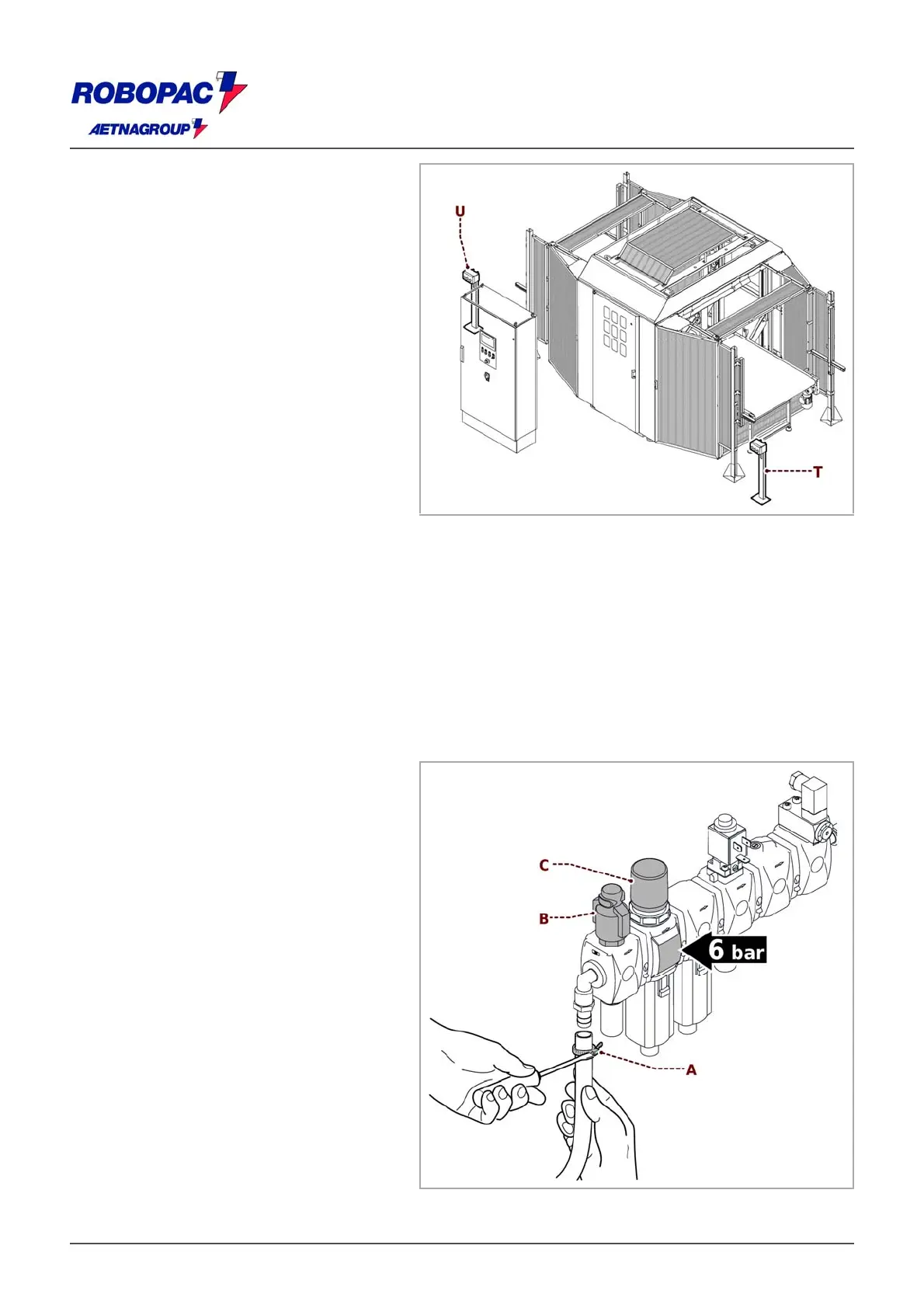

‒ Place the control panels (T - U) and fix
them to the ground.
Make the electrical connections between
the panel and the electric cabinet.
4.6. RECOMMENDATIONS FOR CONNECTIONS
Important
he connections must be made in accordance with the specifications supplied by the manufacturer in the
enclosed diagrams.
he person authorized to carry out said operation must posses the skills and experience acquired and
acknowledged in the specific sector, must perform the connection workmanlike and keep into account all the
statutory and legislation requirements.
Once the connection has been completed, before commissioning the machinery, it is necessary to perform an
overall control to verify if said requirements have been complied with.
4.7. PNEUMATIC
CONNECTIONS
Proceed as indicated.
1. Insert a flexible tube on the end of the
rubber fitting and fasten it with a
metallic screw clamp (A).
2. Check that the valve (B) is in the "OPEN"
position.
3. Turn on the power supply line.
4. Check that the pressure gauge indicates
at least 6 bar and use the knob (C) to
compensate any pressure differences.
Repeat this operation when the machine
is running.
