ORBIT 16

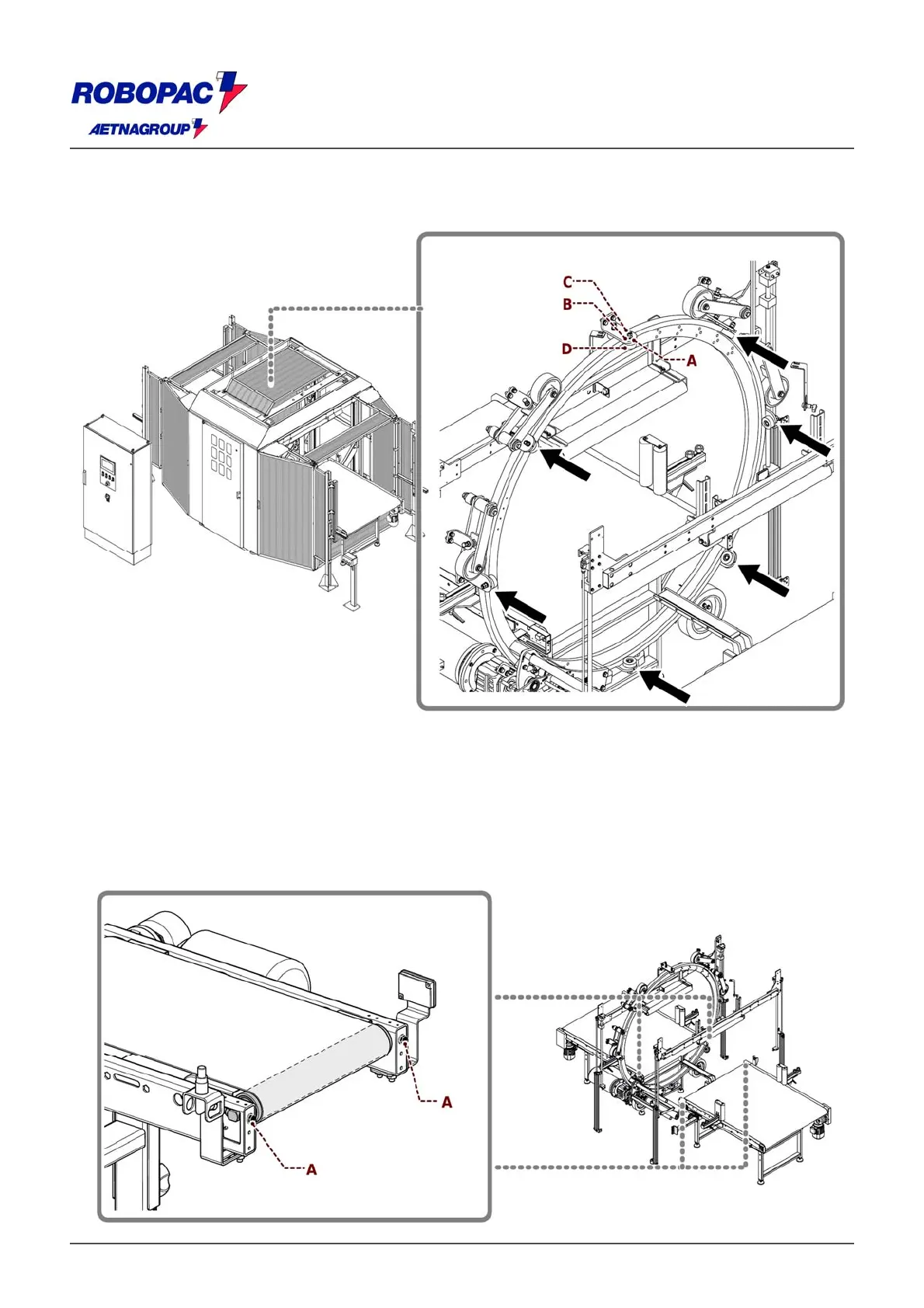

7.6. ROTATING RING RETAINING WHEELS – POSITION ADJUSTMENT
Proceed as indicated.
1. Loosen worm-screw (A).
2. Loosen the counter-nut (C) and the nut (B).
3. Bring the wheel (D) close to the rotating ring and tighten the nut and lock nut.
4. Tighten the grain (A).
7.7. INFEED CONVEYOR, OUTFEED CONVEYOR – BELT ADJUSTMENT
Proceed as indicated.
85/95
