3.2.2."HEAD - TAIL" WRAPPING
With the product on the feed conveyor, press the “Start” button on the control panel to start the work cycle.

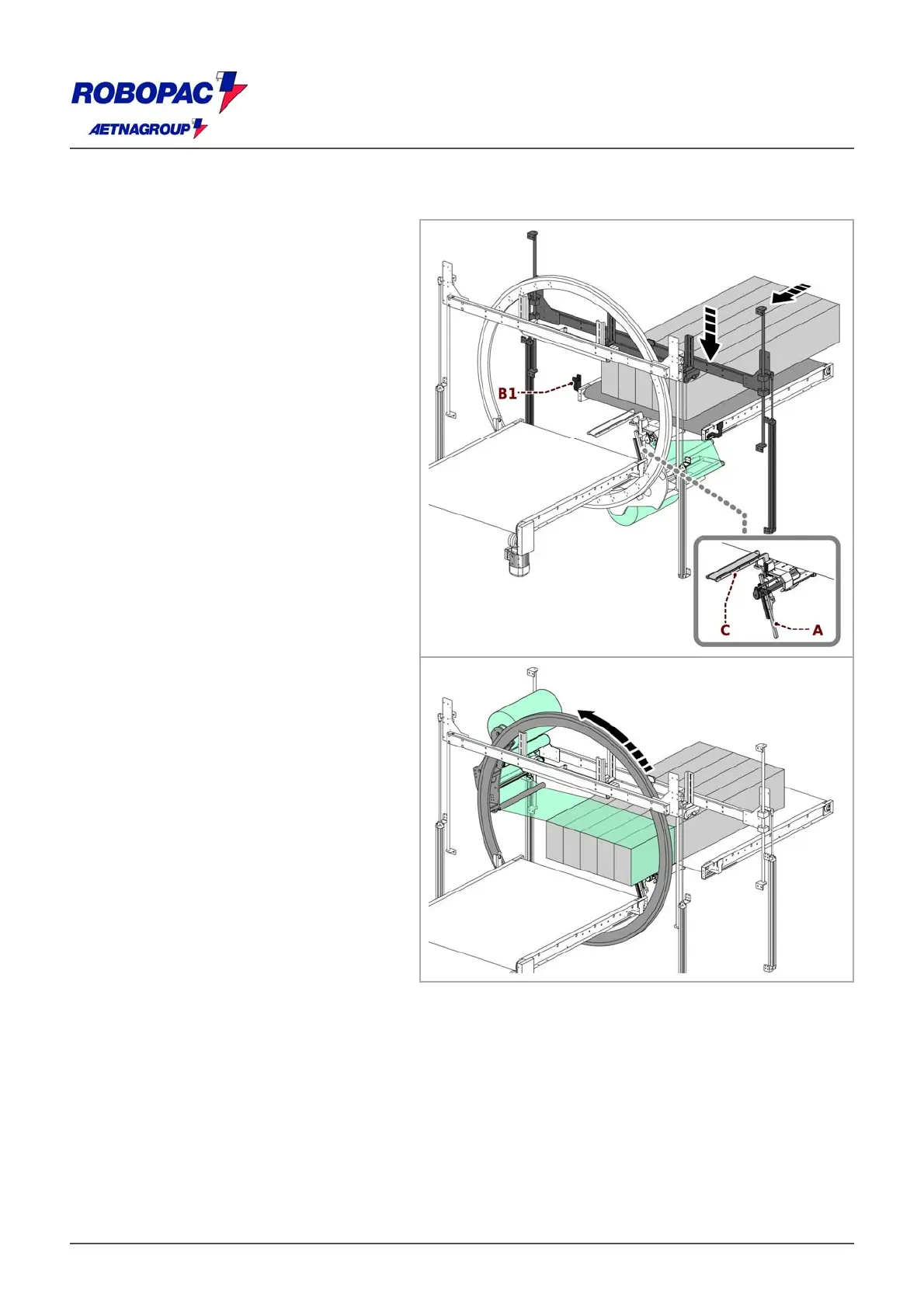

Phase 1
‒ The conveyor starts and moves the
product towards the rotating ring.
‒ The product engages photocell (B1), the
infeed pressure platen lowers and blocks
the product, the “head positioning” timer
starts.
‒ After the timer count has finished, the
carrier stops, the rotating ring starts
counting the "head and tail turns"; the
head of the product is wrapped.
‒ At the last wrap of the rotating ring, the
clamp comes out to hook the film.
The rotating ring stops and the pad (A)
moves up to lock the coating against the
stopper (C).
If there is a sealing unit installed, the
coating gets sealed as the pad moves
up.
The gripper returns to its position and
locks the coating.
‒ The blade comes out and cuts the
coating.
‒ The pad (A) lowers into rest position and
the blade is withdrawn at the same time.
