ORBIT 16

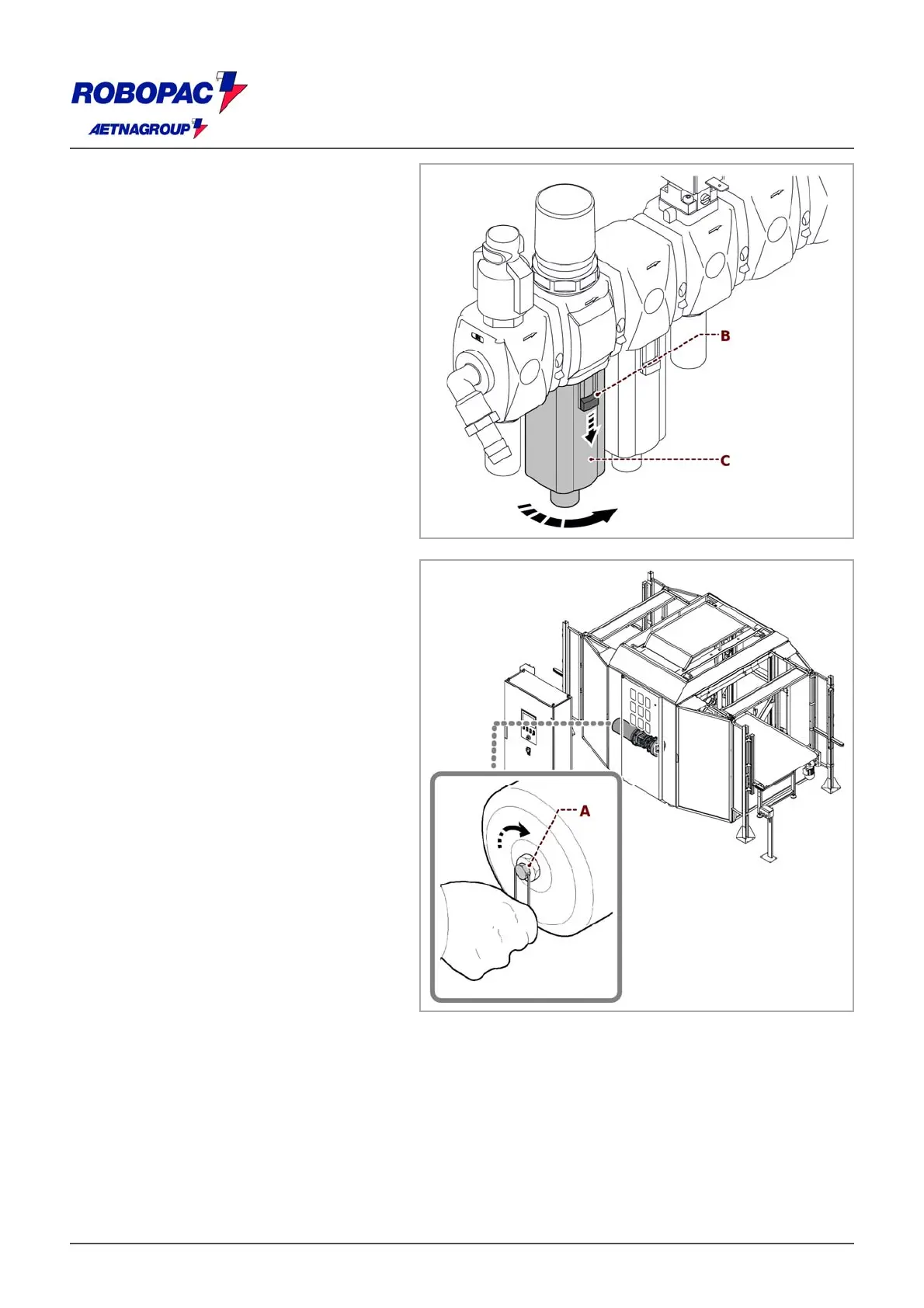

7.4. CLEANING THE FILTER
Proceed as indicated:
1. Push the (B) switch downward and
rotate the (C) cup until the point of
extraction.
2. Disassemble the filter and clean it with
compressed air. Wash it, if necessary,
with water and non-aggressive
detergents.
3. Reassemble the filter.
4. Reinsert the cup, rotate it and block it
with the (B) switch, switching it upwards.
7.5. ROTATING RING -
MOVEMENT
The ring will always stop with the spool
on; if manual spool carriage unit rotation
is necessary proceed as follows:
1. Switch the machine off.
2. release the motor brake by tightening
the screw (A) completely; the spool
carriage unit is now free to rotate.
3. completely loosen the screw to once
again block motor brake; removal is
recommended when not in use.
