ORBIT 16
‒ for Hmin = 20 => Wmin =350
‒ Minimum length (bob.250)=650
‒ Minimum length (bob.500)=900
‒ Maximum height =220

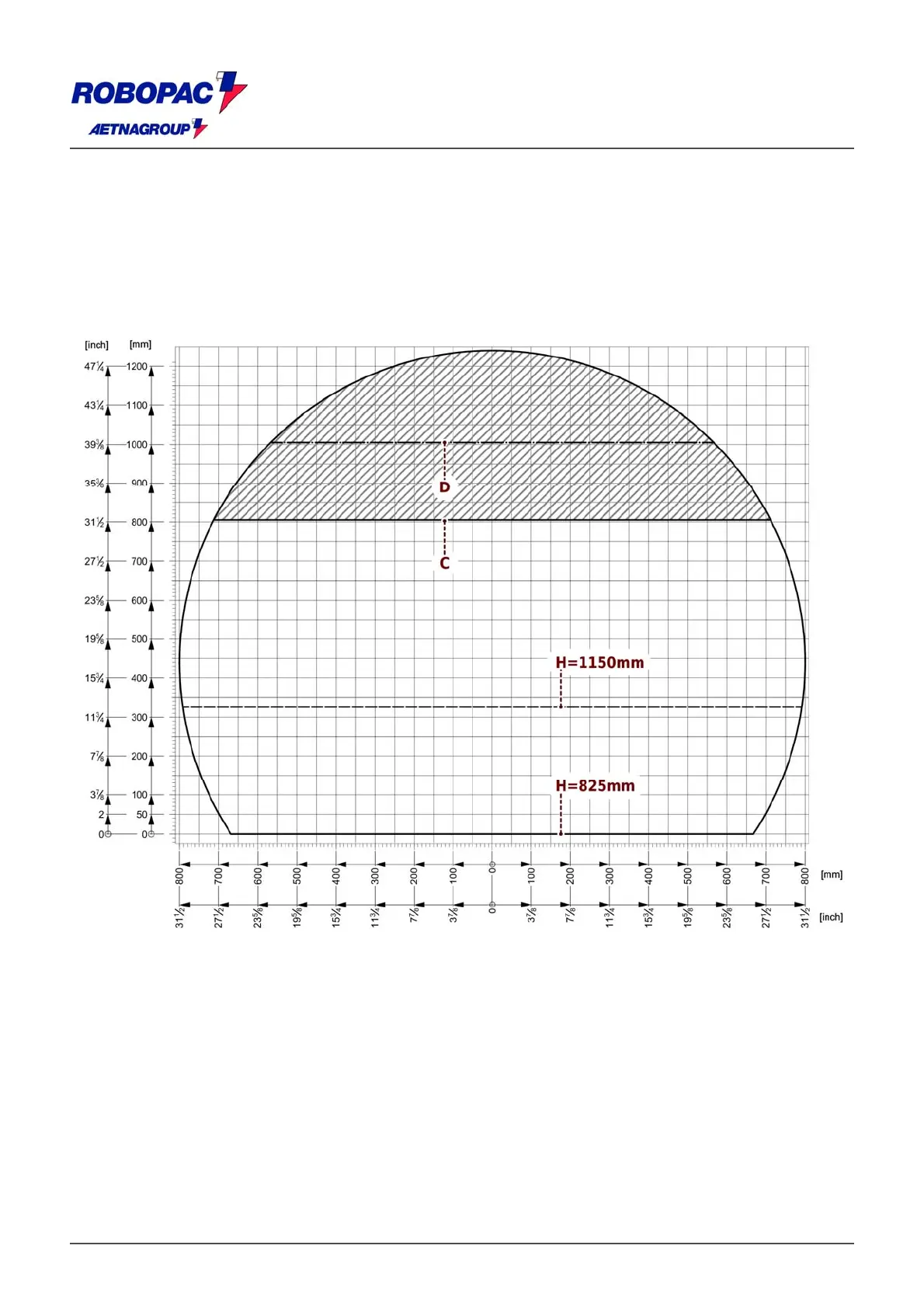

3.7.3.PROCESSABLE PRODUCTS SIZE (GUARDS MUTING)
Key
H) Worktable
C) Pressure roller overall dimensions (Posit. STANDARD)
D) Pressure roller overall dimensions (Posit. MAXIMUM HEIGHT)
Minimum workable dimensions (mm):
‒ for Wmin = 200 => Hmin = 150
‒ for Hmin = 20 => Wmin = 350
‒ Minimum length (bob.250)=650
‒ Minimum length (bob.500)=900
35/95
