ORBIT 16
9. SPARE PARTS REPLACEMENT INFORMATION
9.1. RECOMMENDATIONS FOR REPLACING PARTS
‒ Carry out the interventions with all the safety devices enabled and wear the DPI provided.
‒ DO NOT carry out any intervention that is not described in the manual but contact an Assistance Service
authorised by the manufacturer.
‒ DO NOT damp in the environment materials, pollutant liquids and the residues created during the
interventions but dispose them according to the standards in force.
Important
Before carrying out any replacement activate all safety devices provided for, and assess if it is necessary to
inform operating personnel and the personnel nearby.
In particular, confine the neighbouring areas to impede access to the devices that could, if activated, produce
unexpected danger conditions provoking hazards to personal safety and health.
When replacing worn parts, use only original replacement parts.
he Manufacturer is not responsible for any damage to property or injuries to people caused by the use of non
genuine spare parts or which may result from repairs not authorised by the Manufacturer.
When ordering new parts, follow the instructions given in the spares catalogue.
9.2. FILM CUTTING BLADE
REPLACEMENT

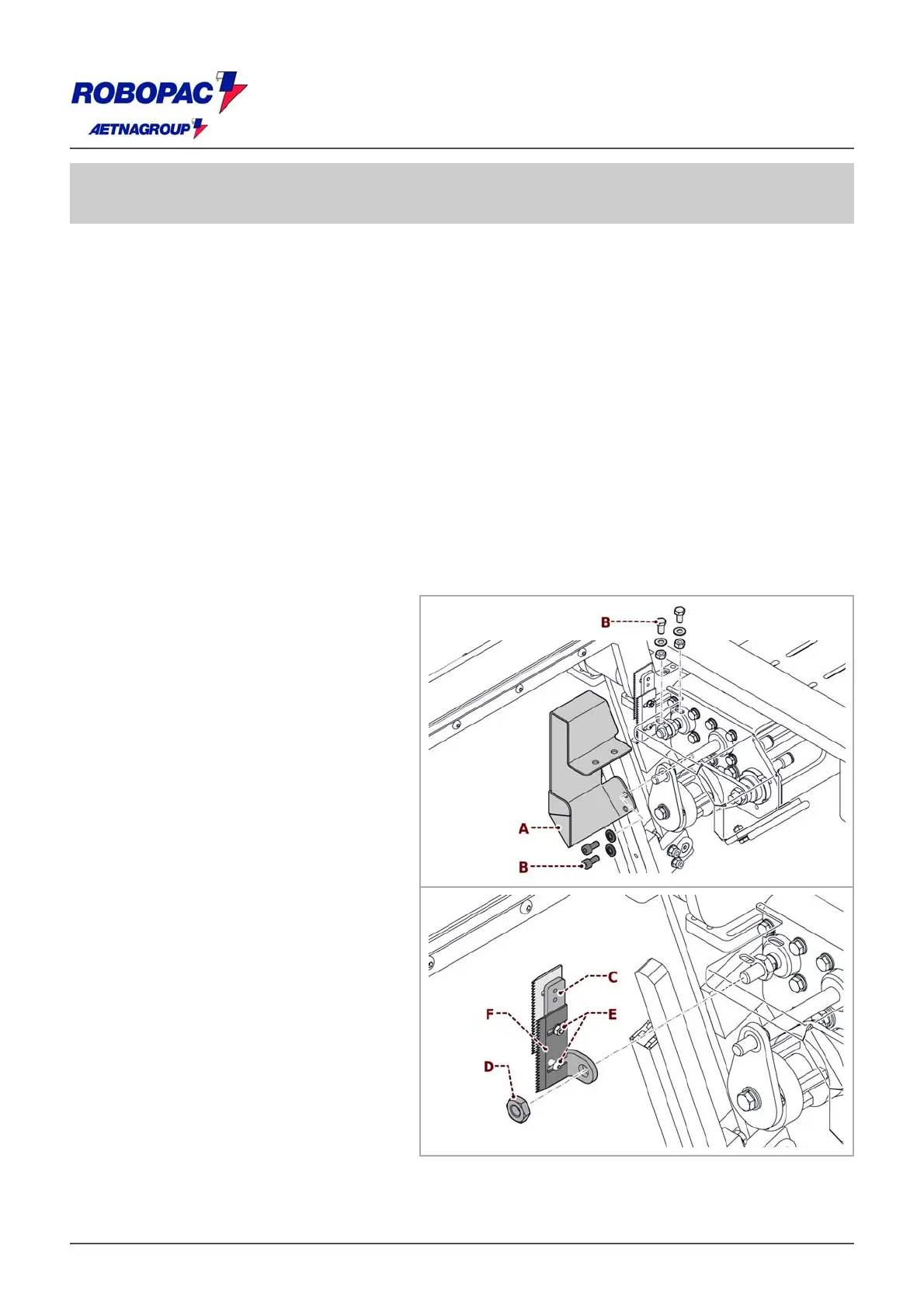

Proceed as indicated.
1. Remove the guard (A) by loosening the
four screws (B).
2. Remove the blade support (C) by
loosening the screw (D).
3. Loosen the fastening screws (E).
4. Remove blade (F) and replace it with a
new one.
5. Tighten the screws (E) when finished.
6. Mount the knife (C) support and the
guard.
Caution - Warning
Handle with great care as the blade is
very sharp.
