4.8. ELECTRICAL CONNECTION
Standard models work with a mains
voltage of:
‒ 400 V 3Ph+N 50/60 Hz
Proceed as follows for electrical
connections.
1. Check that the mains voltage (V) and
frequency (Hz) correspond to those of
the machine.
(see identification plate and wiring
diagram).
2. Turn the mains switch to 0 (OFF).

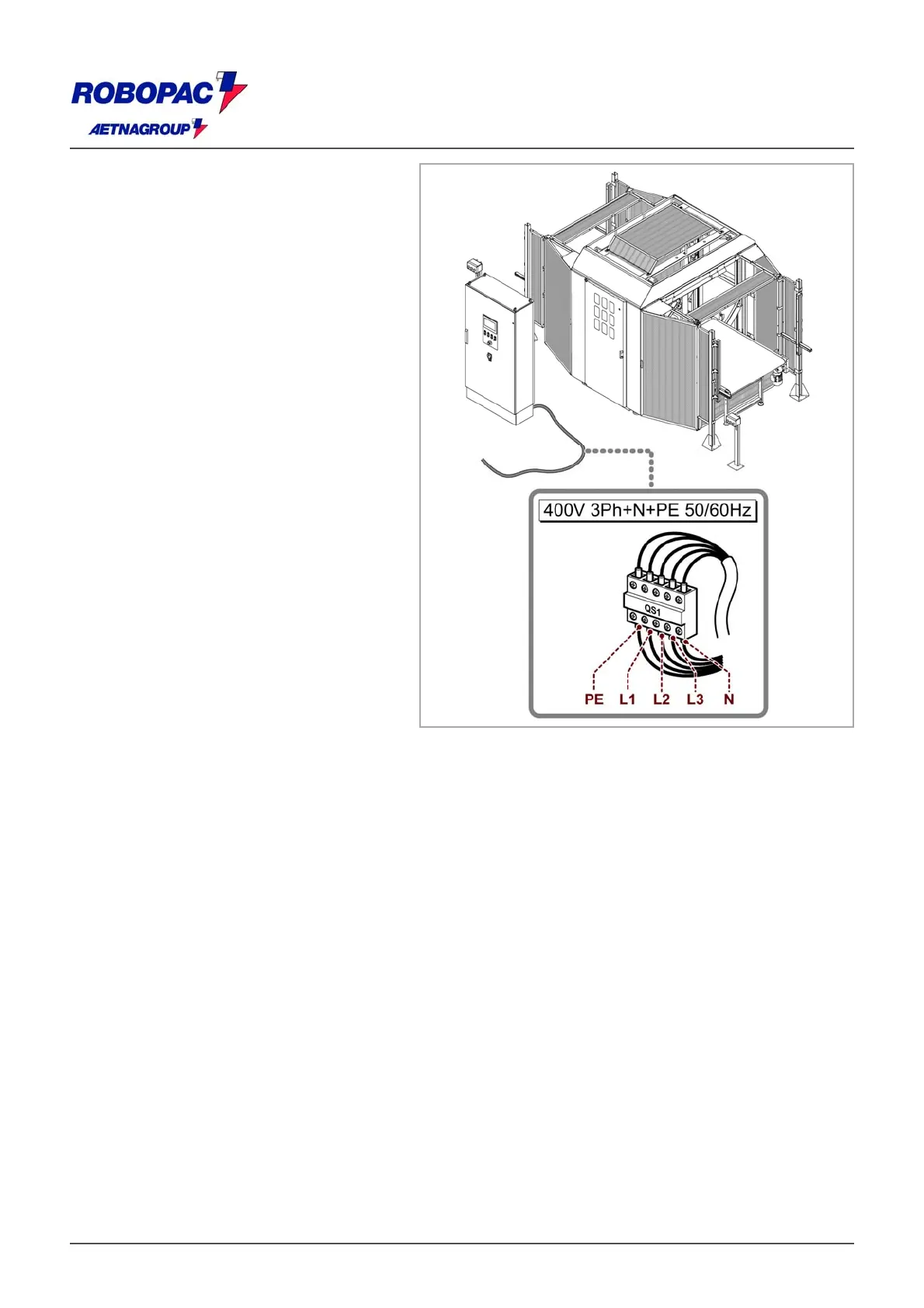

3. Connect the power cable as shown in the
figure.
Important
The earth wire (yellow and green) must
be connected to its earth terminal PE.
Refer to the wiring diagram given in the
machine powering page to check the
correct dimensions of the power cable
and protection device.
4. Use the main switch to start the
machine.
5. Press the Reset button.
