ORBIT 16
Rotating ring speed (max) RPM 70 50
Product infeed speed (max) m/min 19 26
Product infeed speed (min) m/min 3 5
Worktable height mm STD 825 optional 1150
3.7.1.PRODUCT SIZE
T
he dimensions (width and height) of the products that can be processed must be kept within the limit
s
marked on the chart.
T
he above-mentioned data are valid when the section is uniform for the whole len
g
th of the
p
roduct.
For best quality results, the production cross section should be as close as possible to the machine diameter.
For products that intersect the sketched areas, contact the manufacturer.

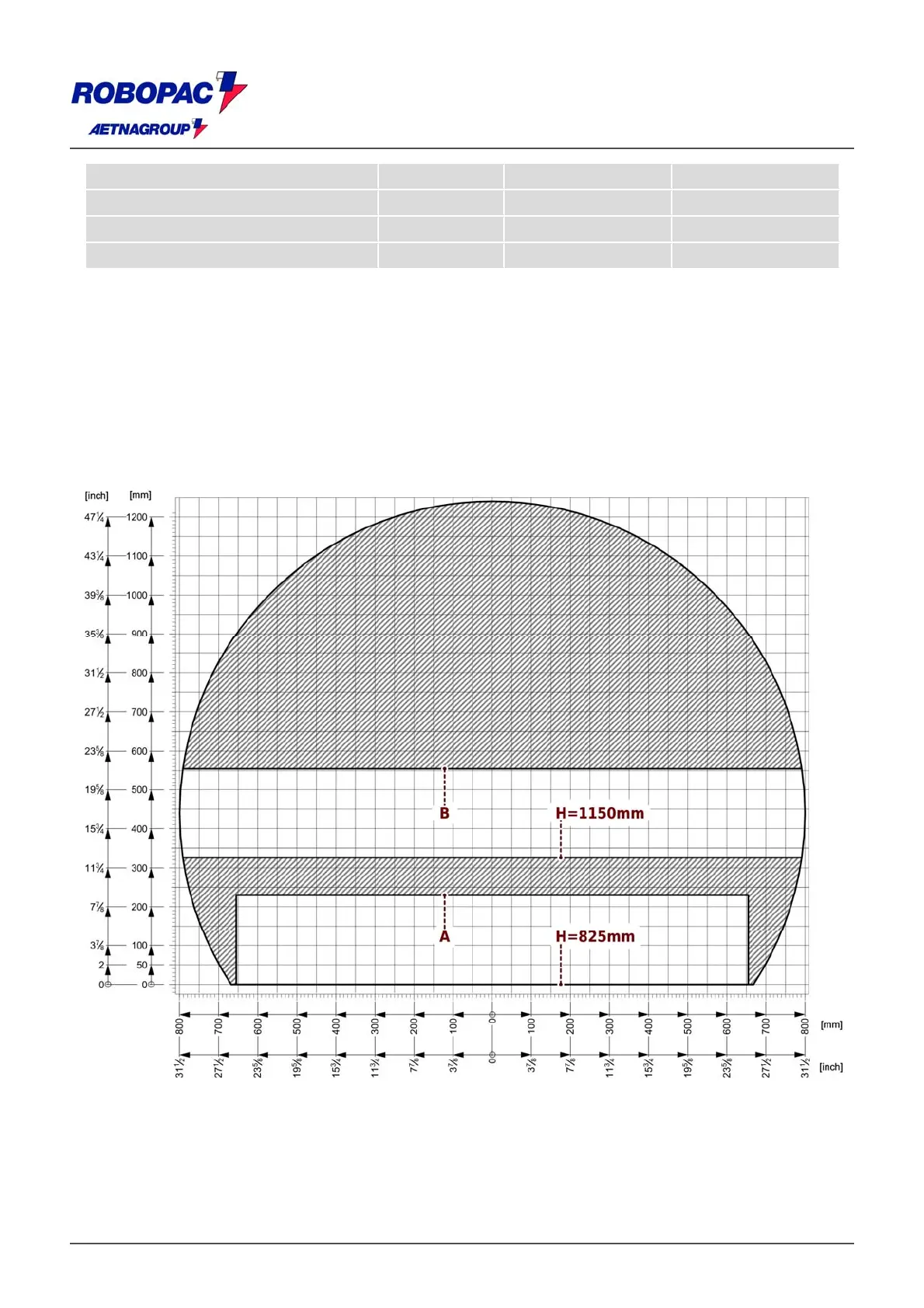

3.7.2.PROCESSABLE PRODUCTS SIZE (BASE GUARDS)
Key
H) Worktable
A
) Slot position with carriers W1100
B) Slot position with carriers W1400
Minimum workable dimensions (mm):
‒ for Wmin = 200 => Hmin = 150
