ORBIT 16
4. Place the machine in the area assigned
for assembly.
Important
It must be placed on a smooth, level
surface for assembly.

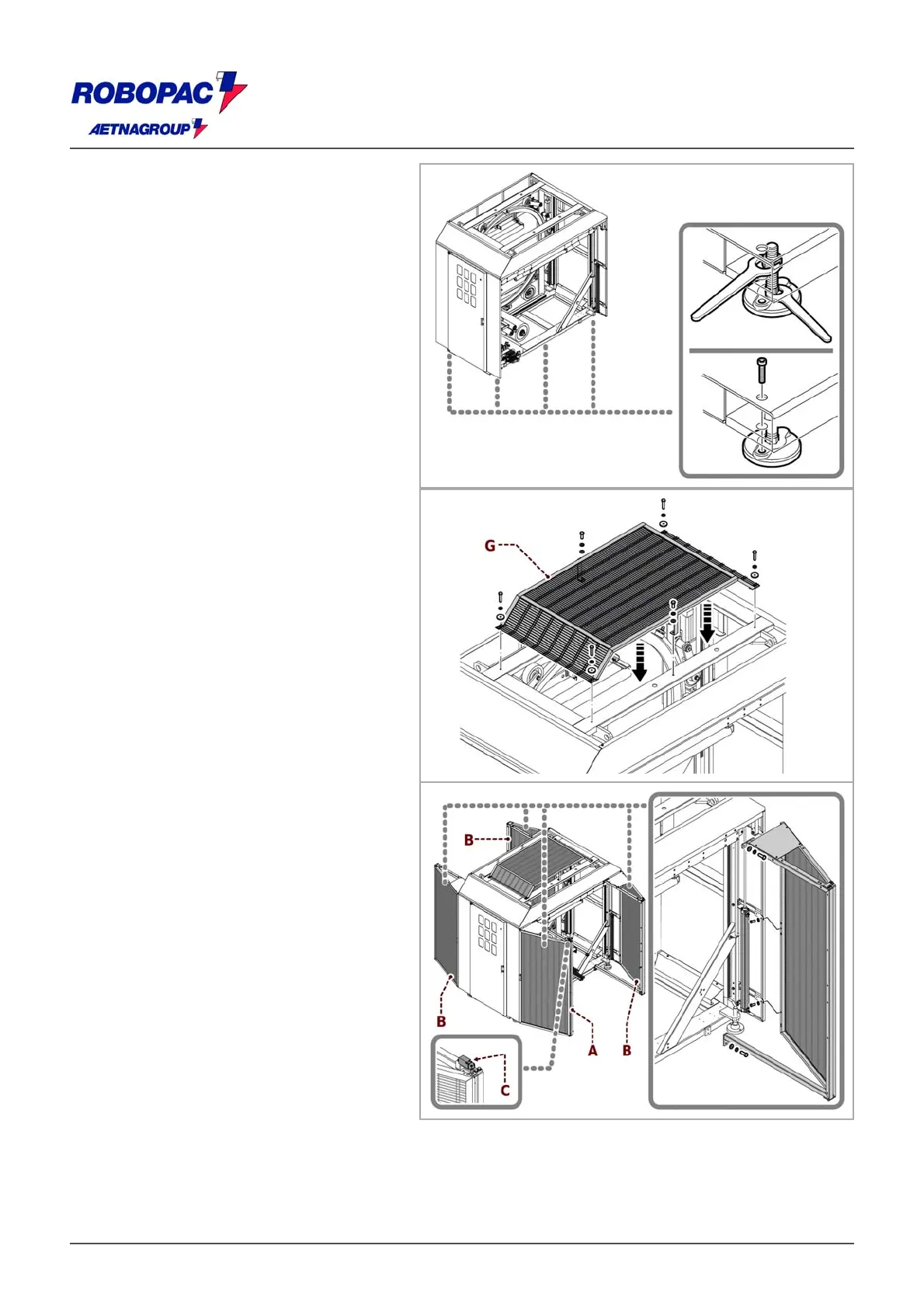

5. Use the support feet to level the
machine.
6. The machine can be fastened to the
floor, if required, by drilling holes in the
walls prepared on the support feet.
7. Install the guards (A - B - G).
8. Connect the connector of the safety
microswitch (C).
Danger - Warning
he machine is connected to the electrical panel with cables of L=1500.
Pay attention to the movement of the machine and make sure not to crush or break them.
