ORBIT 16

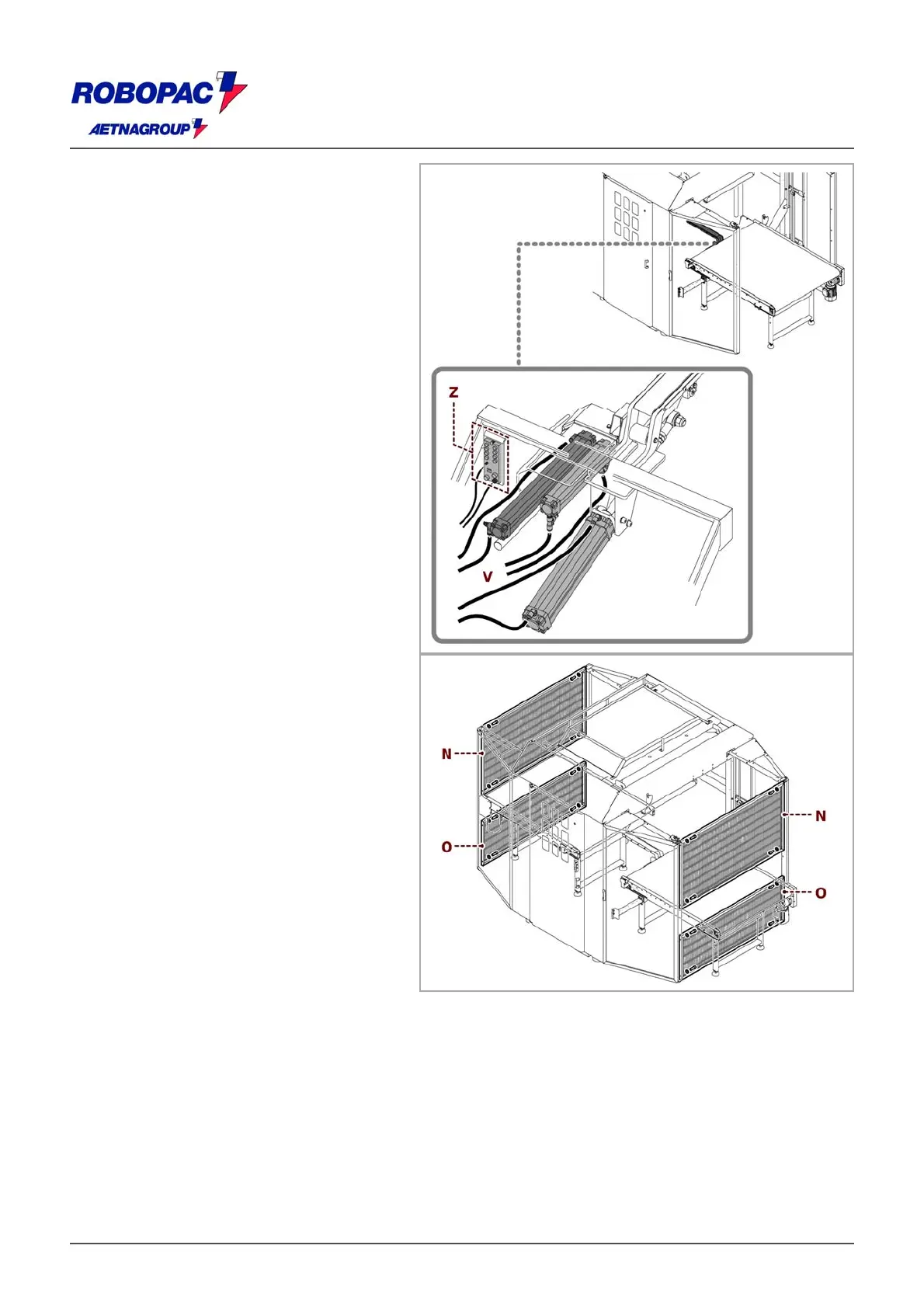

10. Connect the air hoses (V) to the
gripper/cutter/welder.
11. Connect the connectors (Z) of the
gripper/cutter/welder sensors.
12. Install the inlet and outlet guards (N)
and (O).
45/95
