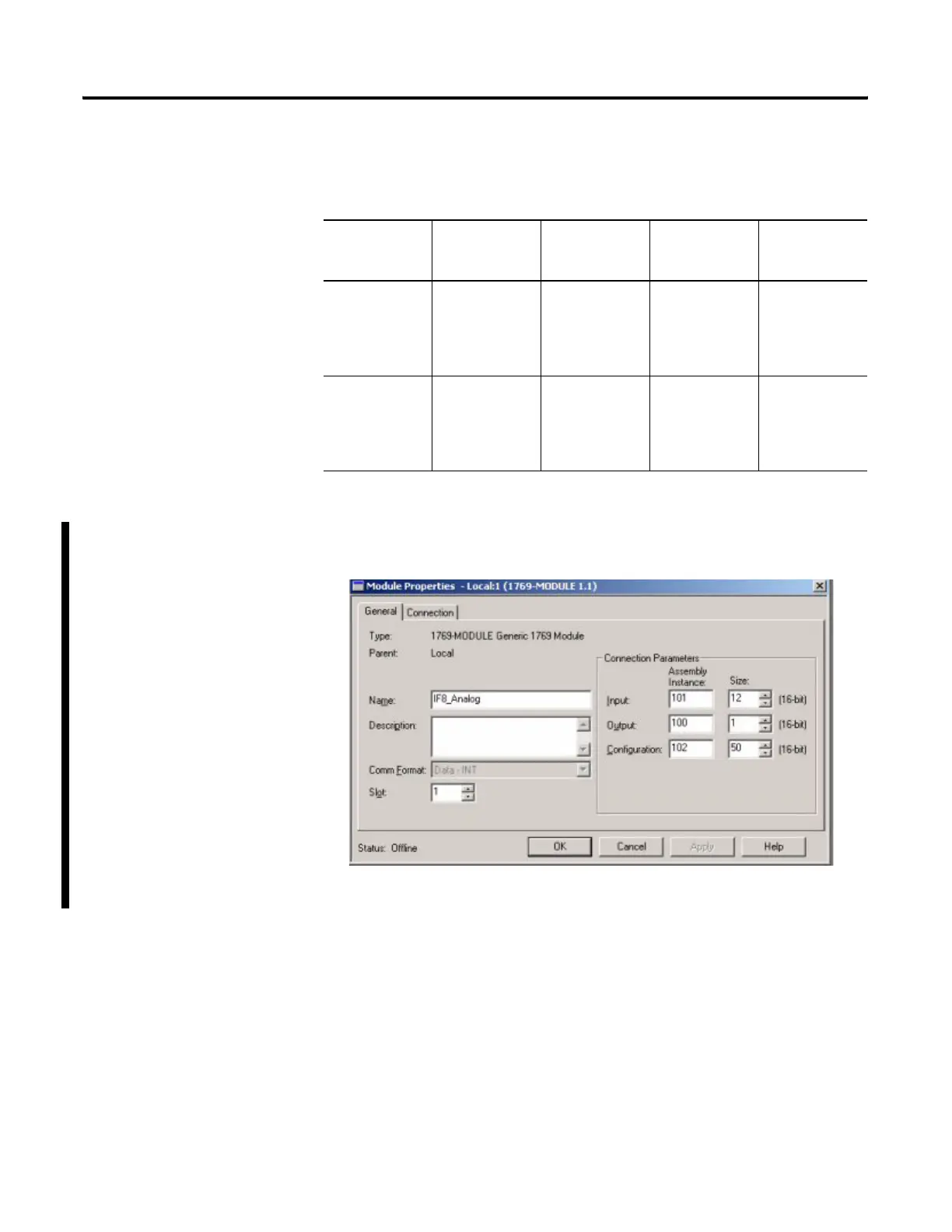

C-4 Configuration Using the RSLogix 5000 Generic Profile for CompactLogix Controllers
Use the following table for the “Comm Format”, “Assembly Instance” and
“Size” values for the 1769-IF8, -OF8C, and -OF8V modules if you have an
earlier version of RSLogix5000, version 15.
Note the Comm Format, Assembly Instance numbers and their associated
sizes for each analog I/O module type and enter them into the Generic
Profile.
1769 I/O
Modules
(1)
Comm Format Parameter Assembly
Instance
Size
(16-bit)
IF8 Input Data – INT Input
Output
Config
101
100
102
12
1
50
OF8C and OF8V Data – INT Input
Output
Config
101
100
102
11
9
64
(1)
1769-OF2 and -IF4 modules do not use the generic profile.
