Rockwell Automation Publication 20P-TG002B-EN-P - February 2018 21
Component Test Procedures Chapter 2

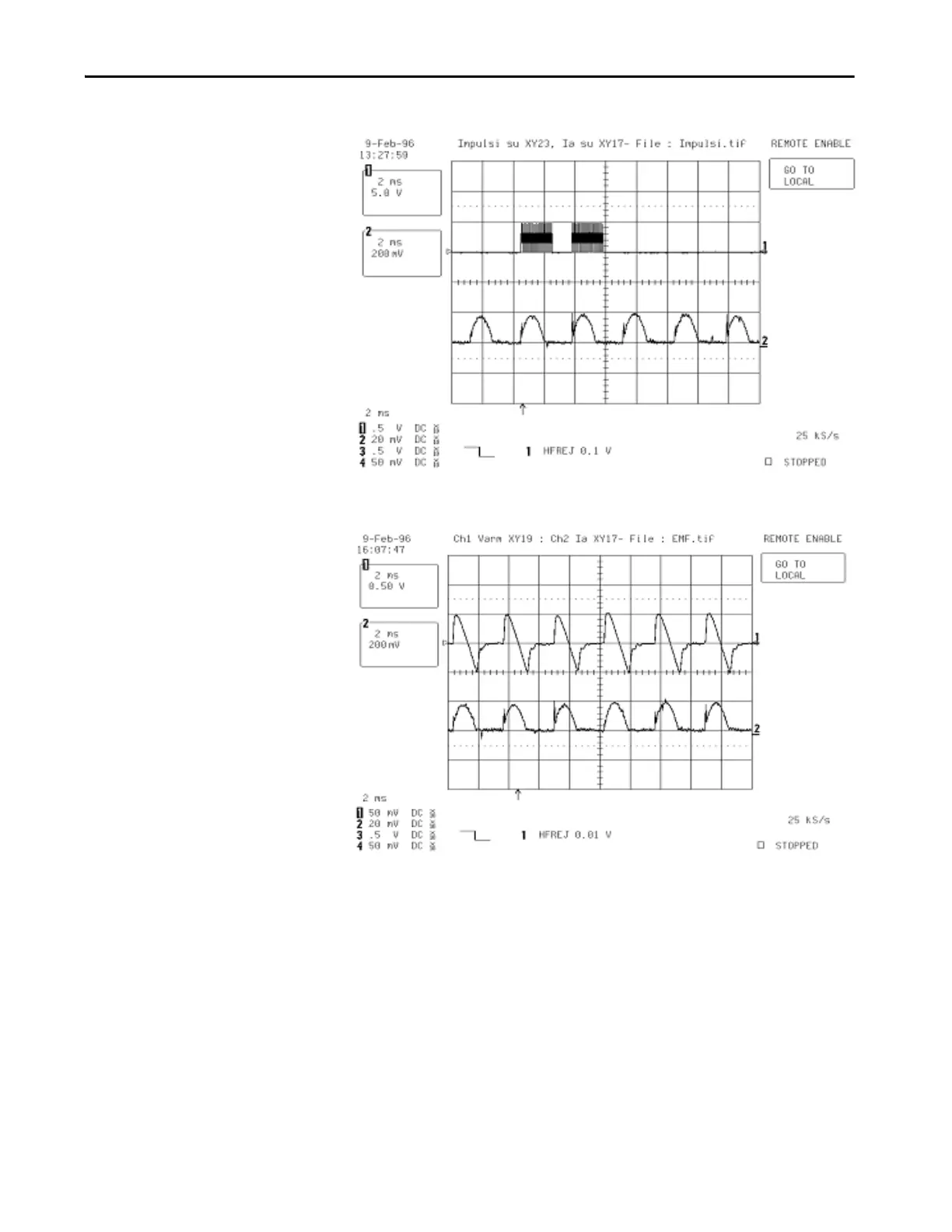

Figure 3 - Good SCR Gate Pulse and Armature Current Signals Example
Figure 4 - Good SCR Armature Voltage and Motor Current Signal Example
5 V
0 V
XY19
XY19
XY17
