Rockwell Automation Allen-Bradley PowerFlex 20P - Install the I;O Expansion Circuit Board

Rockwell Automation Publication 20P-TG002B-EN-P - February 2018 53
Part Replacement Procedures Chapter 3

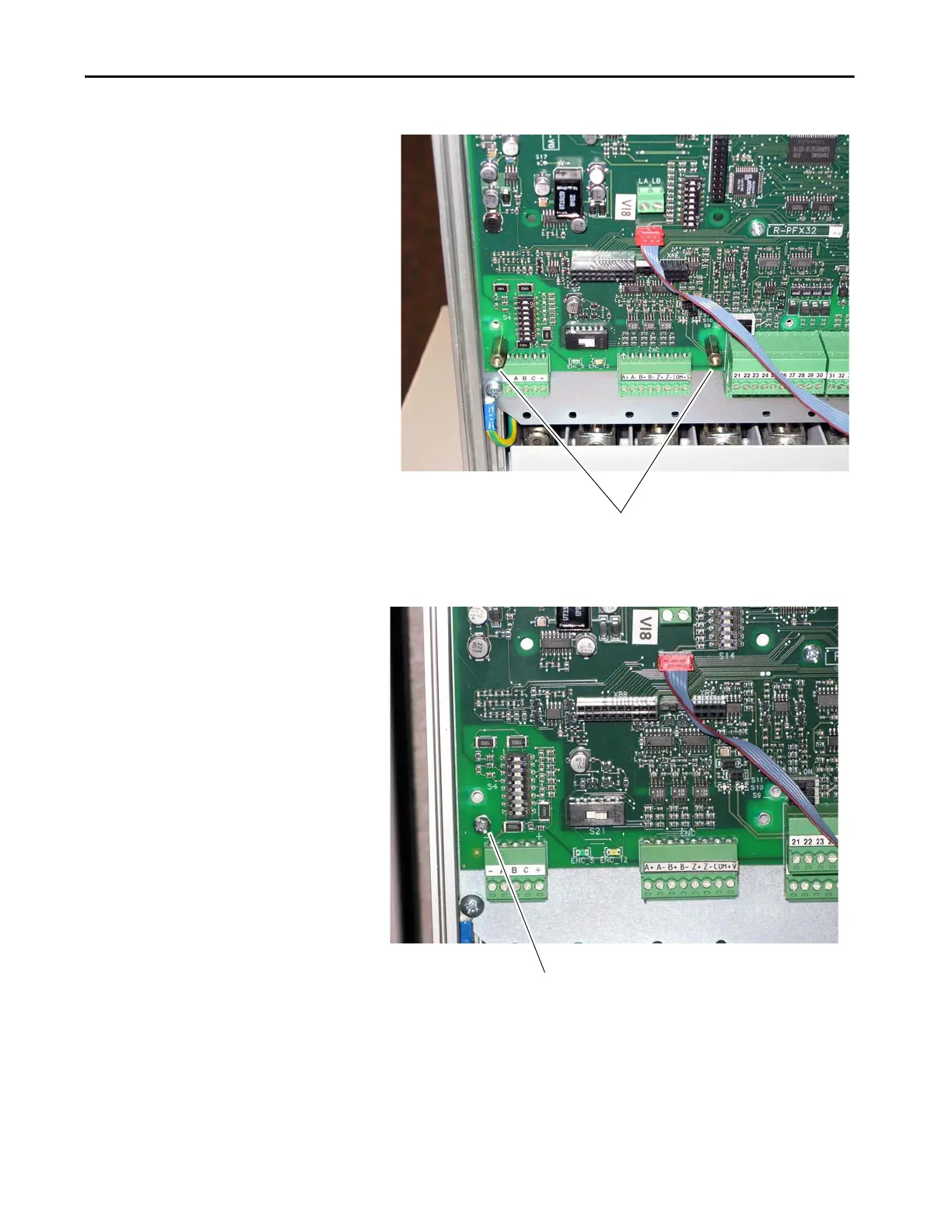

8. Remove the two stand-offs from the control board.
9. Install one screw in the lower left corner of the control board.
Install the I/O Expansion Circuit Board
Install the I/O expansion board in reverse order of removal.
8
Tightening torque:
1.0 N•m (8.9 lb•in)
9
Tightening torque:
1.0 N•m (8.9 lb•in)
