Rockwell Automation Allen-Bradley PowerFlex 20P - Install the DPI; HIM Assembly; Protective Cover Replacement; Remove the Protective Covers

Rockwell Automation Publication 20P-TG002B-EN-P - February 2018 43
Part Replacement Procedures Chapter 3

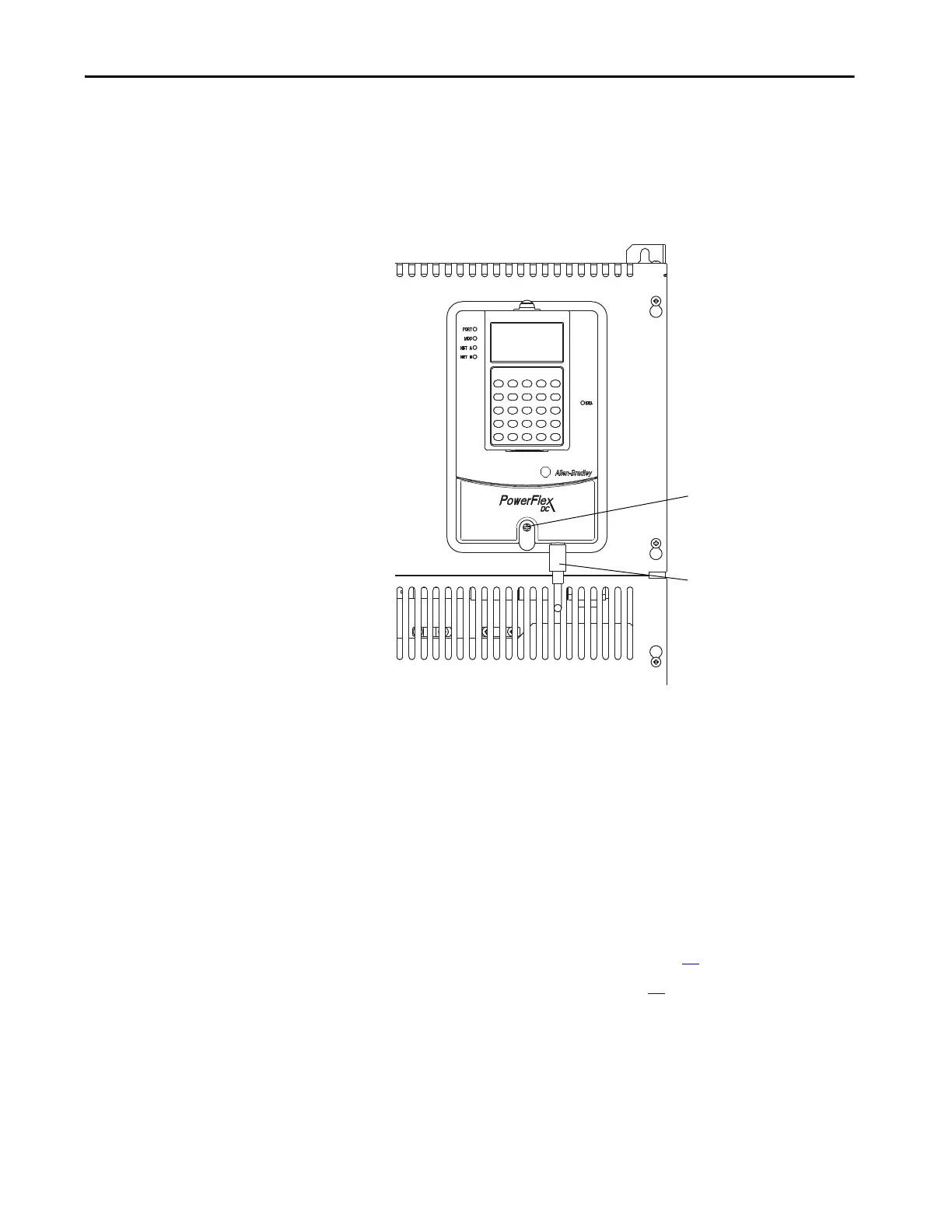

3. Disconnect the DPI cable from the HIM assembly.
4. Remove the screw that secures the DPI / HIM assembly to the drive.
5. Carefully remove the DPI / HIM assembly from the cover and
disconnect the cable from the DPI connector on the back side of the
assembly.
Install the DPI / HIM Assembly
Install the DPI / HIM assembly in reverse order of removal.
Protective Cover
Replacement
Remove the Protective Covers
Follow these steps to remove the protective covers.
1. Read the General Safety Precautions on page 10
.
2. Remove power from the drive (see page 42
).
4
3
Tightening torque:
0.8 N
•m (7 lb•in)
