58 Rockwell Automation Publication 20P-TG002B-EN-P - February 2018
Chapter 3 Part Replacement Procedures

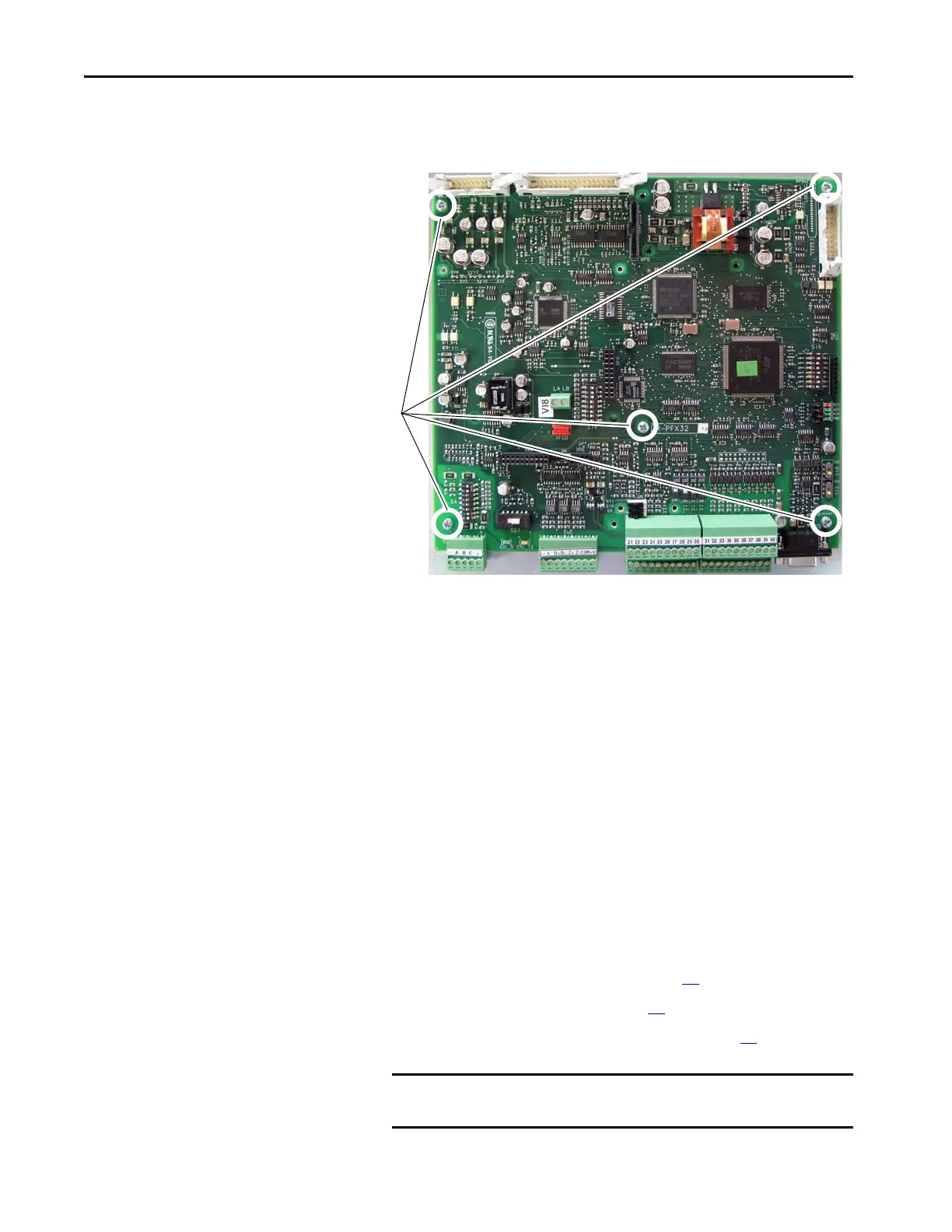

12. Remove the five screws that secure the control board to the control EMI
shield and remove the board.
Install the Control Circuit Board
Install the control board in reverse order of removal.
Verify that all DIP switches are set to the correct configuration based on
your recorded settings.
Control Electromagnetic
Interference Shield Removal
and Closure
Move the Control Electromagnetic Interference Shield
You must move (lower) the control electromagnetic interference (EMI) shield
that holds the control board in order to access other components within the
drive. Follow these steps to remove the control electromagnetic interference
(EMI) shield.
1. Read the General Safety Precautions on page 10
.
2. Remove power from the drive (see page 42
).
3. Remove the protective covers from the drive (see page 43
).
12
Tightening torque:
1.0 N•m (8.9 lb•in)
IMPORTANT Mark all connections and wires before removal to avoid incorrect
wiring during reassembly.
