Rockwell Automation Allen-Bradley PowerFlex 20P Hardware Service Manual

Rockwell Automation Publication 20P-TG002B-EN-P - February 2018 59
Part Replacement Procedures Chapter 3

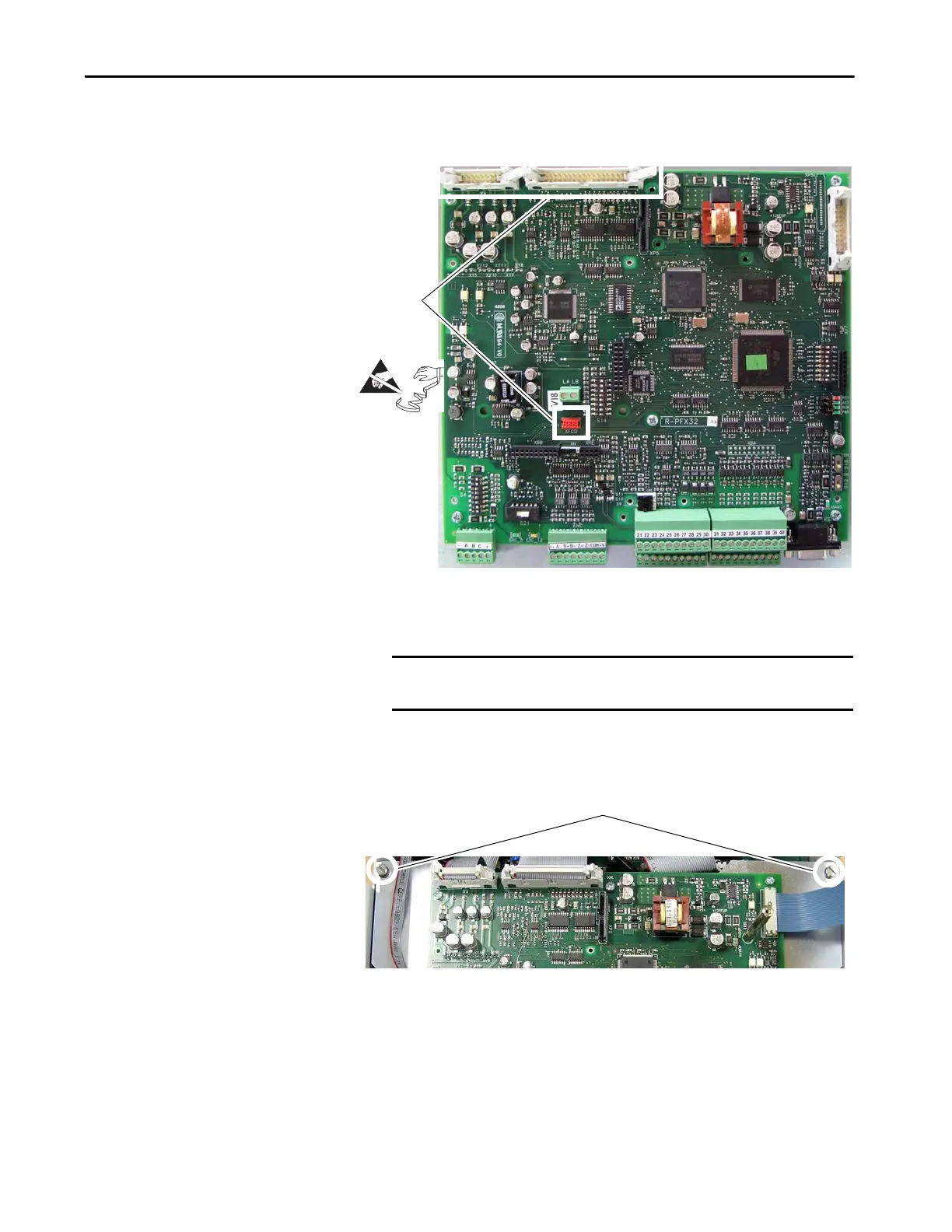

4. Carefully disconnect the cables from connectors XA, XR and XFCD on
the control board.
5. Loosen the two captive screws at the top of the control EMI shield and
lower shield.
Close the Control EMI Shield in the Service Position
Close the control EMI shield in reverse order.
IMPORTANT If the drive is not in a vertical position, the control EMI shield will
not remain open without a means of restraint.
4
=
5
