Rockwell Automation Publication 20P-TG002B-EN-P - February 2018 75
Part Replacement Procedures Chapter 3

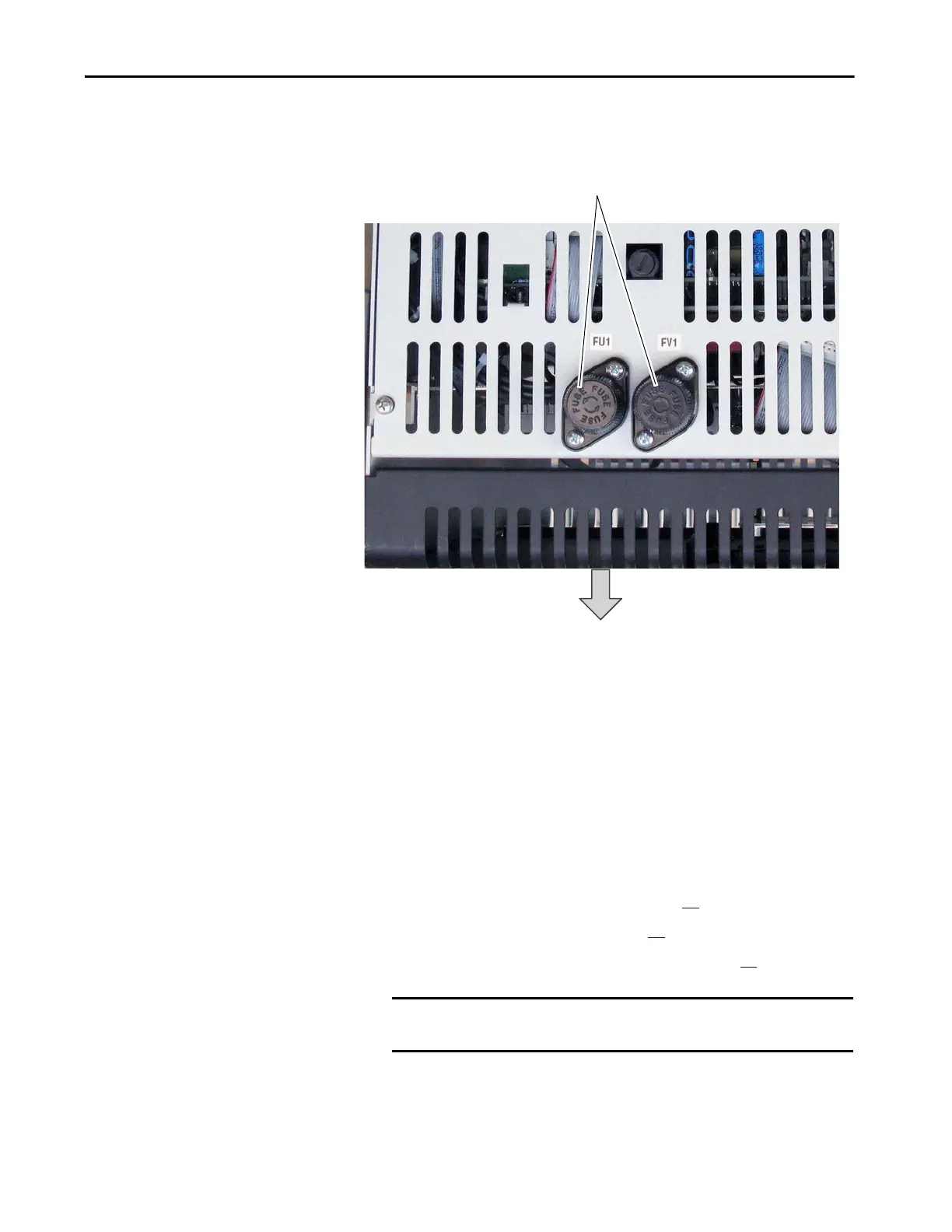

3. On the top of the drive, unscrew the fuse holders and remove the fuses
from the holders.
Install the Field Circuit Fuses
Install the field circuit fuses in the reverse order of removal.
Field Circuit Board
Replacement
Remove the Field Circuit Board
Follow these steps to remove field circuit board.
1. Read the General Safety Precautions on page 10
.
2. Remove power from the drive (see page 42
).
3. Remove the protective covers from the drive (see page 43
).
3
Front of Drive
Top view of Drive
IMPORTANT Mark all connections and wires before removal to avoid incorrect
wiring during reassembly.
