Rockwell Automation Publication 20P-TG002B-EN-P - February 2018 93
Part Replacement Procedures Chapter 3

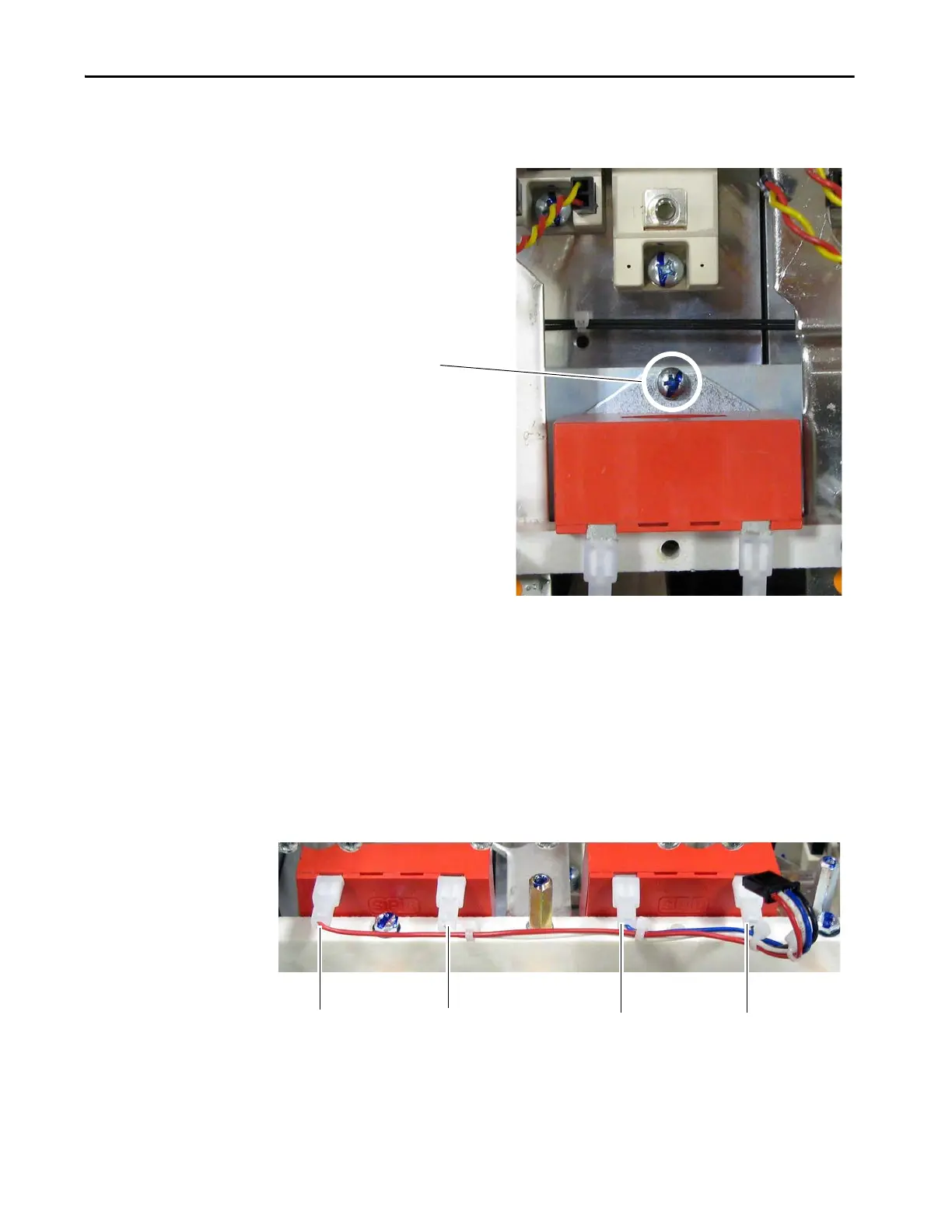

11. Remove the screw and washer that secures each of the AC current
transducers to the drive frame and remove the AC current transducers.
Install the AC Current Transducers
Install the AC current transducers in reverse order of removal.
• Note the color and location of each of the four wires connected to the
AC current transducers to ensure that each wire is properly connected
during installation. Use cable ties to bundle wires as shown below.
11
Red wire White wire Blue wire Black wire
