48 Rockwell Automation Publication 20P-TG002B-EN-P - February 2018
Chapter 3 Part Replacement Procedures
Resolver Feedback and
Interface Circuit Board
Replacement

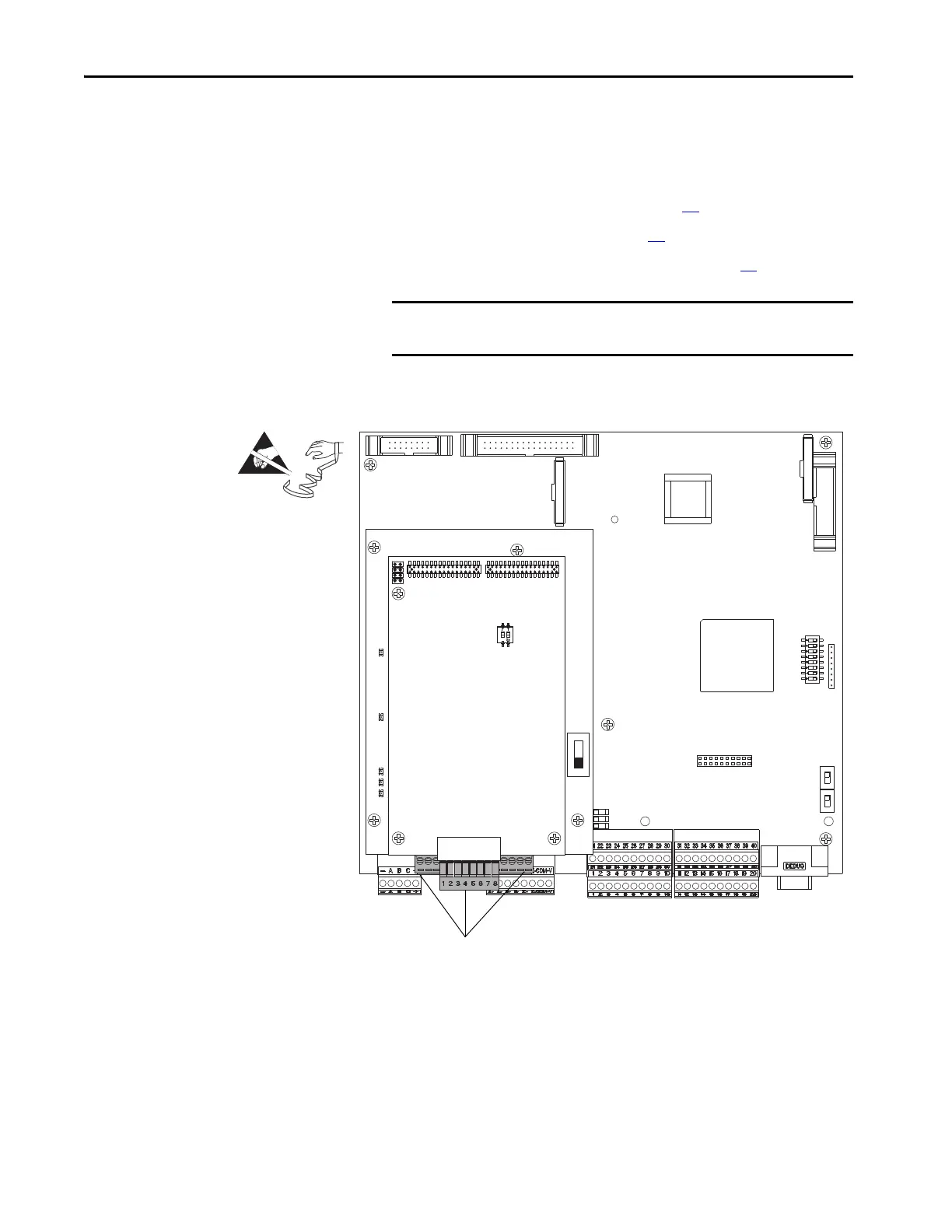

Remove the Resolver Feedback and Interface Circuit Boards
Follow these steps to remove the resolver feedback and interface circuit boards.
1. Read the General Safety Precautions on page 10
.
2. Remove power from the drive (see page 42
).
3. Remove the protective covers from the drive (see page 43
).
4. Disconnect the plug-in terminal blocks from the resolver feedback and
resolver interface boards.
IMPORTANT Mark all connections and wires before removal to avoid incorrect
wiring during reassembly.
=
S15
XR
XA
XP3
P2 P3
S2
XRE
S1
TB1 TB2
P4
P2 P3
P1
S1
To Next Page
