Rockwell Automation Publication 20P-TG002B-EN-P - February 2018 99
Part Replacement Procedures Chapter 3

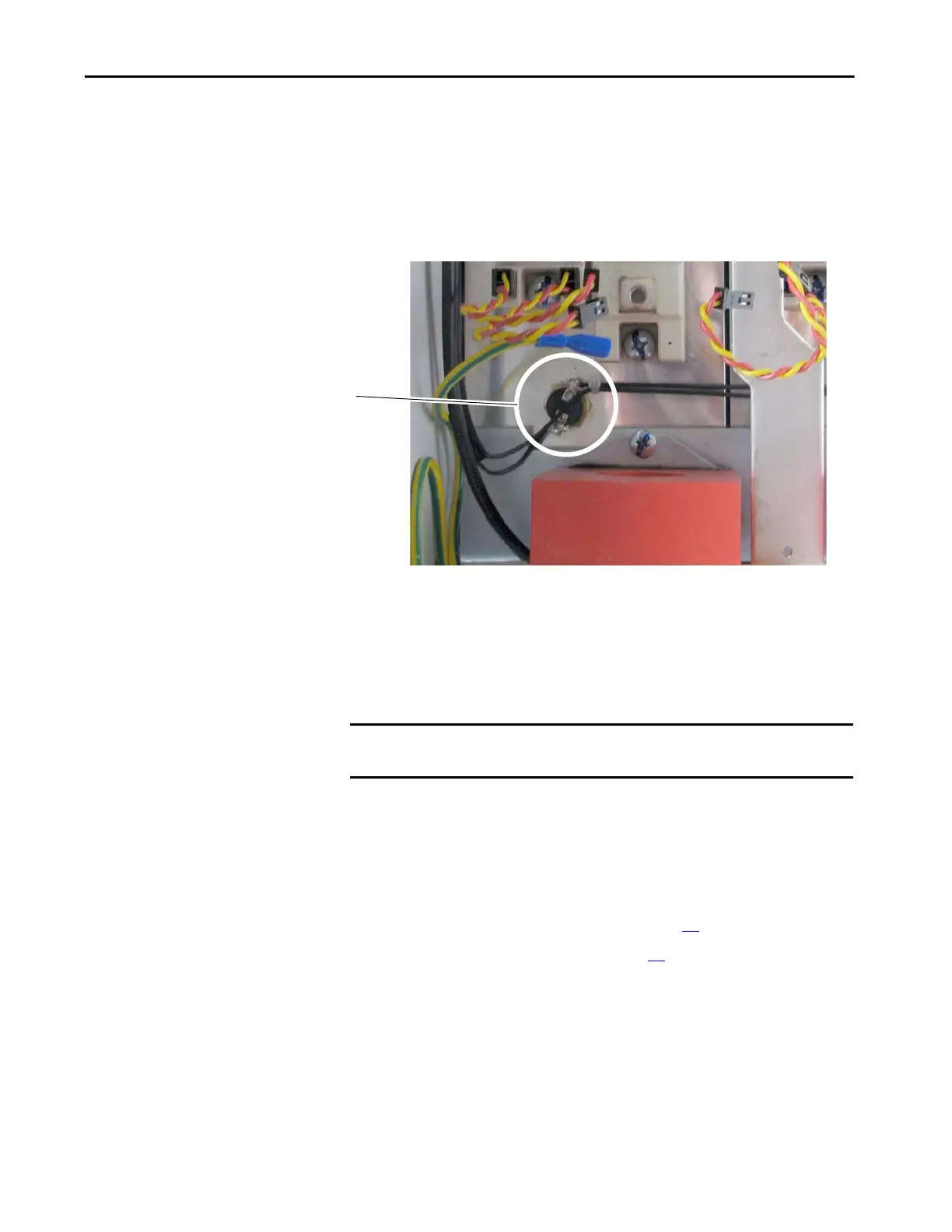

Remove the Bimetal Thermostats
1. Remove the solder from the connections on the two leads of the bimetal
thermostats.
2. Remove the bimetal thermostats from the heatsinks by unscrewing them
at the base.
Install the Bimetal Thermostats
Install the bimetal thermostats in reverse order of removal.
Cooling Fan Replacement
Remove the Cooling Fans
Follow these steps to remove the cooling fans.
1. Read the General Safety Precautions on page 10
.
2. Remove power from the drive (see page 42
).
1 and 2
Regenerative Drive Shown
IMPORTANT Thermal grease must be applied to the bottom of the bimetal thermostats
before securing them to the heatsink.
To Next Page
