Rockwell Automation Allen-Bradley PowerFlex 20P Hardware Service Manual

98 Rockwell Automation Publication 20P-TG002B-EN-P - February 2018
Chapter 3 Part Replacement Procedures
Remove the Bus Bars from a Non-Regenerative Drive

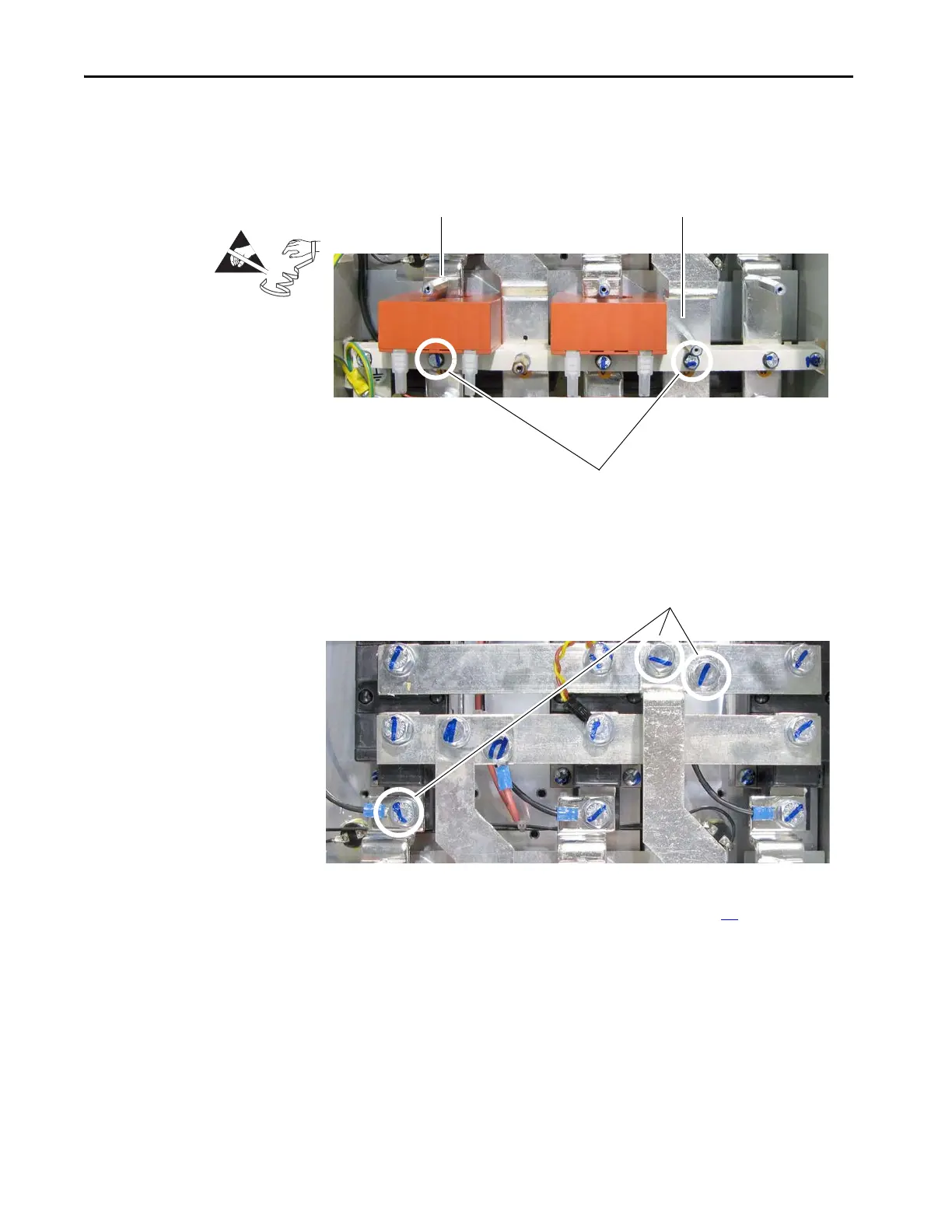

12. Remove the three bolts and washers that secure the U Phase and D
power terminals to the isolation bar.
13. Remove the bolts and washers that secure the wires and bus bars to the
U phase SCR Module and D power terminal and remove the bus bars.
Continue with Remove the Bimetal Thermostats on page 99
.
=
12
Non-Regenerative Drive
U Phase Terminal
D Terminal
Non-Regenerative Drive
13
