Rockwell Automation Allen-Bradley PowerFlex 20P Hardware Service Manual

Rockwell Automation Publication 20P-TG002B-EN-P - February 2018 97
Part Replacement Procedures Chapter 3

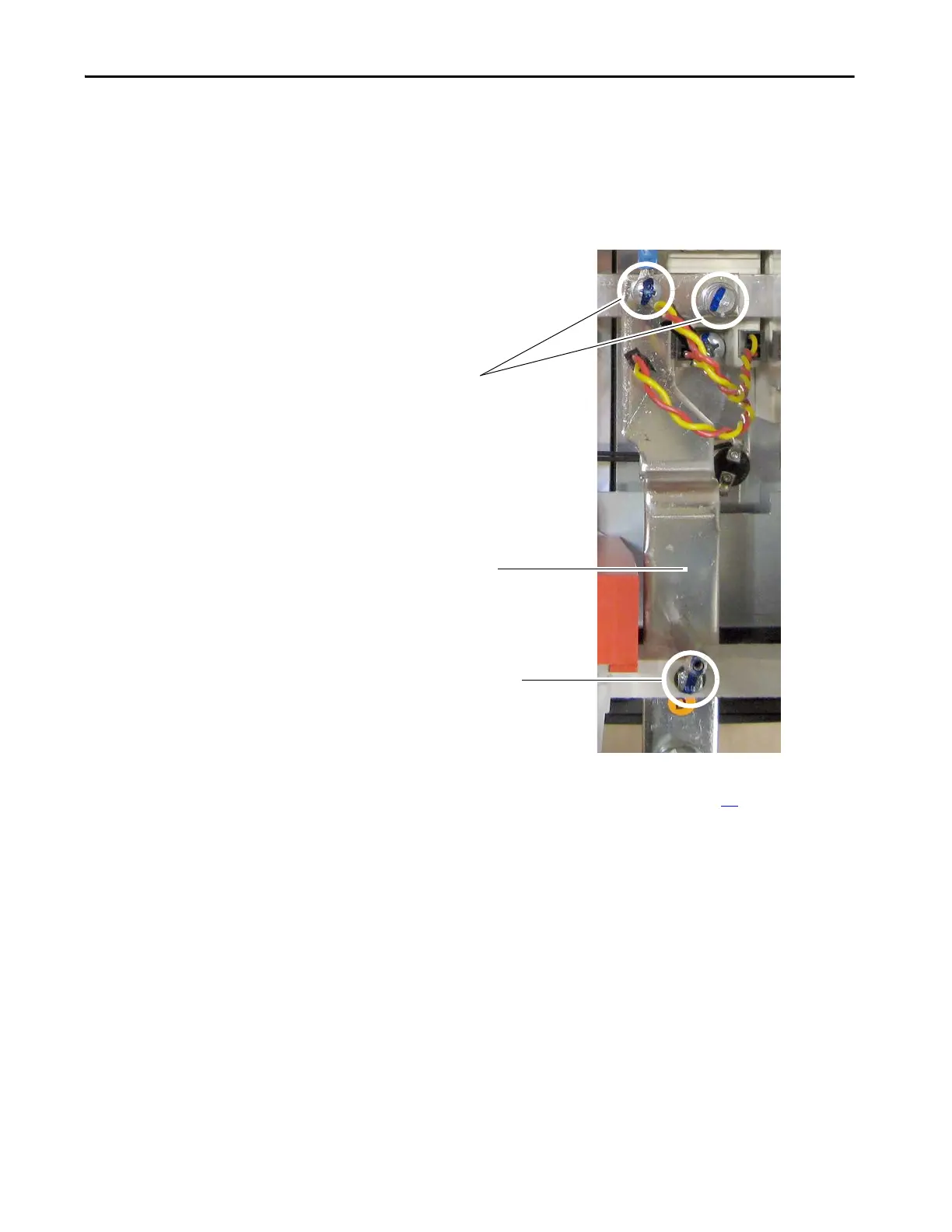

10. Remove the bolt and washers that secure the D terminal bus bar to the
terminal isolation bar.
11. Remove the screw and washer that secures the wire to the bus bar and
the bolt and washer that secures the U phase bus bar to the SCR module
and remove the bus bar.
Continue with Remove the Bimetal Thermostats on page 99
.
10
11
11
