Chapter 3 Part Replacement Procedures
Communication Adapter and
Electromagnetic
Interference Shield
Replacement
Remove the Communication Adapter and Electromagnetic
Interference Shield
Follow these steps to remove the communication adapter and electromagnetic
interference (EMI) shield.
1. Read the General Safety Precautions on page 10
.
2. Remove power from the drive (see page 42
).
3. Remove the protective covers from the drive (see page 43
).
4. Disconnect the interface cable from the communication adapter and set
it aside.
5. Disconnect any network cables from the adapter and set them aside.

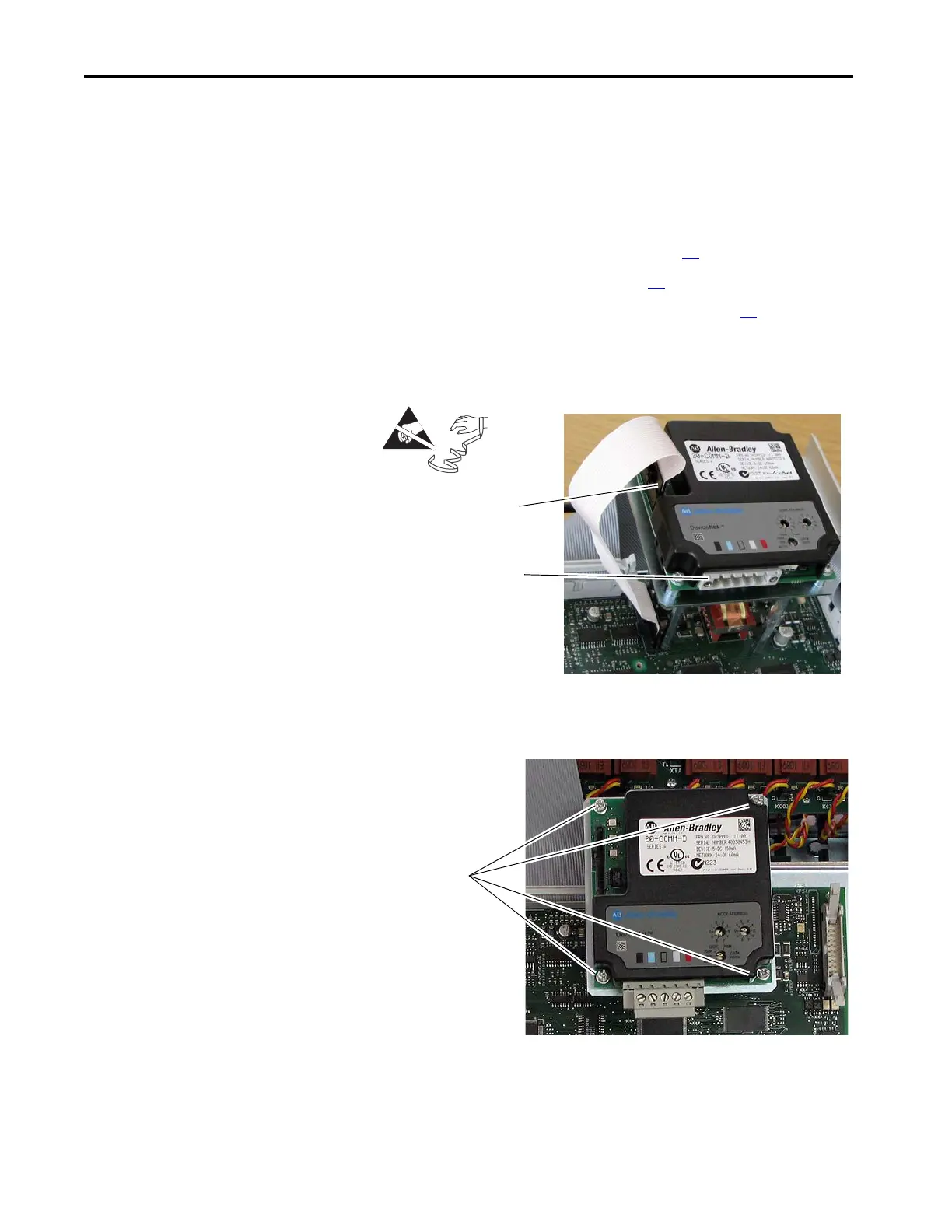

6. Remove the four screws that secure the communication adapter to the
electromagnetic interference (EMI) shield and remove the adapter.
4
5
=
6
Tightening torque:
0.9 N
•m (8.0 lb•in)
