Rockwell Automation Allen-Bradley PowerFlex 20P Hardware Service Manual

Rockwell Automation Publication 20P-TG002B-EN-P - February 2018 33
Component Test Procedures Chapter 2

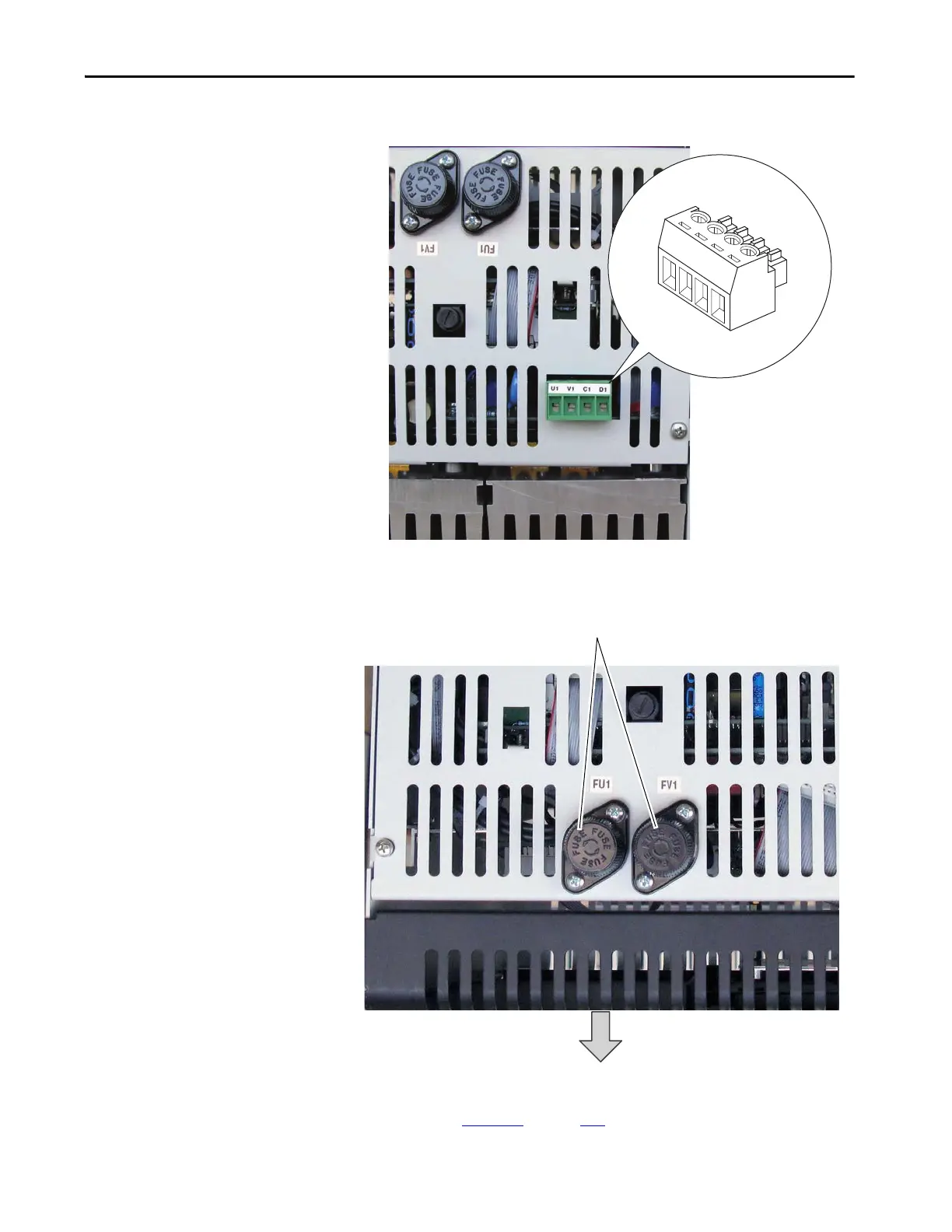

Figure 10 - Field Terminal Block Location
Figure 11 - Field Fuses Location
7. Remove the cable from connector XP on the pulse transformer circuit
board. See Figure 25
on page 114 for connector location.
V1
C1
D1
U1
Top of Drive
Unscrew fuse holders and remove fuses
Front of Drive
Top view of Drive
